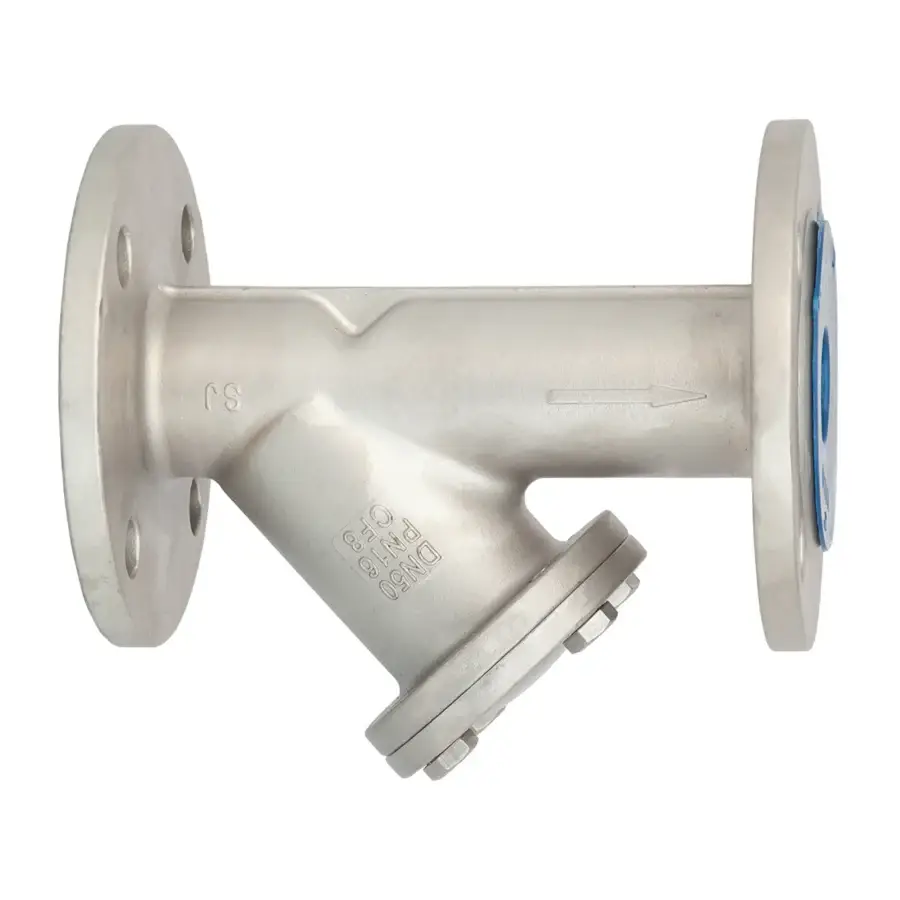

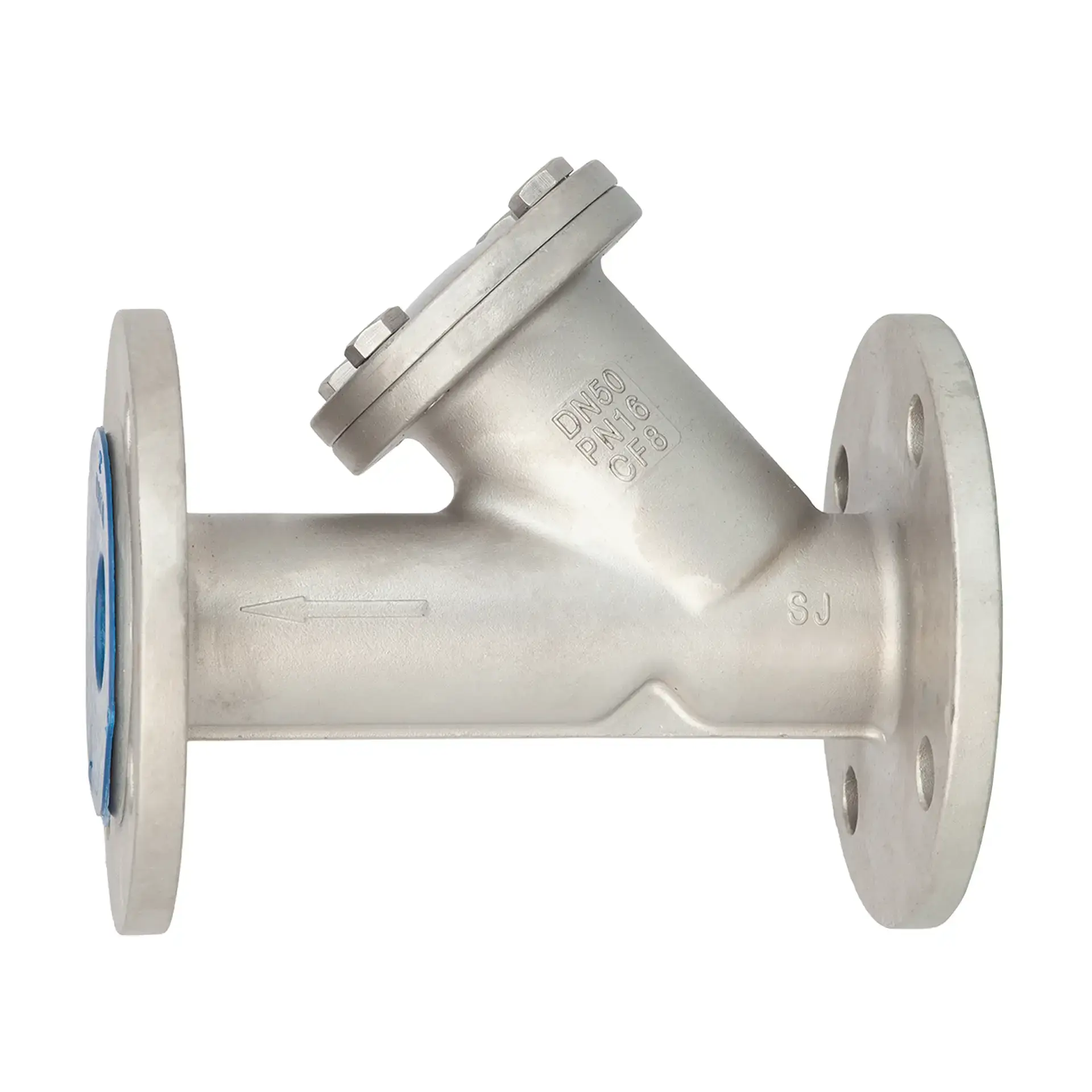

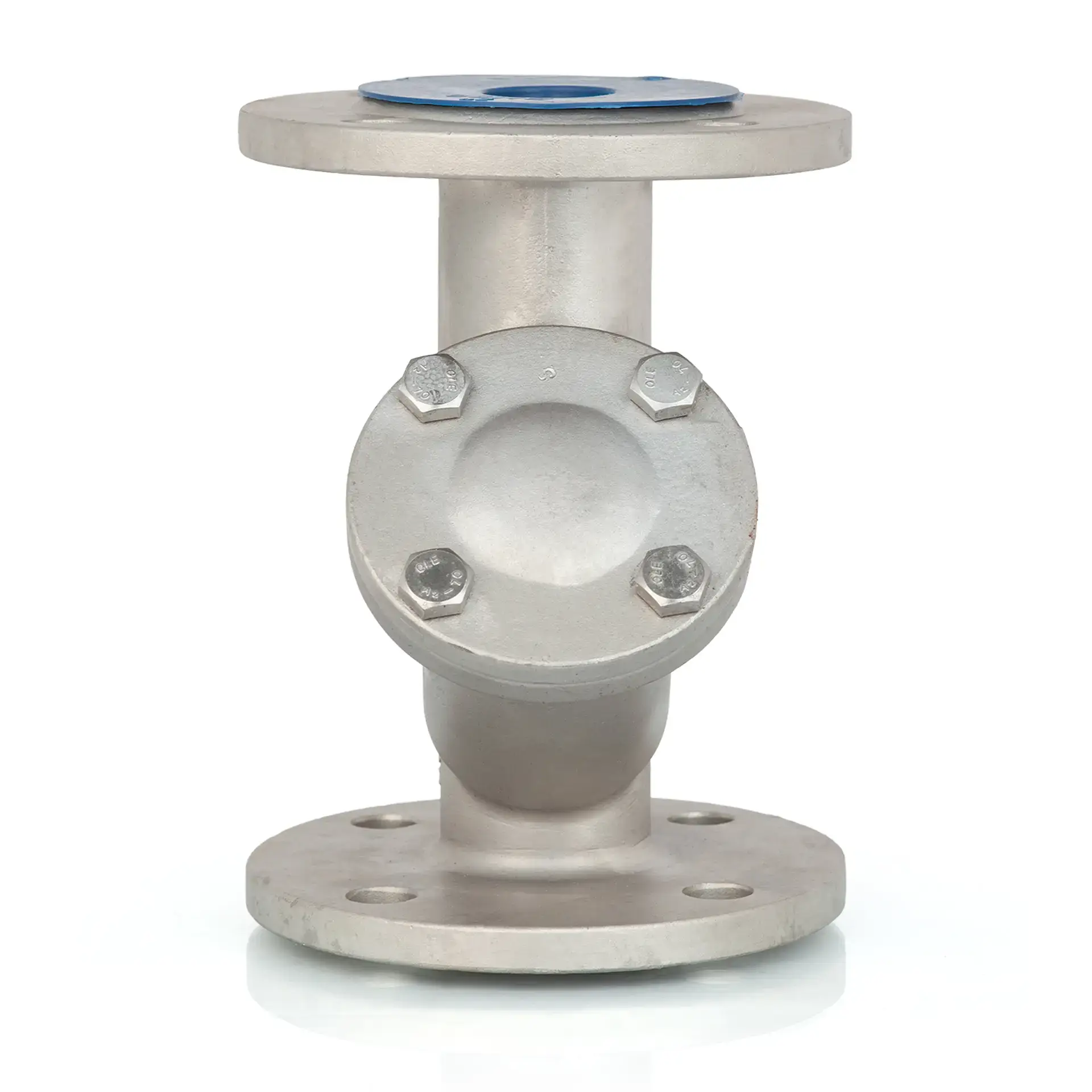

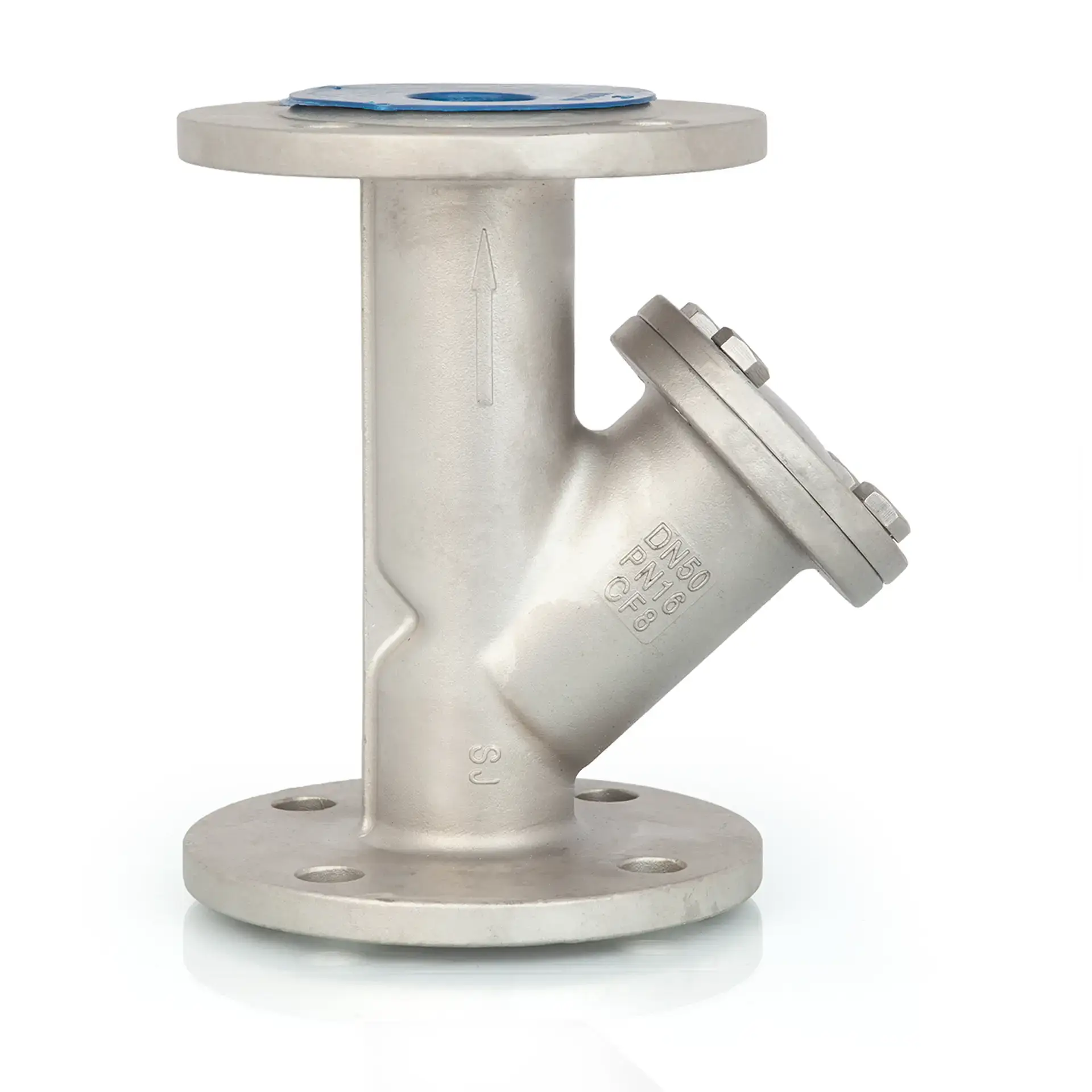

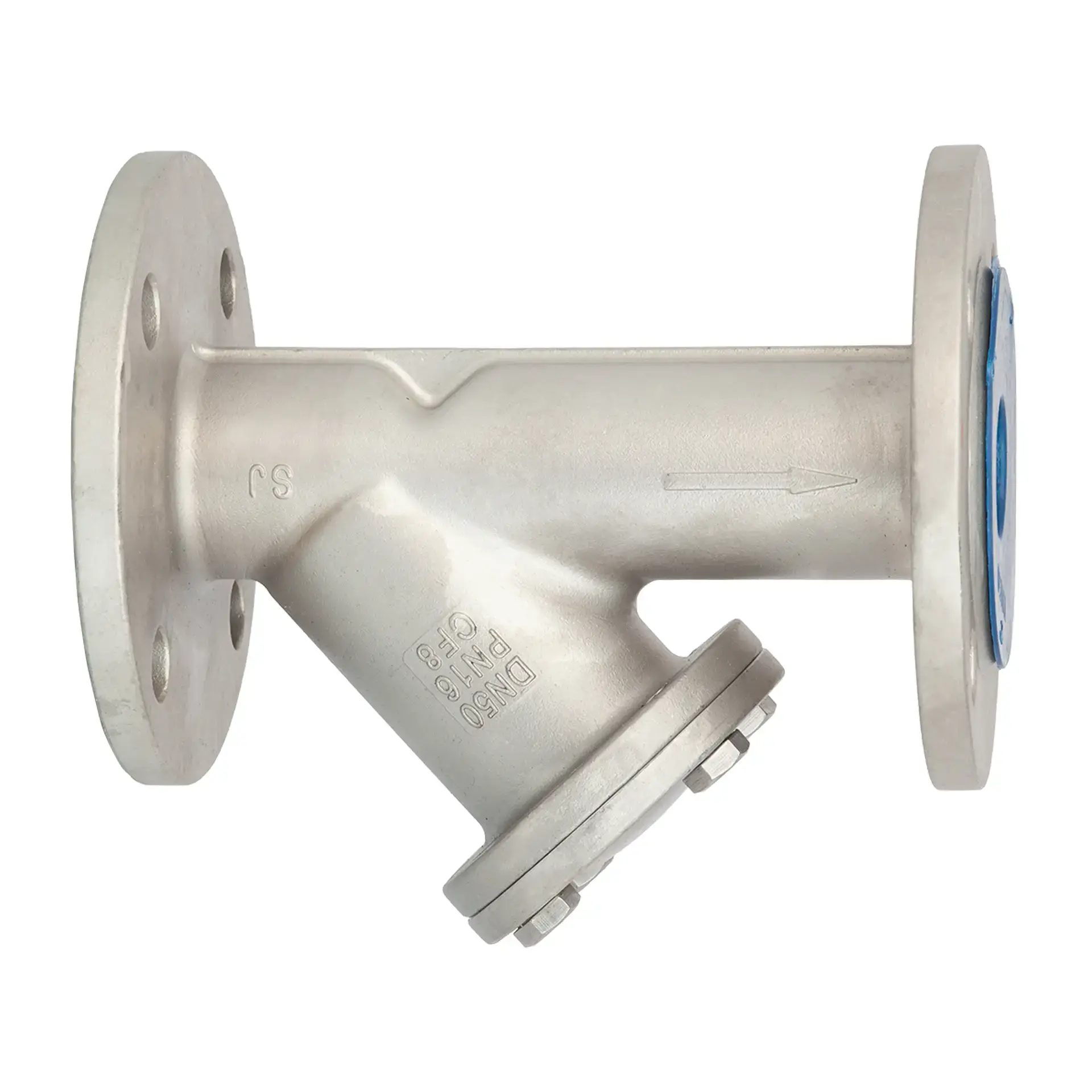

UNOX Y-Type Stainless Steel Flanged Strainer

UNOX Y-Type Stainless Steel Flanged Strainer

The UNOX Y-Type Stainless Steel Flanged Strainer is a heavy-duty pipeline filter designed to safeguard pumps, valves, heat exchangers, and other vital equipment by effectively removing solid particles from liquids, steam, or gas. Built entirely from AISI 304 or AISI 316 stainless steel, it offers superior corrosion resistance and long service life in demanding industrial environments such as chemical processing, steam systems, water treatment, food & beverage, and HVAC applications.

The strainer’s flanged design (ISO/EN 1092-1, PN16) ensures secure, leak-free connections and easy installation in high-pressure pipelines. Its Y-shaped configuration minimizes pressure drop and allows convenient cleaning: simply remove the bottom cap to access and clean the stainless steel mesh filter without dismantling the entire pipeline. Electro-polished internal surfaces further reduce friction and contamination risk, making it ideal for both sanitary and industrial processes.

Key performance ratings include a maximum operating pressure of PN16 (≈232 psi) and a maximum temperature of 200 °C (≈392 °F), depending on gasket selection. The precision stainless steel mesh guarantees reliable particle retention and long-term filtration performance, even under high-flow or high-temperature conditions.

Technical Features

• Body & Cap: AISI 304 / AISI 316 stainless steel
• Screen / Filter: Stainless steel mesh, removable for easy maintenance
• Connection: Flanged to ISO 7005-1 / EN 1092-1, PN16 (~232 psi)
• Maximum Operating Temperature: Up to 200 °C (~392 °F)
• Finish: Electro-polished interior for low friction and hygiene
• Design: Y-type construction for low pressure loss and quick cleaning

With its rugged stainless steel construction, easy-clean flanged design, and reliable high-temperature and pressure performance, the UNOX Y-Type Stainless Steel Flanged Strainer is the ideal solution for protecting sensitive downstream equipment and ensuring continuous, trouble-free operation in critical industrial piping systems.
