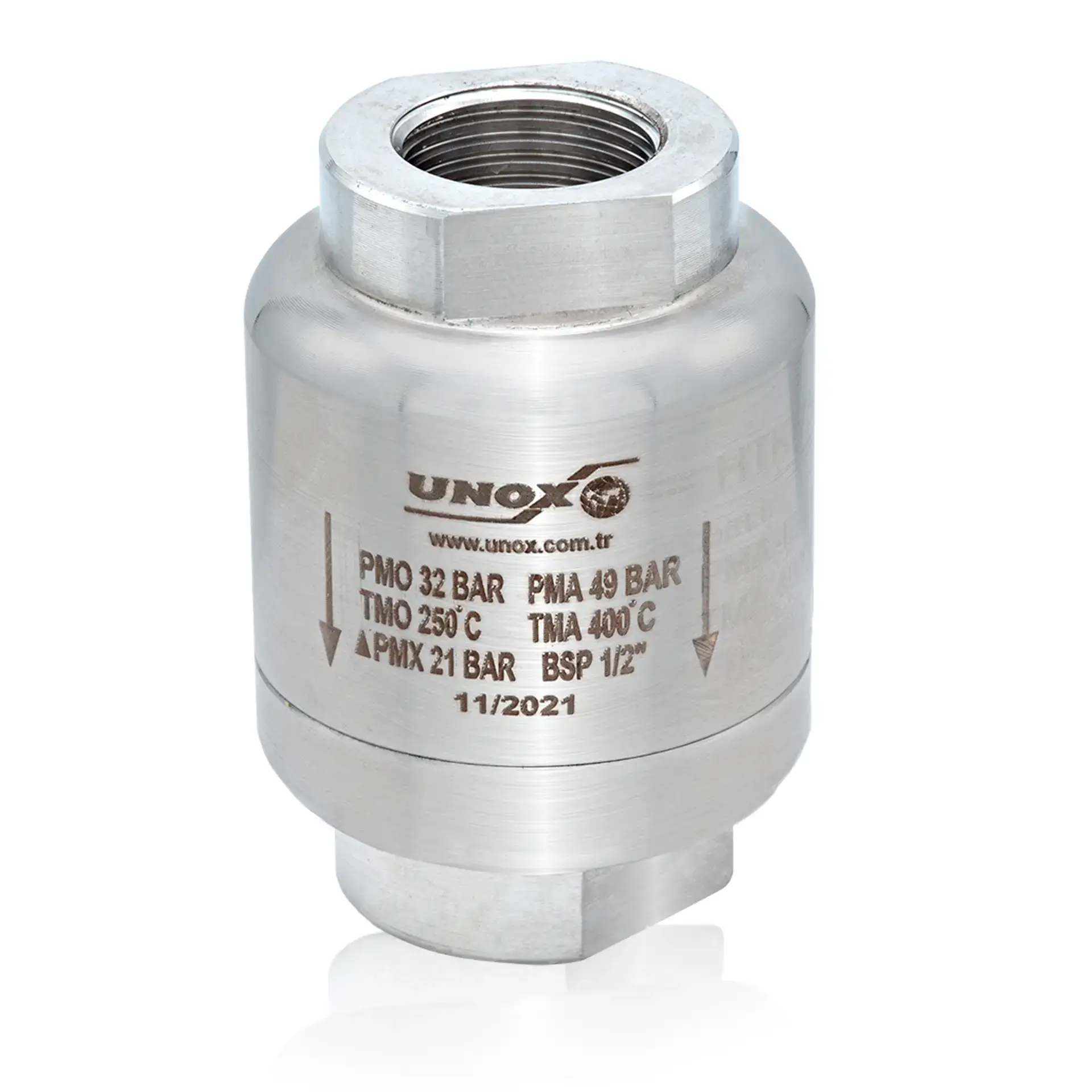

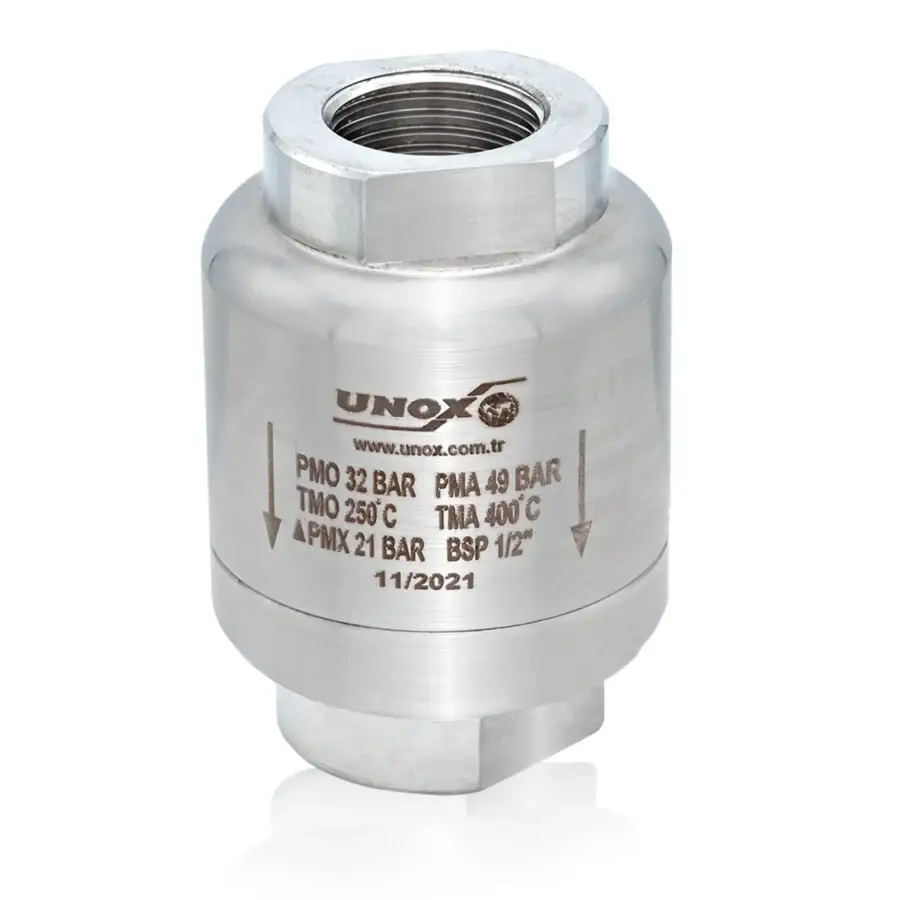

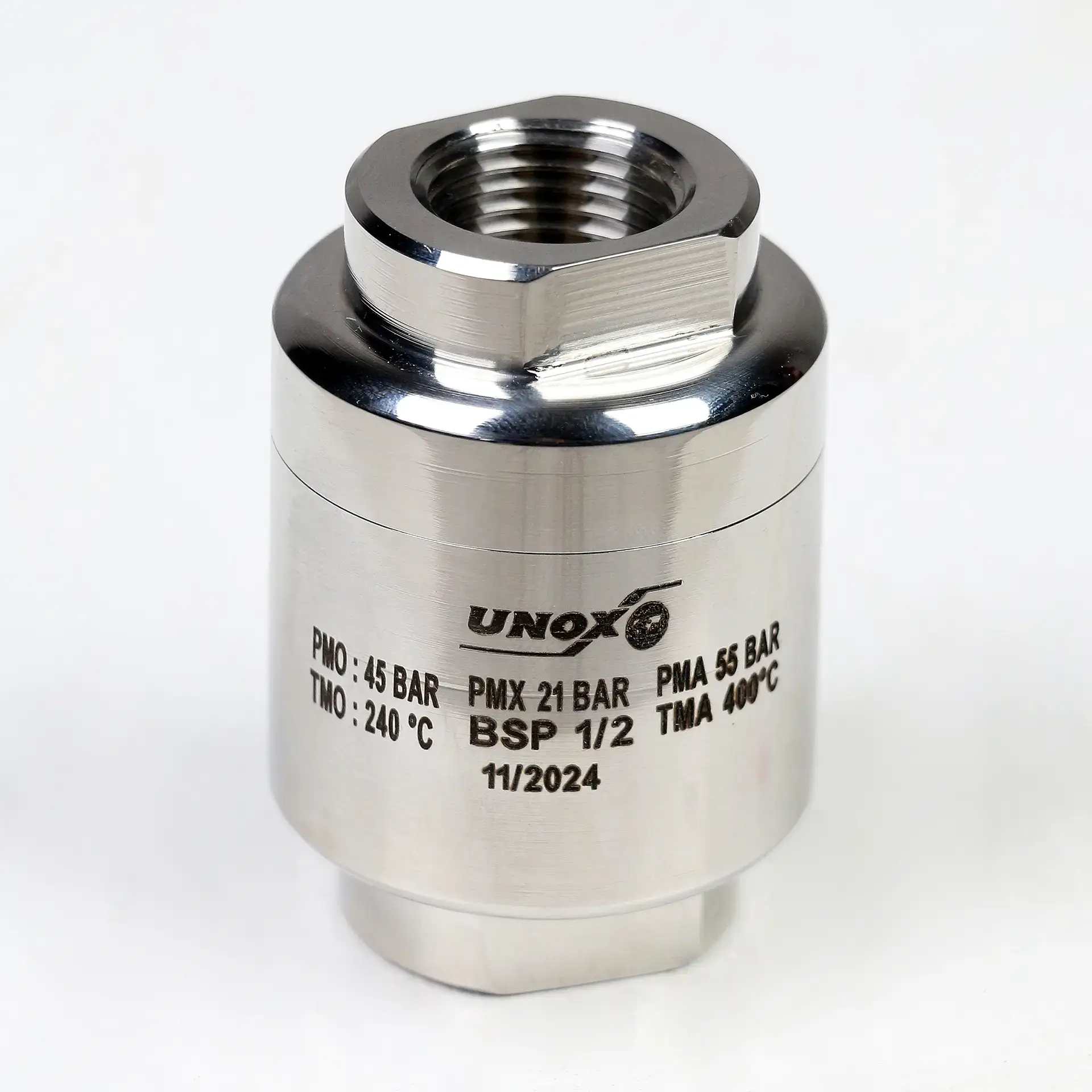

UNOX Thermostatic Steam Trap

Thermostatic Steam Trap / Air Vent for Steam Systems

The UNOX Thermostatic Steam Trap is a high-performance solution designed to efficiently remove condensate and non-condensable gases from steam systems while preventing live steam loss. Engineered with a stainless steel body and cover, this trap delivers outstanding durability and corrosion resistance even under harsh operating conditions. Its Hastelloy thermostatic capsule ensures precise temperature-based operation, opening to discharge condensate and closing instantly when steam reaches the set temperature.

Built for industrial reliability, the UNOX thermostatic steam trap handles a maximum operating pressure of 45 bar (≈652 psi) and a maximum operating temperature of 250 °C (≈482 °F). This makes it ideal for a wide variety of steam applications such as heat exchangers, autoclaves, sterilizers, and process equipment where consistent condensate drainage and energy savings are essential.

The compact threaded design simplifies installation and maintenance in both new and existing piping systems. Its robust stainless steel construction guarantees long service life with minimal maintenance, reducing downtime and operating costs.

Key Features

• Body & Cover: Stainless Steel – excellent corrosion resistance and durability
• Thermostatic Capsule: Hastelloy – precise thermal response and long life
• Maximum Operating Pressure: 45 bar (≈652 psi)
• Maximum Operating Temperature: 250 °C (≈482 °F)

The UNOX Thermostatic Steam Trap is the ideal choice for industries requiring efficient condensate removal, energy conservation, and dependable operation in demanding steam environments.
