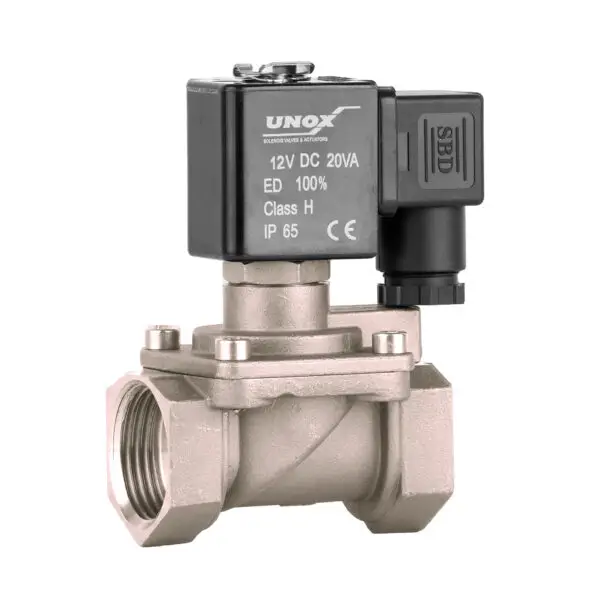

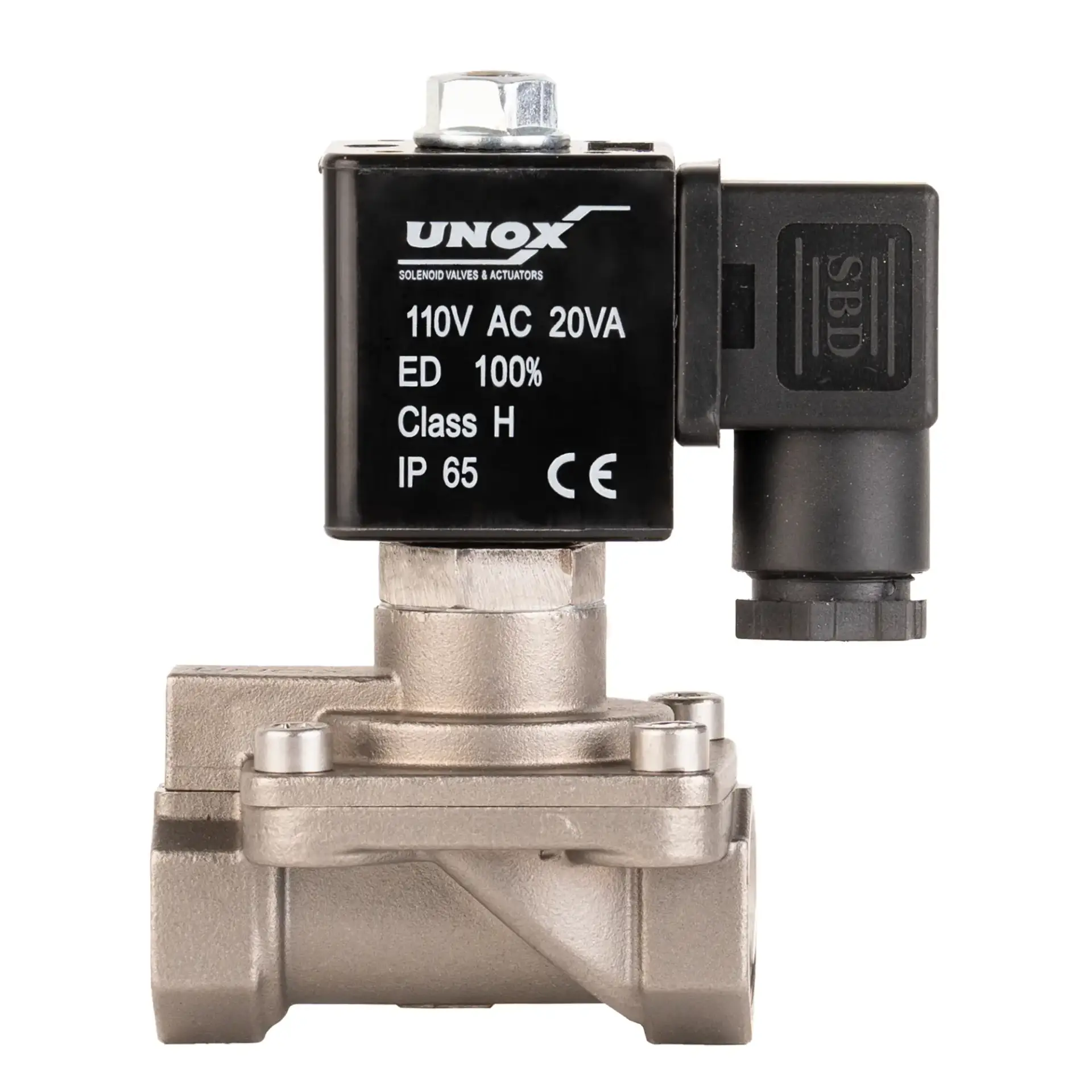

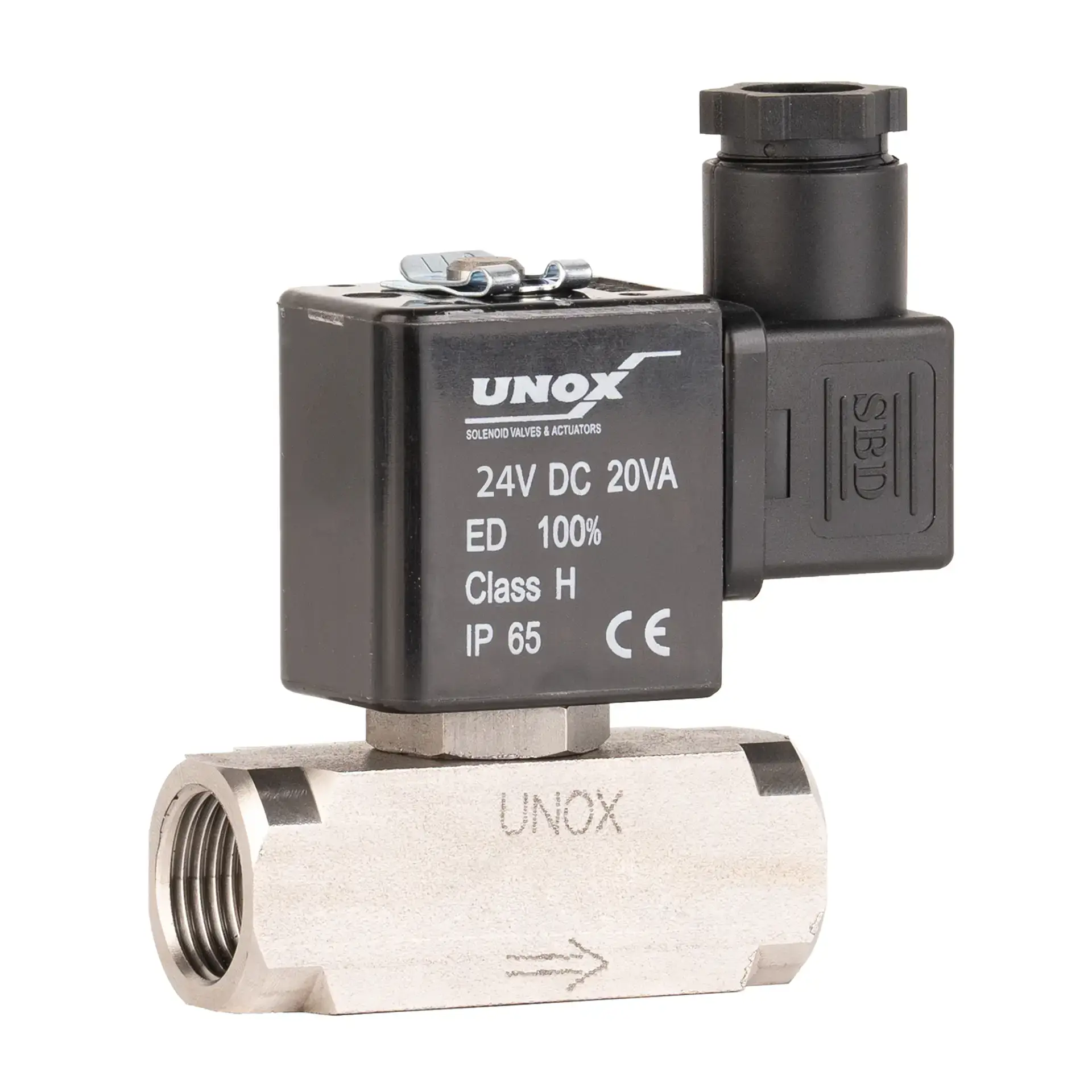

Stainless Steel Steam Solenoid Valve Normally Closed
The UNOX Stainless Steel Steam Solenoid Valve – Normally Closed is a premium-grade solution engineered for precise and reliable steam control in industrial automation systems. Designed for durability and high-temperature resistance, this valve is ideal for steam, hot water, and non-corrosive gas applications in process, HVAC, and thermal systems.
Constructed with an AISI 316 stainless steel body and stainless steel internal components, the valve delivers superior resistance to corrosion and pressure fatigue. The PTFE seal ensures exceptional thermal stability and chemical resistance, maintaining leak-tight performance even under continuous steam exposure. The socket-type coil connection provides secure installation and easy maintenance in demanding environments.
Operating within a pressure range of 0.5 – 6 Bar (7 – 87 PSI) and a temperature range from –10 °C to +180 °C (14 °F to 356 °F), this solenoid valve guarantees stable performance in both high and low-pressure steam systems. Its normally closed configuration ensures complete shutoff when de-energized, enhancing operational safety and energy efficiency.
Engineered for precision, reliability, and long service life, the UNOX Stainless Steel Steam Solenoid Valve is a trusted choice for industries requiring consistent steam regulation and minimal downtime.
Key Technical Features:
- Body Material: AISI 316 Stainless Steel
- Seal Material: PTFE
- Plunger & Core: Stainless Steel
- Coil Type: Socket Connection
- Temperature Range: –10 °C to +180 °C (14 °F to 356 °F)
- Pressure Range: 0.5 – 6 Bar (7 – 87 PSI)
- Configuration: Normally Closed (NC)
- Applications: Steam systems, autoclaves, sterilizers, boilers, heat exchangers, and industrial automation
The UNOX Stainless Steel Steam Solenoid Valve – Normally Closed combines precision engineering, corrosion resistance, and temperature endurance, making it a reliable component for modern steam control systems.
