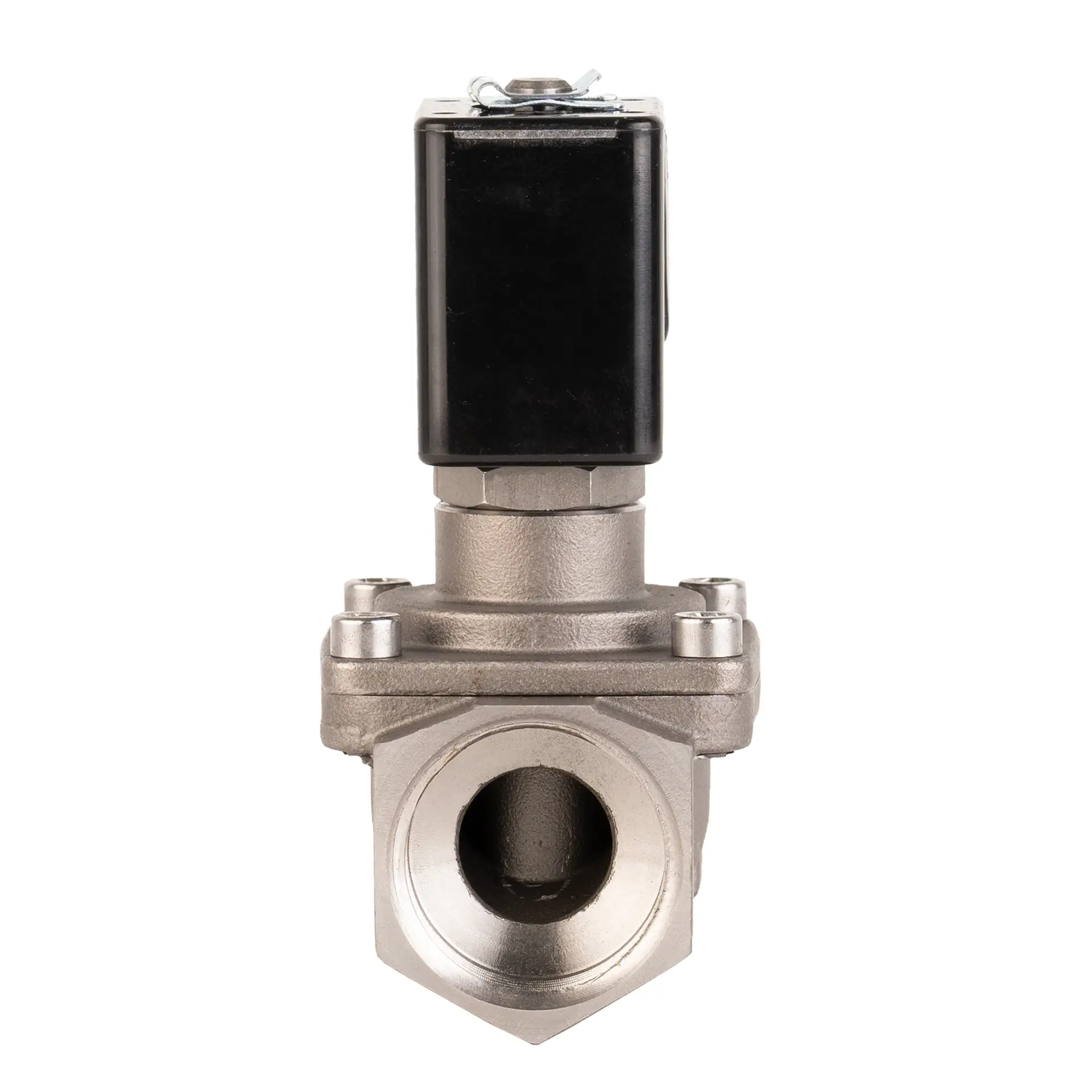

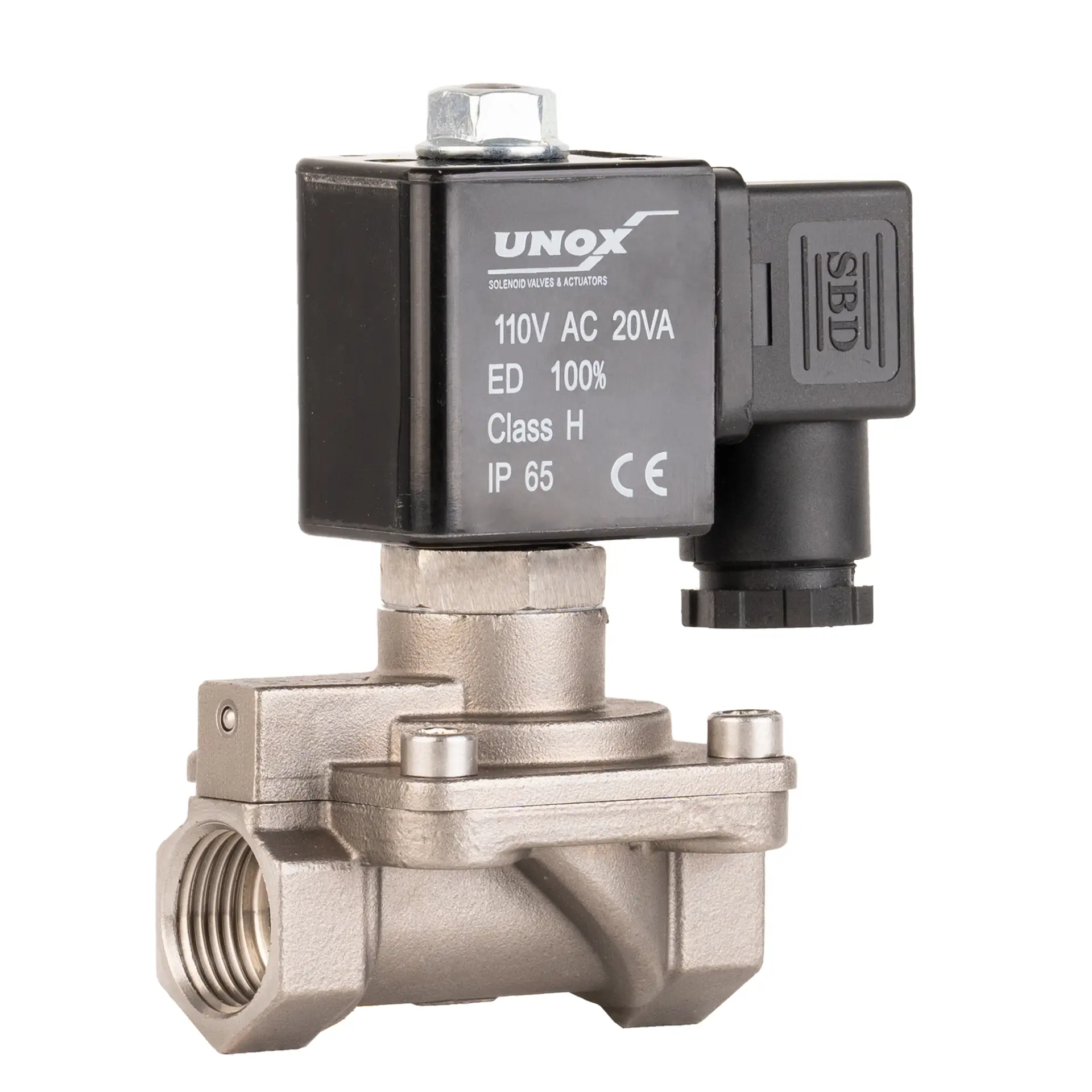

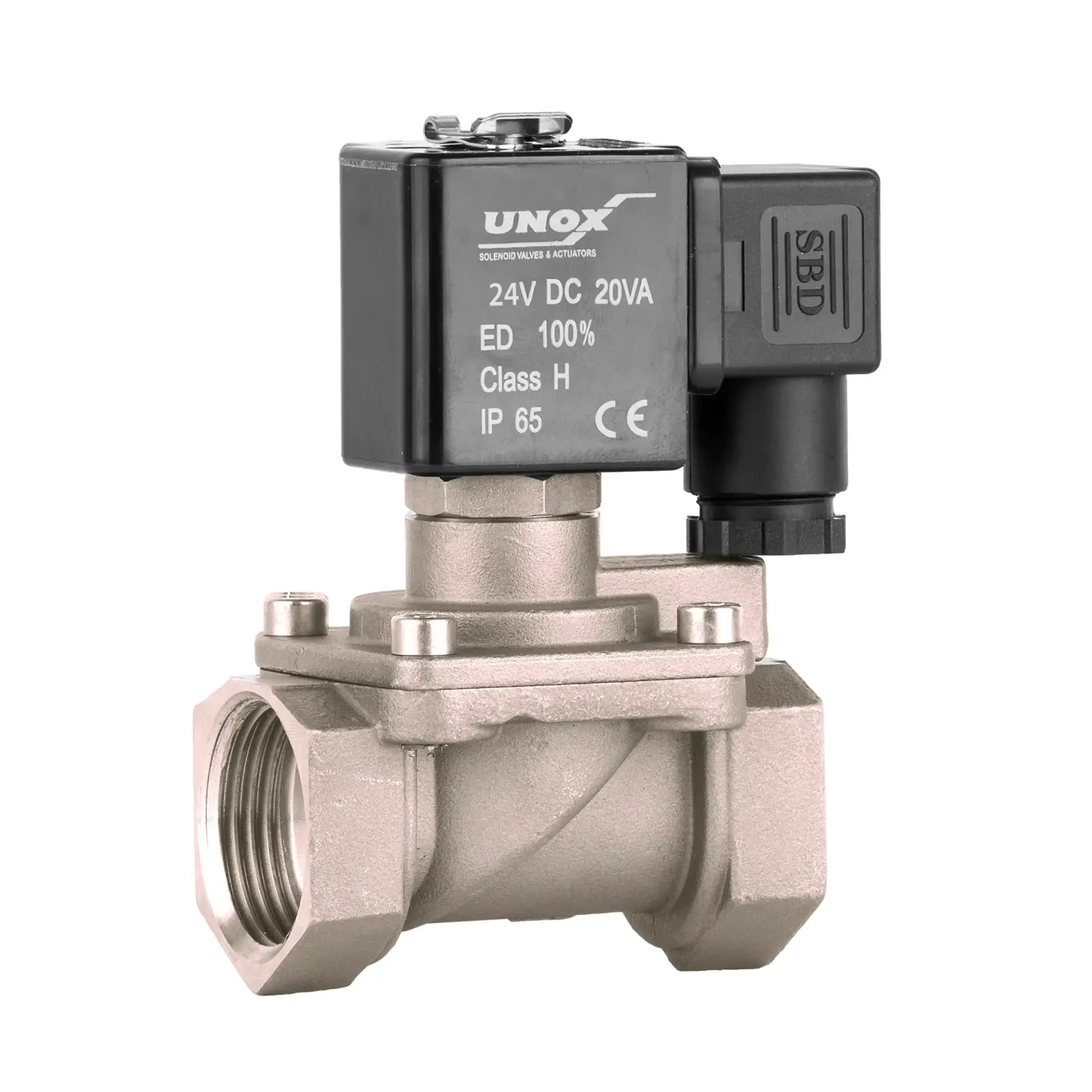

UNOX Stainless Steel General Purpose Solenoid Valve Normally Closed (IGM)

Stainless Steel General Purpose Solenoid Valve Normally Closed

The UNOX Stainless Steel General Purpose Solenoid Valve Normally Closed is a high-performance solution designed for controlling the flow of air, water, and non-corrosive fluids in a wide range of industrial applications. Built from AISI 316 stainless steel, this valve offers exceptional corrosion resistance, durability, and compatibility with demanding environments such as chemical plants, food processing, and water treatment systems.

Equipped with a stainless steel plunger and sleeve, and sealed with NBR elastomer, the valve provides reliable sealing and extended service life even under frequent switching conditions. The socket-type coil connection ensures easy maintenance and secure electrical contact. With an operating temperature range of -10 °C to +90 °C (14 °F to 194 °F), it performs consistently in both low and moderate temperature environments.

This solenoid valve is available in multiple sizes with different working pressure ranges to suit diverse system requirements:

• 1/8″ and 1/4″ sizes: 0–16 Bar (0–232 PSI)
• 3/8″, 1/2″, 3/4″, and 1″ sizes: 0.5–16 Bar (7–232 PSI)

Engineered for efficiency, the valve’s normally closed configuration ensures tight shutoff when de-energized, making it ideal for safety-critical and automated control systems. The precision-machined stainless steel body provides smooth flow characteristics, minimizing turbulence and pressure loss.

Key Technical Features:

• Body Material: AISI 316 Stainless Steel
• Seal Material: NBR
• Plunger & Sleeve: Stainless Steel
• Coil Type: Socket Connection
• Temperature Range: -10 °C to +90 °C (14 °F to 194 °F)
• Pressure Range:
  • 1/8″, 1/4″ → 0–16 Bar (0–232 PSI)
  • 3/8″, 1/2″, 3/4″, 1″ → 0.5–16 Bar (7–232 PSI)
• Configuration: Normally Closed (NC)
• Applications: Air, water, inert gases, industrial automation, and process control

The UNOX Stainless Steel General Purpose Solenoid Valve delivers precision, safety, and durability — making it the perfect choice for industrial automation and general-purpose fluid control systems.
