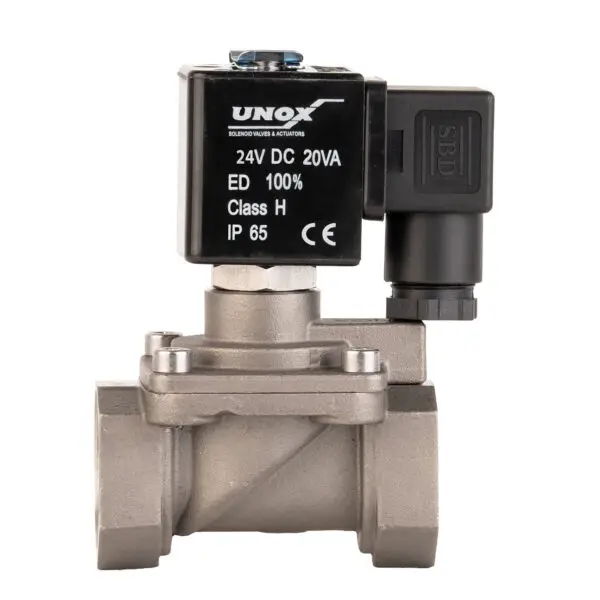

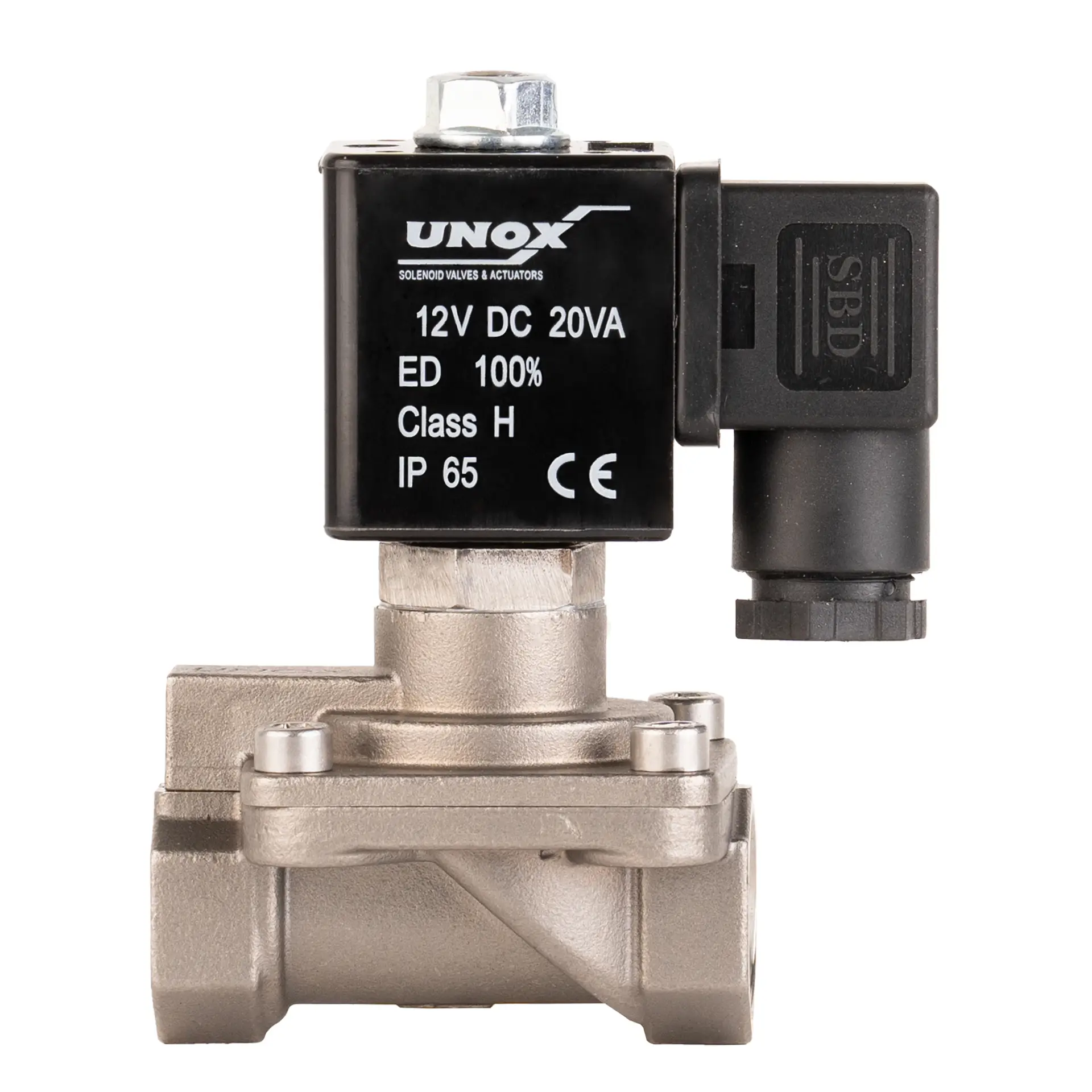

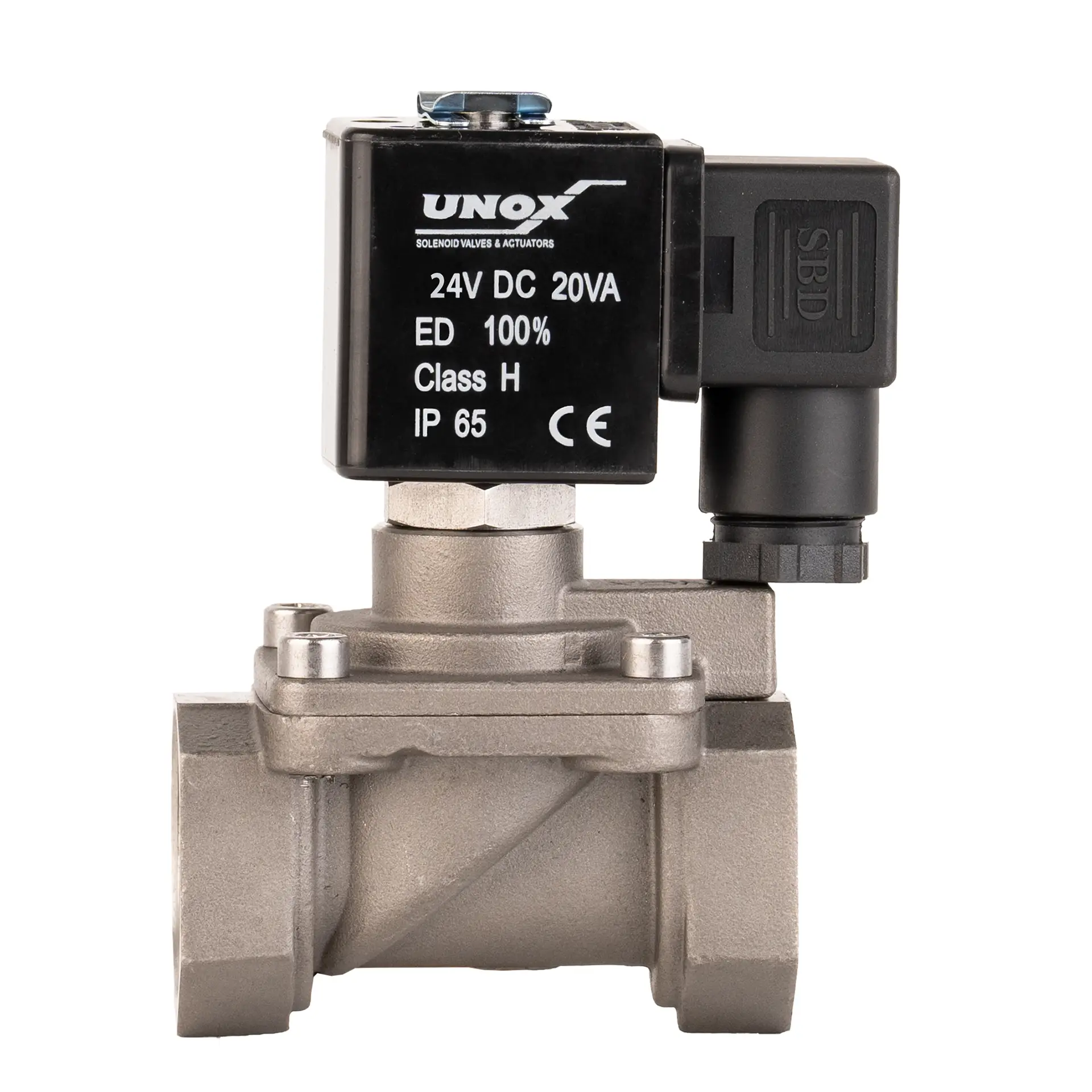

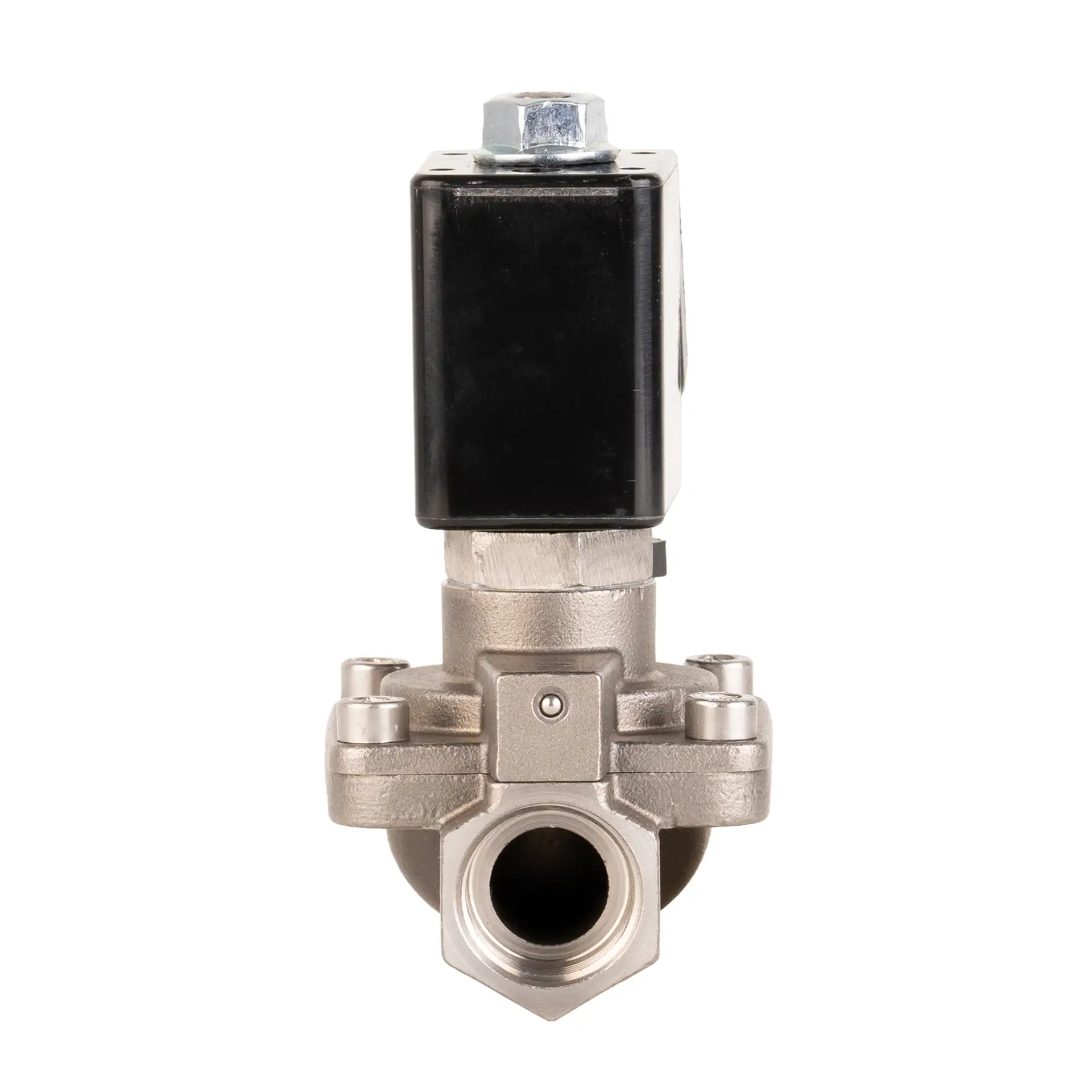

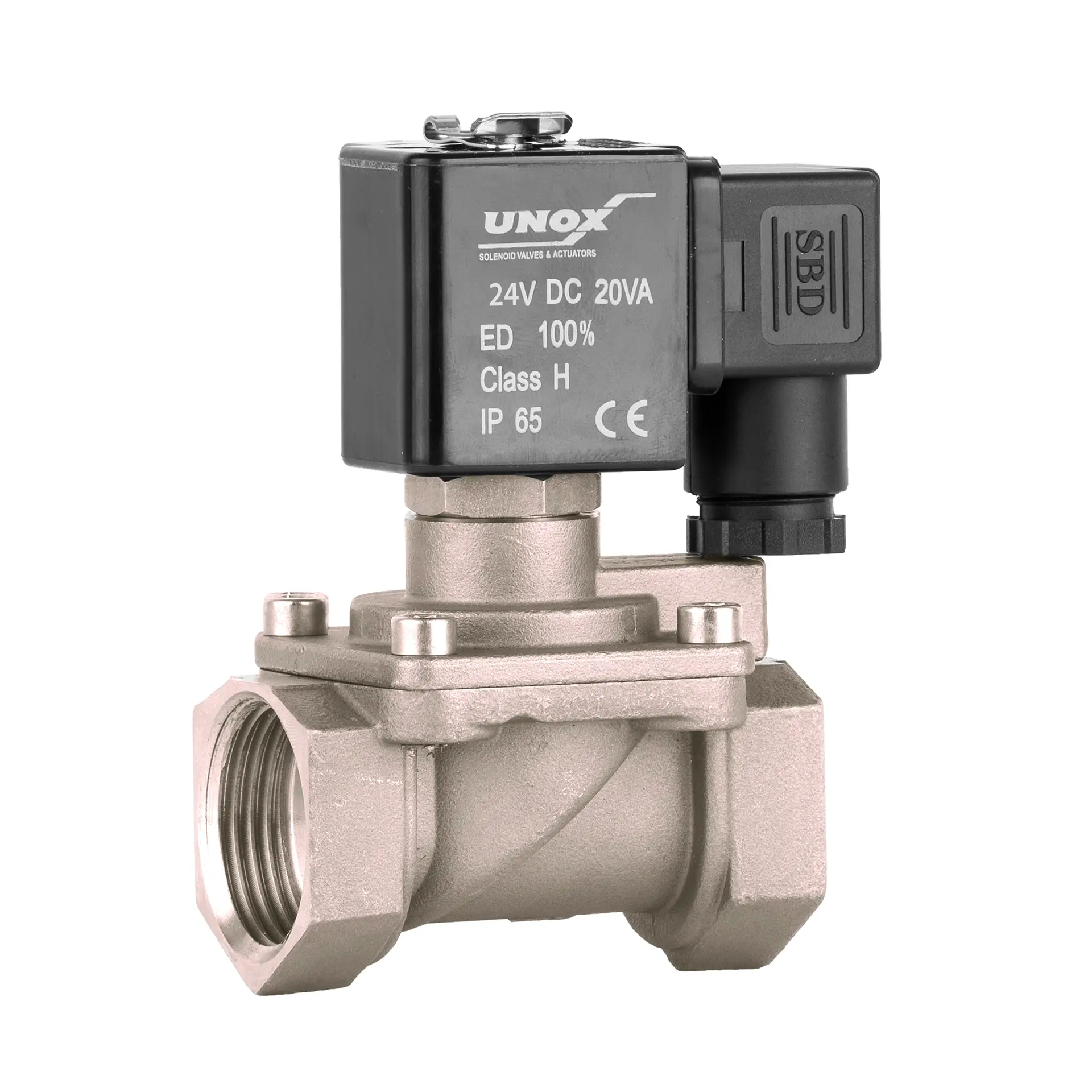

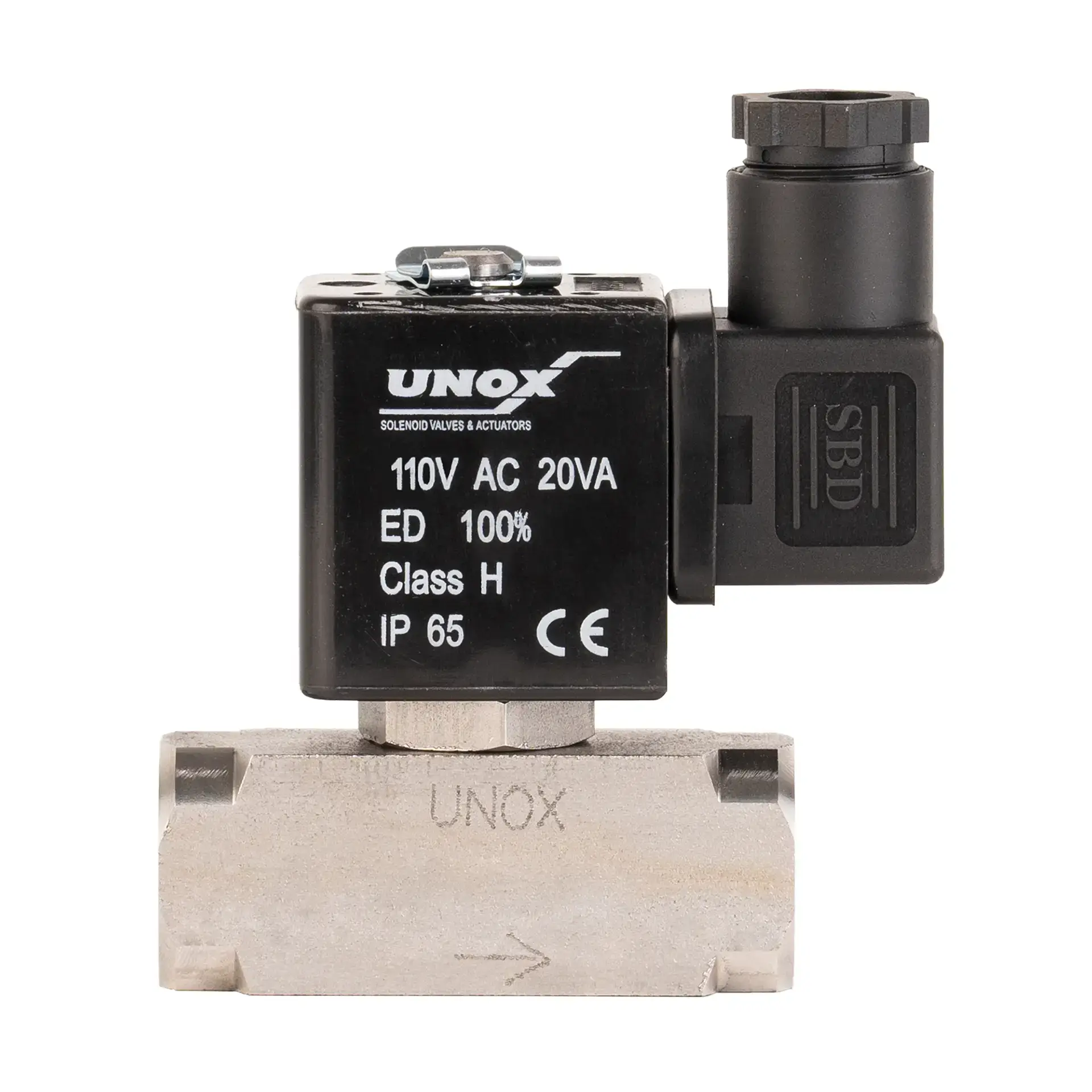

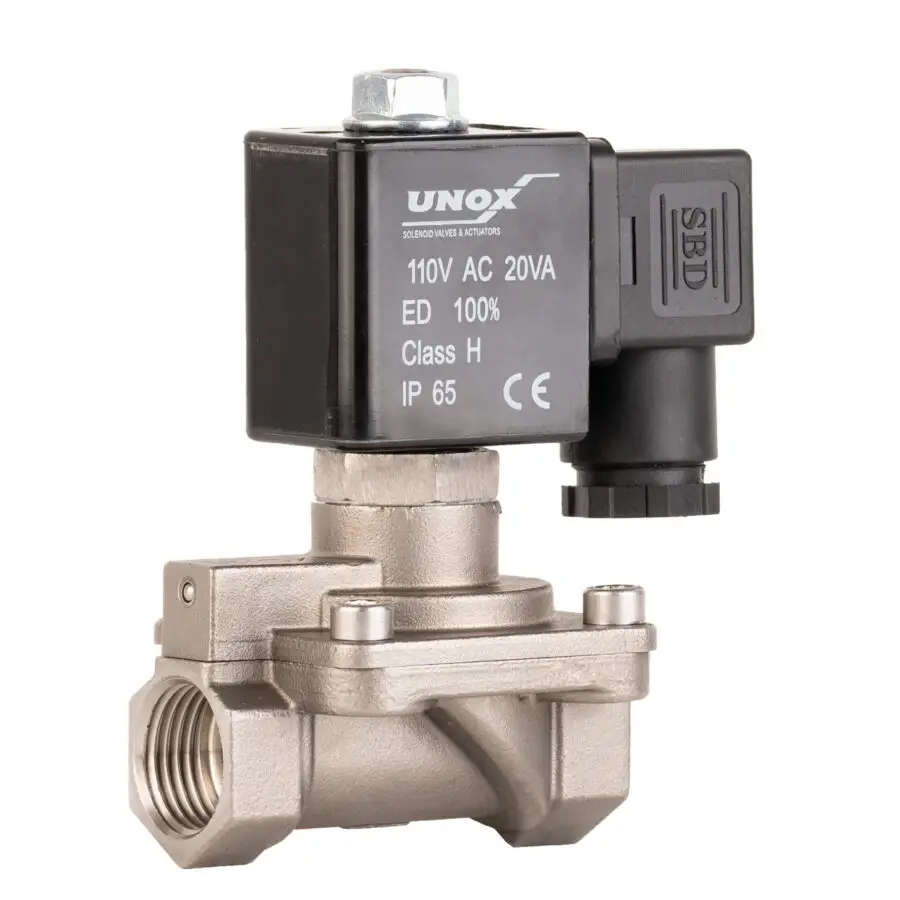

UNOX Stainless Steel General Purpose High Pressure Solenoid Valve Normally Closed (IGMYB)

UNOX Stainless Steel General Purpose High Pressure Solenoid Valve Normally Closed (IGMYB)

The UNOX Stainless Steel General Purpose High Pressure Solenoid Valve – Normally Closed is a durable, precision-engineered solution for demanding industrial fluid control systems. Designed for high-pressure environments and aggressive media, this solenoid valve provides exceptional reliability and tight shut-off performance.

Constructed from AISI 316 stainless steel, the valve body and internal components ensure excellent resistance to corrosion, heat, and wear. Its PTFE/Viton seals provide superior chemical compatibility, making it suitable for water, air, light oils, and non-corrosive gases. With a working temperature range of -10 °C to +150 °C (14 °F to 302 °F) and a pressure capacity up to 40 BAR (≈580 PSI), the valve performs consistently even under extreme industrial conditions.

The normally closed (NC) design guarantees that the valve remains closed when de-energized, offering secure and precise flow control. The socket-type coil and stainless steel plunger assembly enhance electrical and mechanical efficiency while ensuring a long operational lifespan.

Key Features:

• Body Material: AISI 316 stainless steel for superior corrosion and pressure resistance

• Seals: PTFE / Viton for chemical and thermal durability

• Working Pressure: 0,5 – 40 BAR (≈580 PSI)

• Temperature Range: -10 °C to +150 °C (14 °F to 302 °F)

• Operation Type: Normally Closed (NC) for safe shut-off when de-energized

• Core & Sleeve: Stainless steel for extended service life

• Coil Type: Socket connection for quick installation and replacement

• Media Compatibility: Water, air, light oil, steam, and inert gases

• Applications: Chemical plants, water treatment, process automation, HVAC, and general industry

The UNOX Stainless Steel General Purpose High Pressure Solenoid Valve stands out for its durability, safety, and reliability in controlling fluids under high pressure. Its robust design and premium materials make it ideal for engineers seeking long-lasting performance in challenging operating environments.
