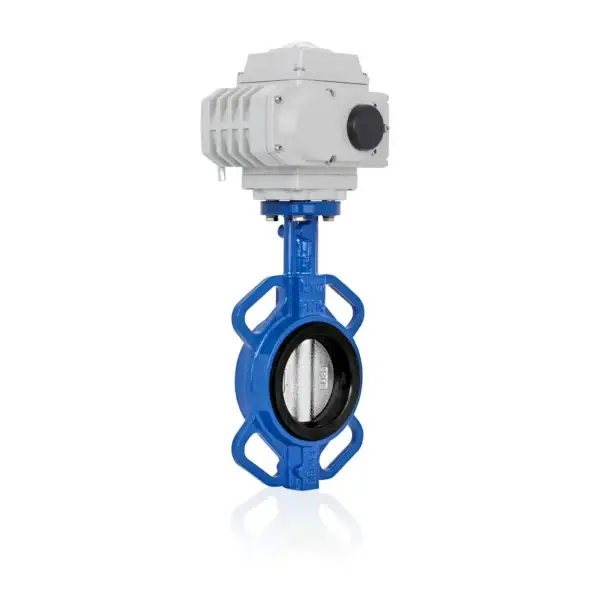

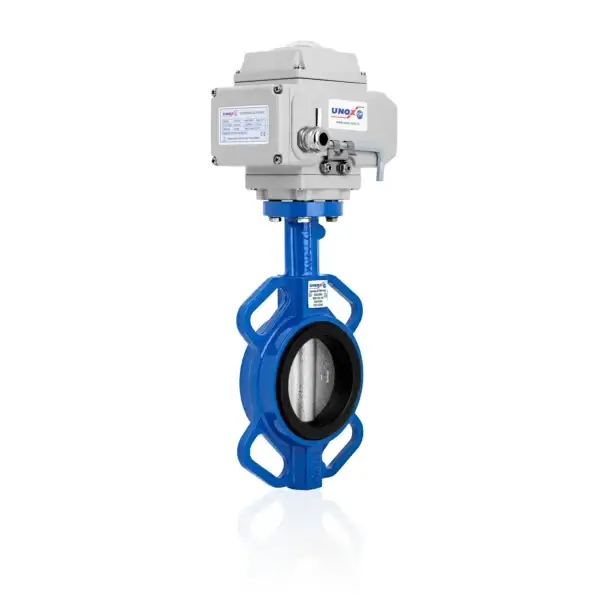

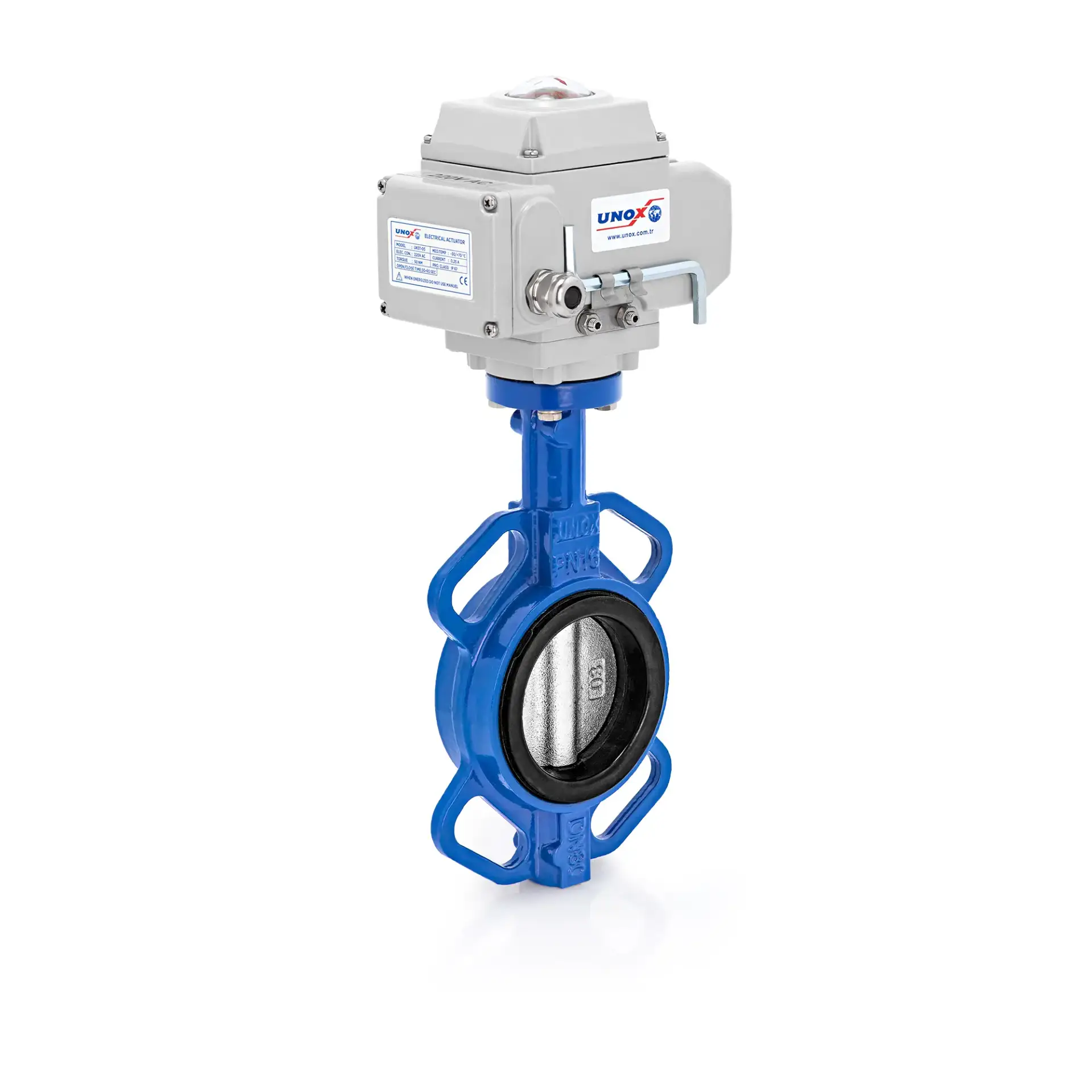

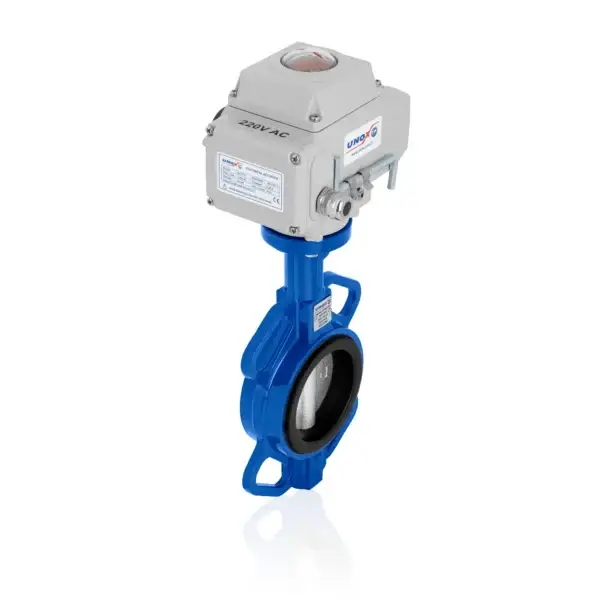

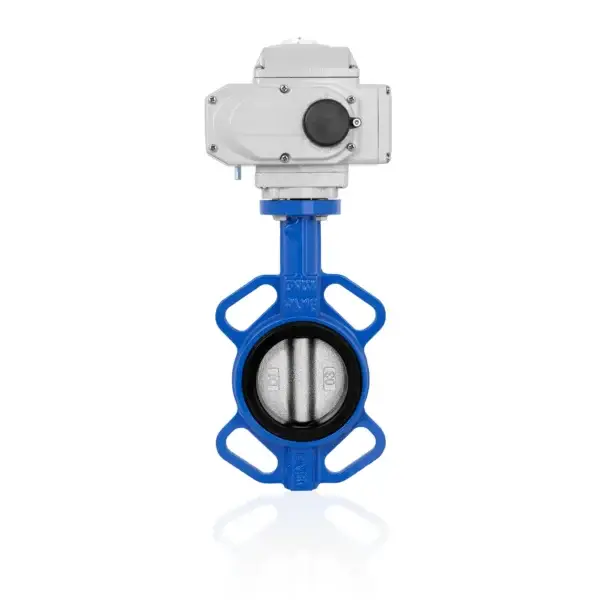

Unox SS304 Disc Wafer Butterfly Valve With Electric Actuator

SS304 Disc Wafer Butterfly Valve With Electric Actuator

The UNOX SS304 Disc Wafer Butterfly Valve With Electric Actuator is designed for reliable and efficient flow control in industrial, chemical, and HVAC systems. Combining a robust cast iron body with a stainless steel AISI 304 disc, this valve provides excellent corrosion resistance, durability, and sealing performance even in harsh environments.

The wafer-type design allows for easy installation between flanges, saving space and simplifying maintenance. The EPDM seat ensures a tight seal and high chemical compatibility, making this valve suitable for a wide range of media including water, air, oil, and mild chemicals.

Equipped with a high-performance electric actuator, the valve offers On/Off control with smooth and precise operation. It is available in 110V AC, 220V AC, and 24V DC versions, allowing flexible integration into various control systems. The actuator features a manual override, visual position indicator, and IP67-rated housing for protection against dust and moisture, ensuring long-term reliability indoors or outdoors.

Key Features:

• Body Material: Cast Iron (GGG40.3)
• Disc Material: Stainless Steel AISI 304
• Seat Material: EPDM
• Design: Wafer Type for compact and easy installation
• Actuator Type: Electric actuator with On/Off control
• Voltage Options: 110V AC / 220V AC / 24V DC
• Working Pressure: Up to 16 Bar (≈230 PSI)
• Temperature Range: -10 °C to +120 °C (14 °F to 248 °F)
• Protection Class: IP67-rated, weatherproof
• Connection Standard: ISO 5211 mounting pad
• Applications: Water treatment, HVAC, food processing, chemical plants, and industrial automation

The UNOX SS304 Disc Wafer Butterfly Valve With Electric Actuator combines robust mechanical structure with advanced automation. Its stainless steel disc and EPDM sealing ensure dependable performance and long service life, making it an excellent choice for automated fluid control in modern industrial systems.
