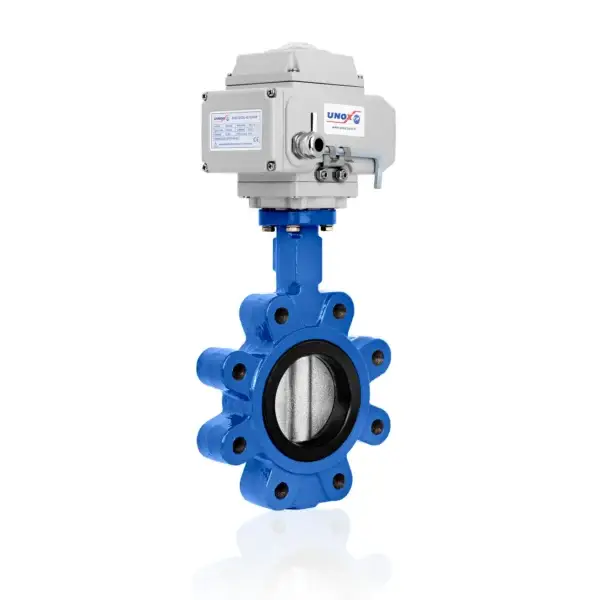

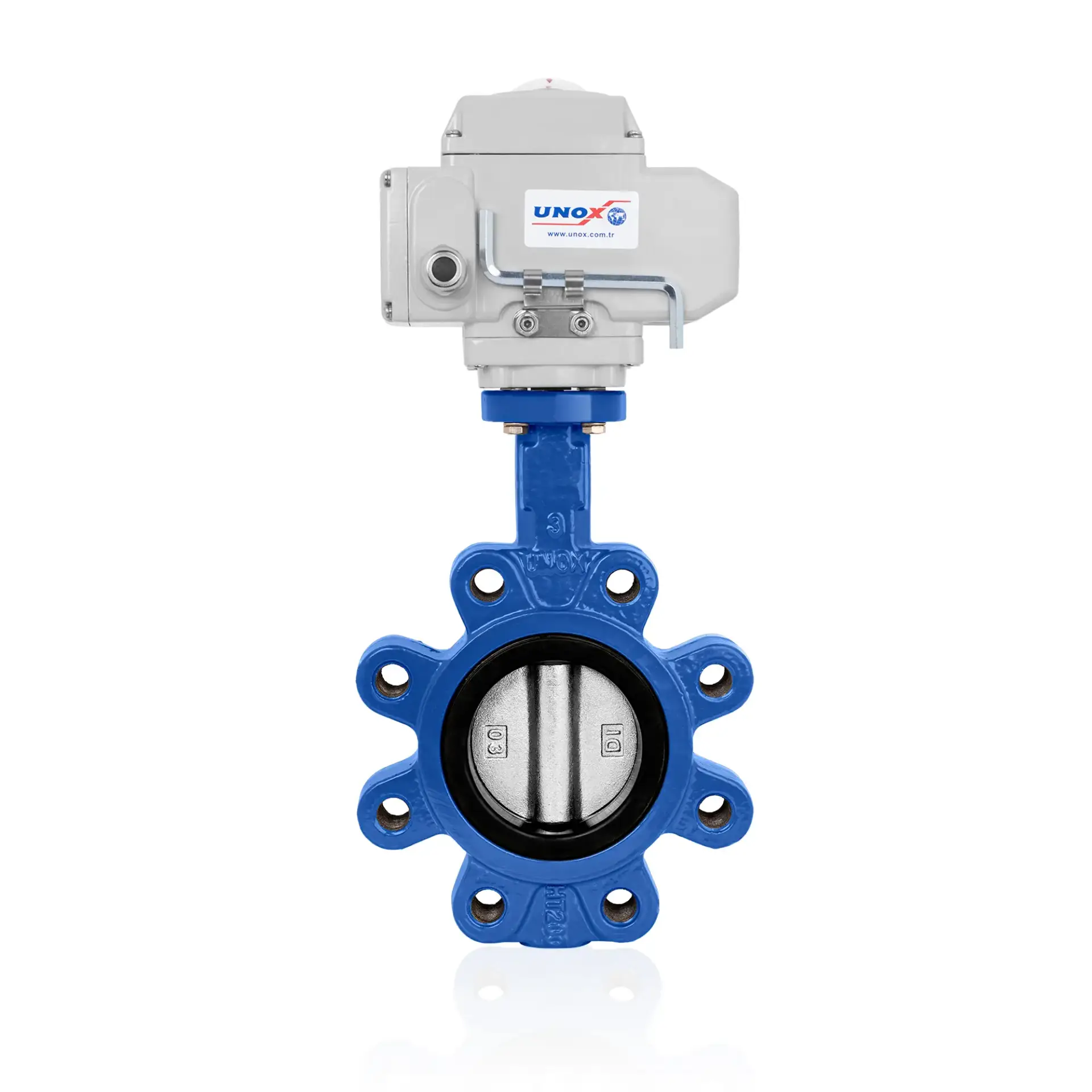

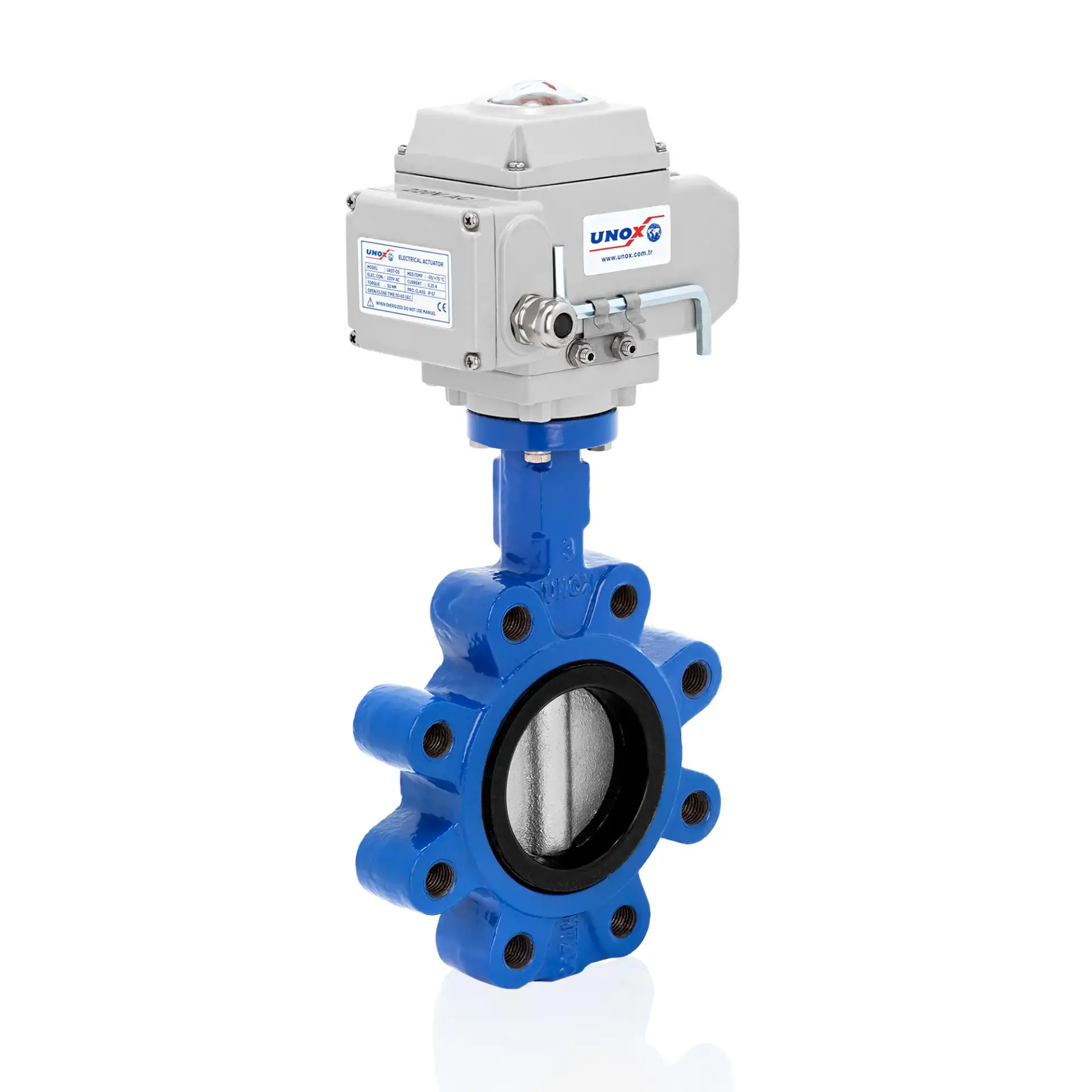

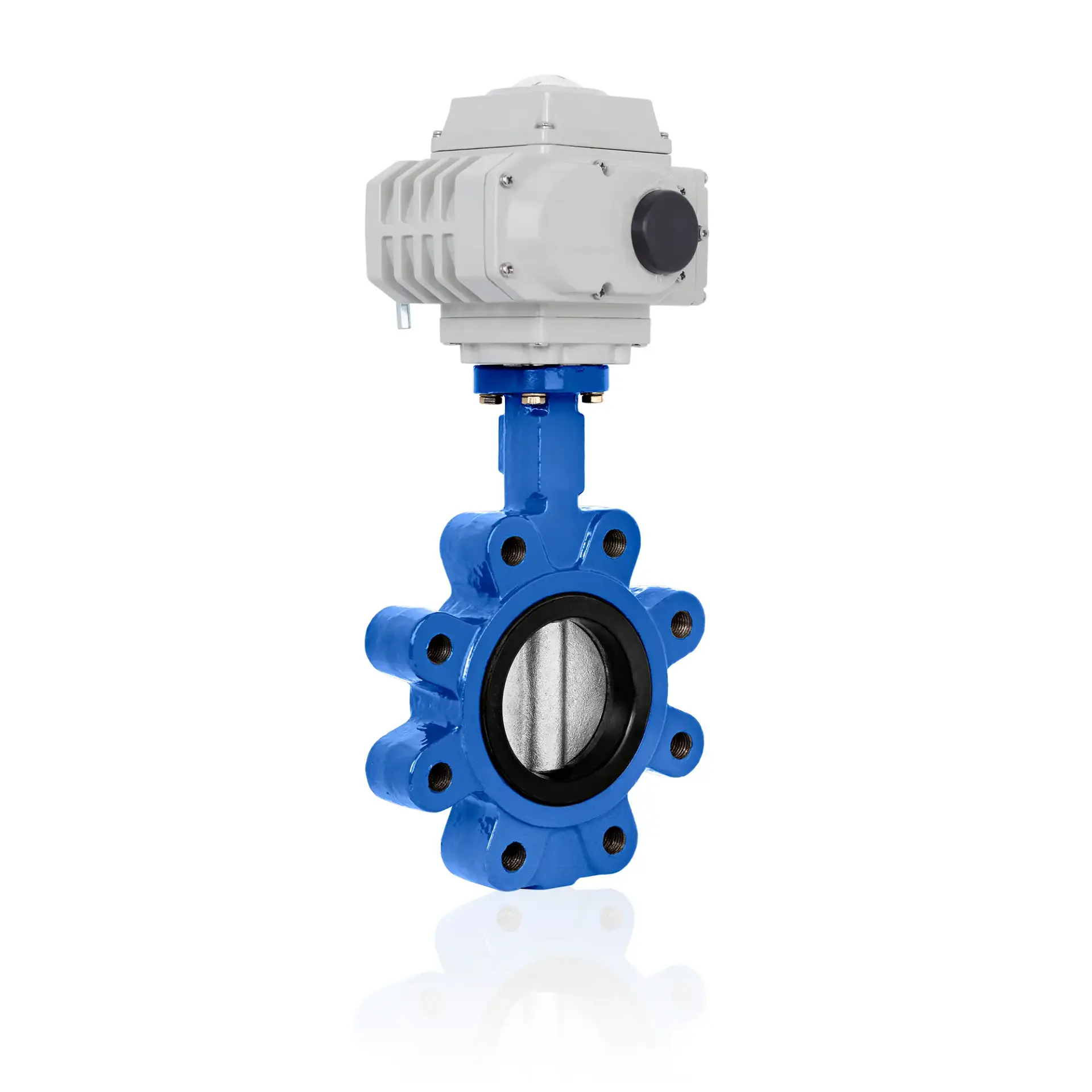

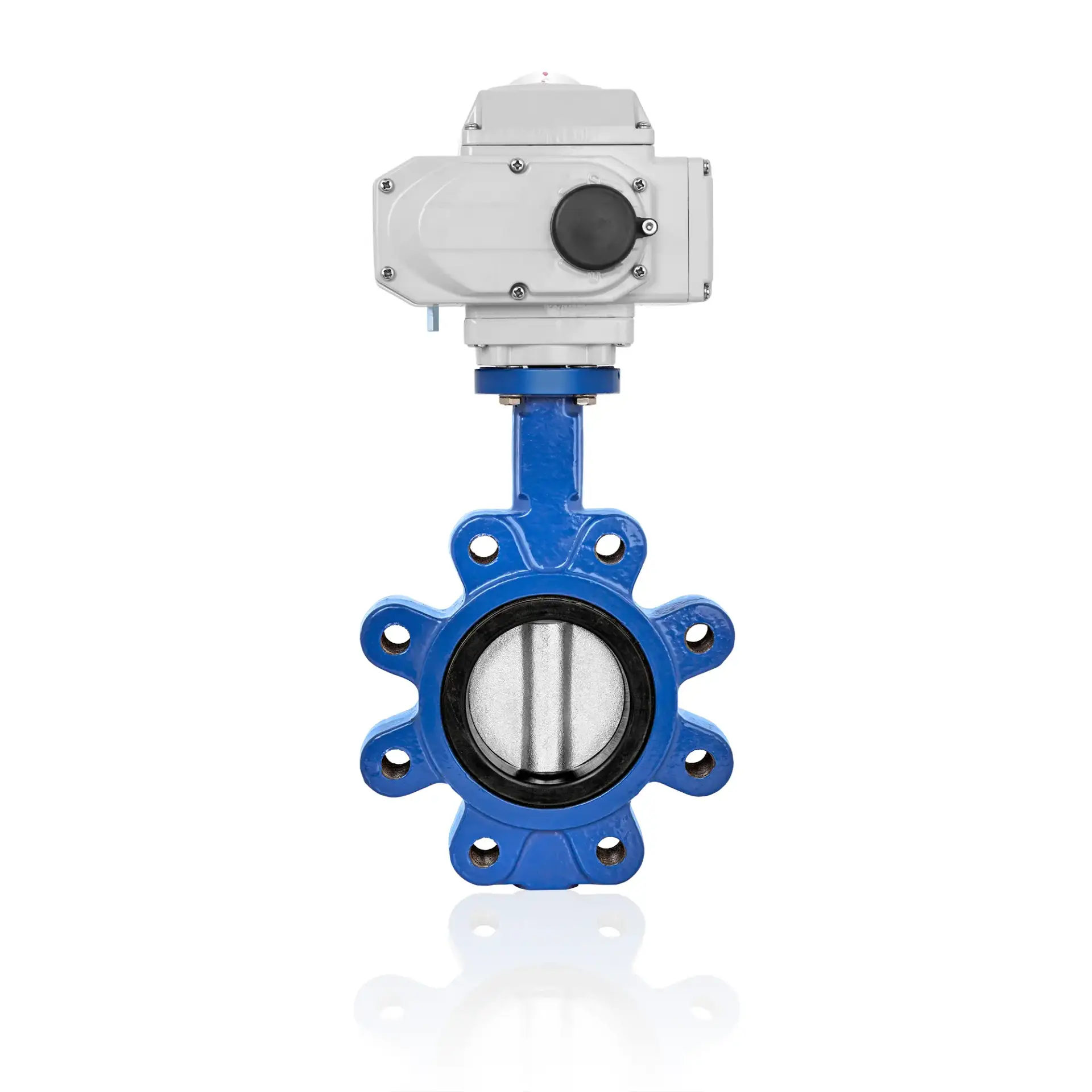

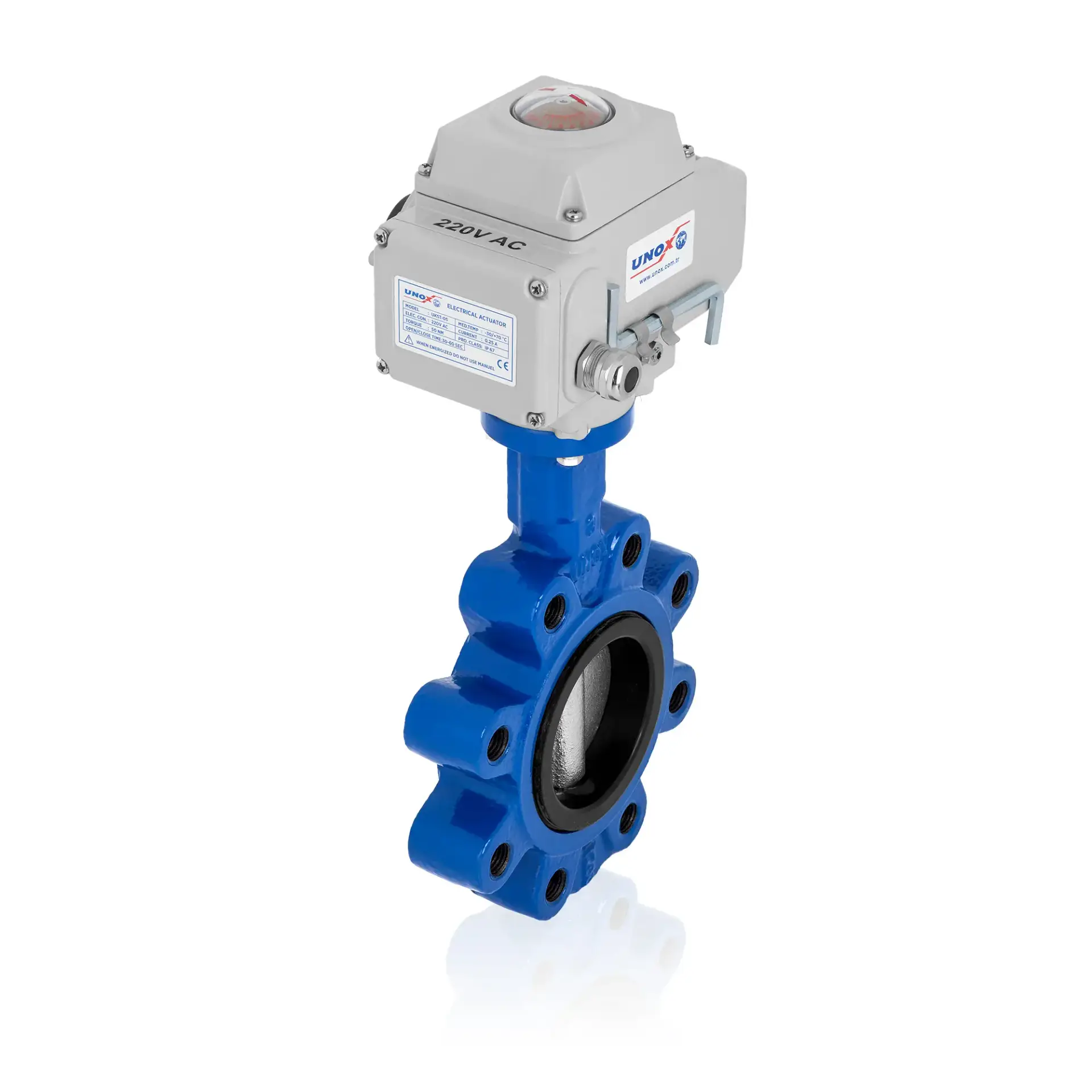

UNOX SS304 Disc Lug Butterfly Valve With Electric Actuator
The UNOX SS304 Disc Lug Butterfly Valve With Electric Actuator is a premium-quality automated valve designed for precise and durable flow control across industrial, water treatment, and HVAC systems. Its lug-type design allows secure installation between pipeline flanges and easy maintenance, even at the end of a line, making it suitable for a wide range of industrial applications.
The valve features a robust cast iron (GGG40.3) body and a stainless steel AISI 304 disc, ensuring outstanding corrosion resistance and mechanical strength. The EPDM seat provides excellent sealing performance, resistance to chemicals, and long-term elasticity. This combination guarantees reliable operation under varying pressure and temperature conditions.
Equipped with a high-torque electric actuator, the valve provides On/Off control for automated system integration. It is available in 110V AC, 220V AC, and 24V DC voltage options, making it adaptable to different control systems. The actuator includes a manual override, visual position indicator, and IP67-rated weatherproof housing for maximum protection and reliability in harsh environments.
Key Features:
- Body Material: Cast Iron (GGG40.3)
- Disc Material: Stainless Steel AISI 304
- Seat Material: EPDM
- Design Type: Lug Type – suitable for dead-end service and easy pipeline maintenance
- Actuator Type: Electric actuator with On/Off control
- Voltage Options: 110V AC / 220V AC / 24V DC
- Working Pressure: Up to 16 Bar (≈230 PSI)
- Temperature Range: -10 °C to +120 °C (14 °F to 248 °F)
- Protection Class: IP67-rated weatherproof housing
- Connection Standard: ISO 5211 mounting pad
- Applications: Industrial automation, water systems, HVAC, chemical processing, and power generation
The UNOX SS304 Disc Lug Butterfly Valve With Electric Actuator offers exceptional corrosion resistance, smooth automation, and long service life. Its durable design and precise electric actuation make it an ideal choice for industries requiring dependable flow control and efficient operation.
