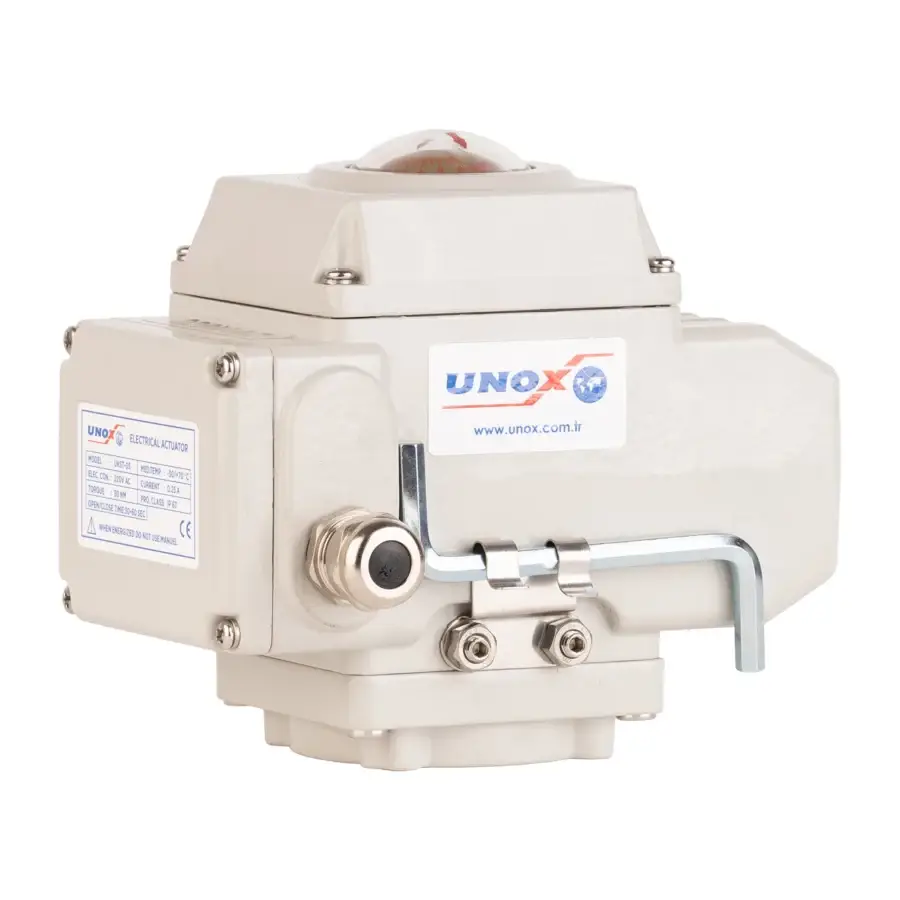

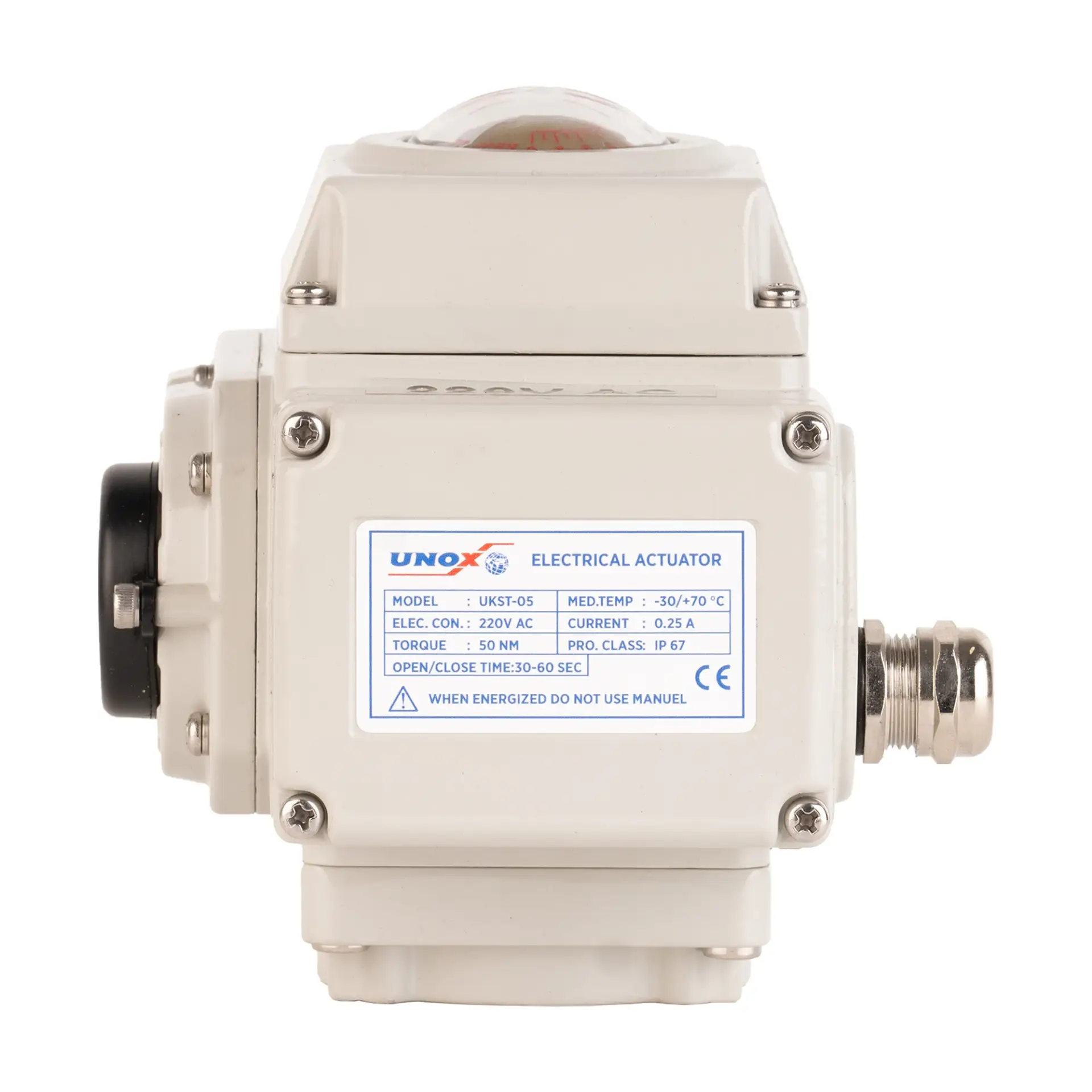

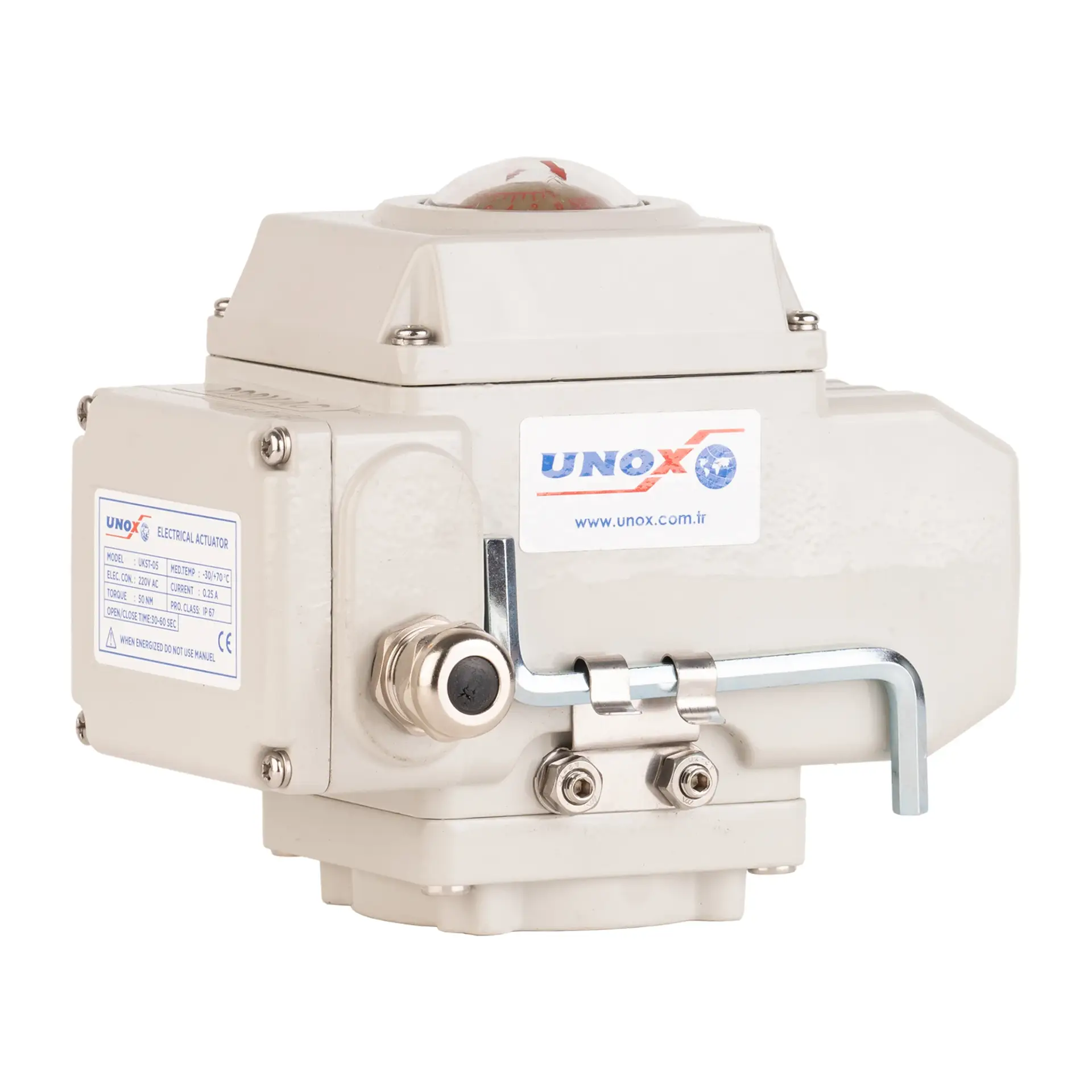

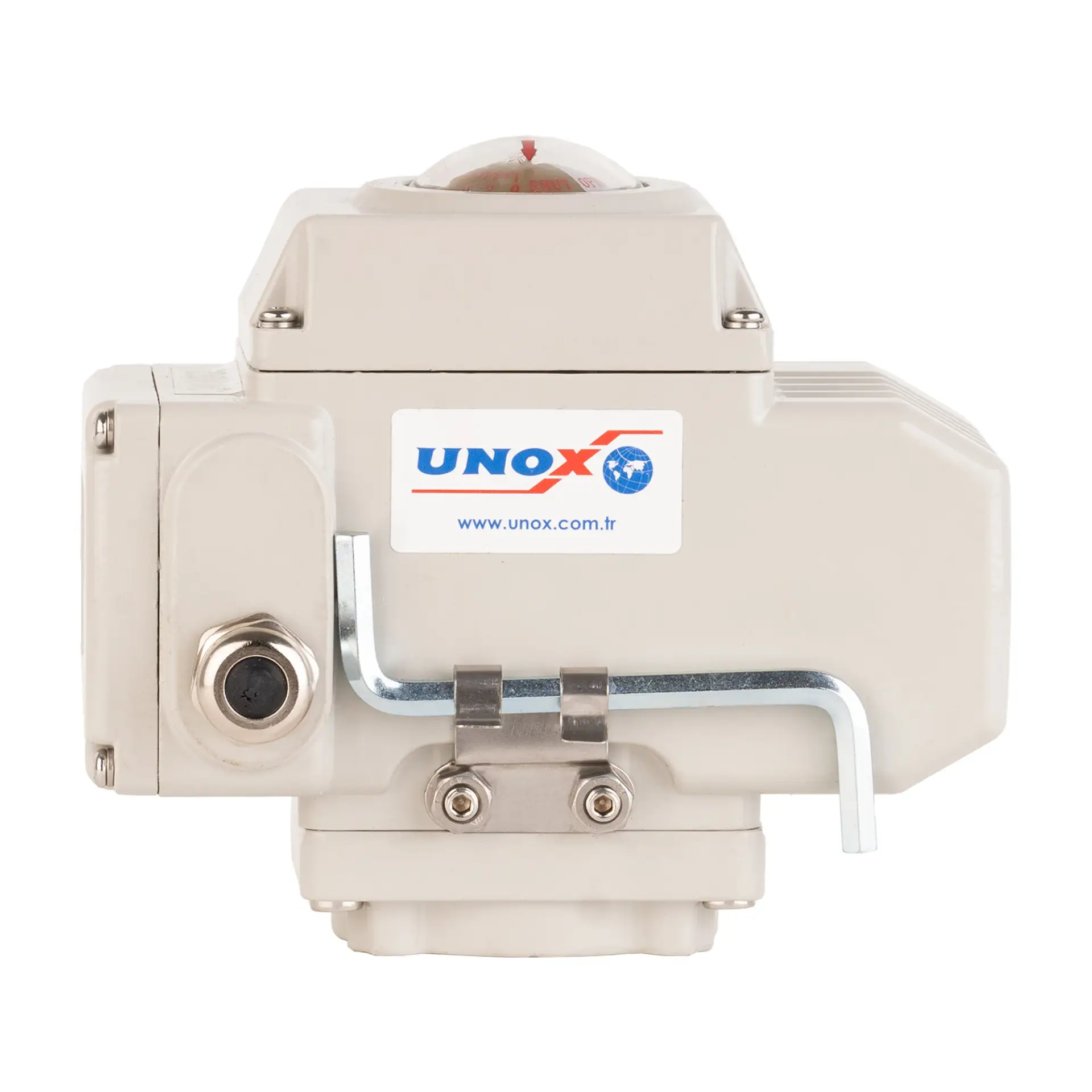

UNOX Rotary On-Off Electric Actuator

Rotary On-Off Electric Actuator

The UNOX Rotary On-Off Electric Actuator is designed for precise and reliable valve automation in industrial applications. With a robust aluminum housing and IP67 protection, it guarantees durability and safe operation even in harsh environments.

Available in multiple torque options (50 Nm, 100 Nm, 200 Nm, 400 Nm, 600 Nm, and 1000 Nm) and power supply versions (24V DC and 220V AC), the actuator provides flexibility to meet different system requirements.

Key Features:

• On-Off rotary electric actuator for quarter-turn valves
• Torque options: 50 Nm, 100 Nm, 200 Nm, 400 Nm, 600 Nm, 1000 Nm
• Power supply: 24V DC or 220V AC
• Robust aluminum housing with IP67 protection
• Wide operating temperature range
• ISO 5211 mounting connection for easy valve installation
• 1/2″ water-protected electrical connection

Technical Specifications:

• Torque Range: 50–1000 Nm
• Voltage Options: 24V DC / 220V AC
• Housing Material: Aluminum
• Protection Class: IP67
• Operating Temperature: -10°C / +80°C (14°F / 176°F)
• Mounting Standard: ISO 5211
• Electrical Connection: 1/2″ water-protected

Applications:

• Ball valves and butterfly valves
• Industrial process control
• HVAC and water systems
• Oil & gas
• Chemical and energy industries
