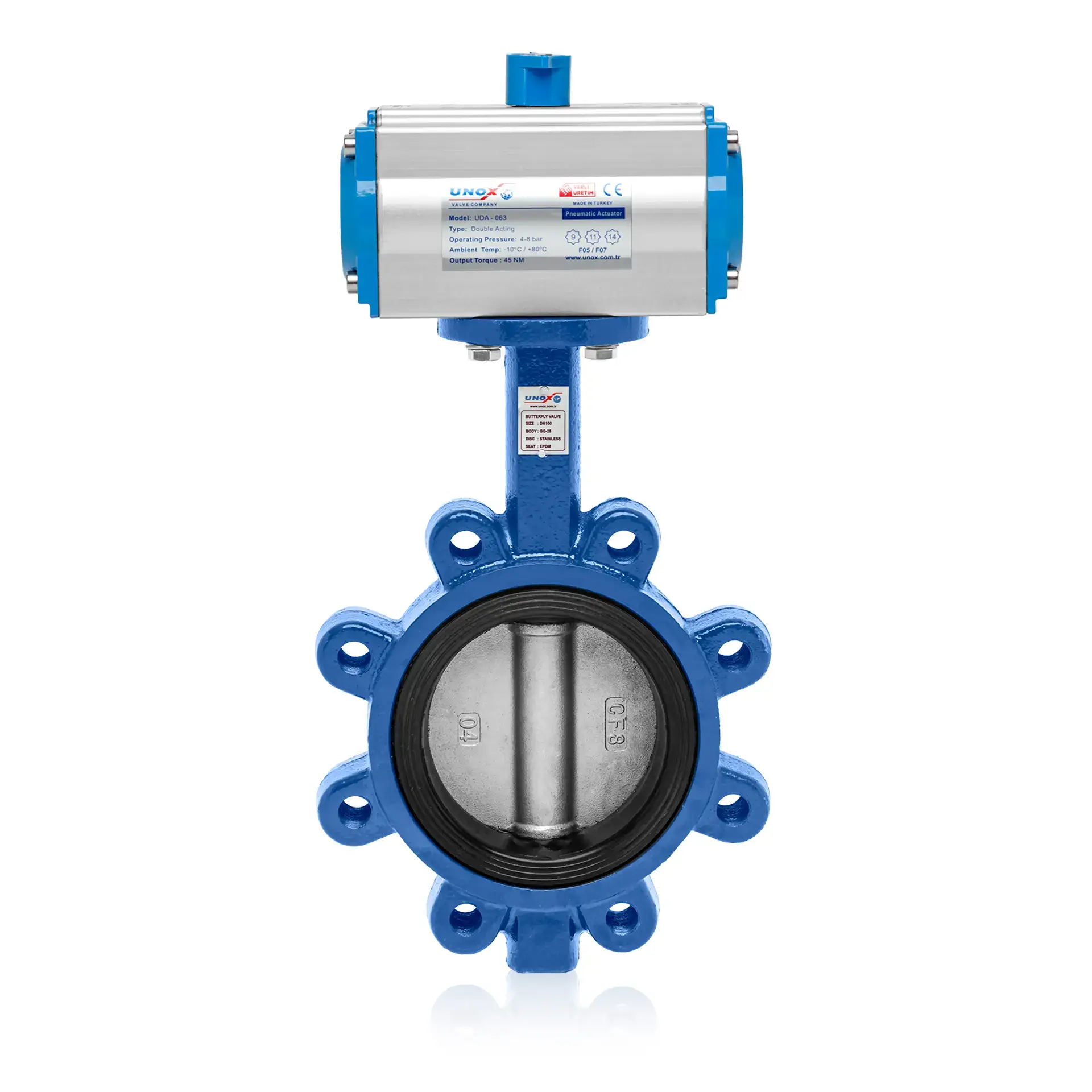

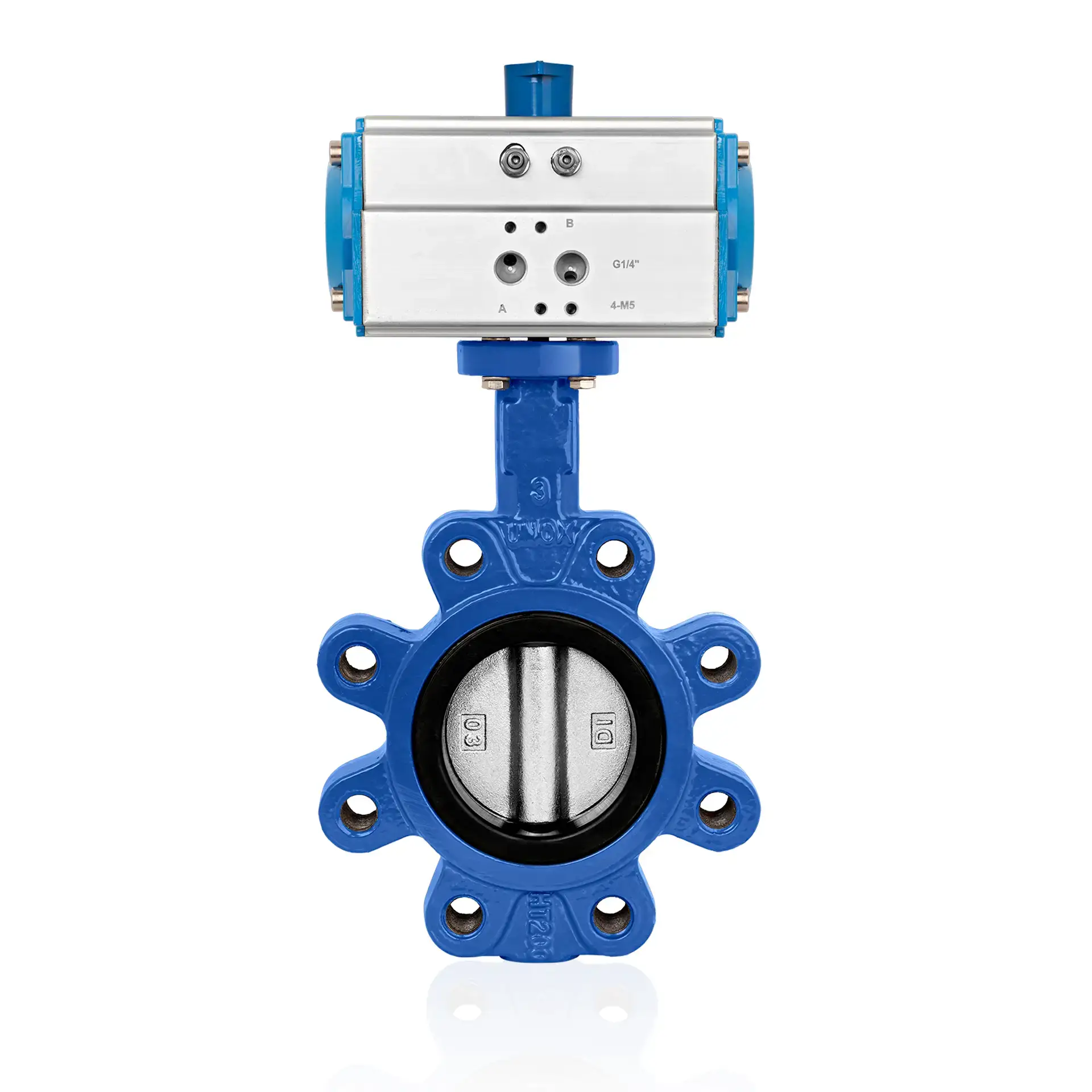

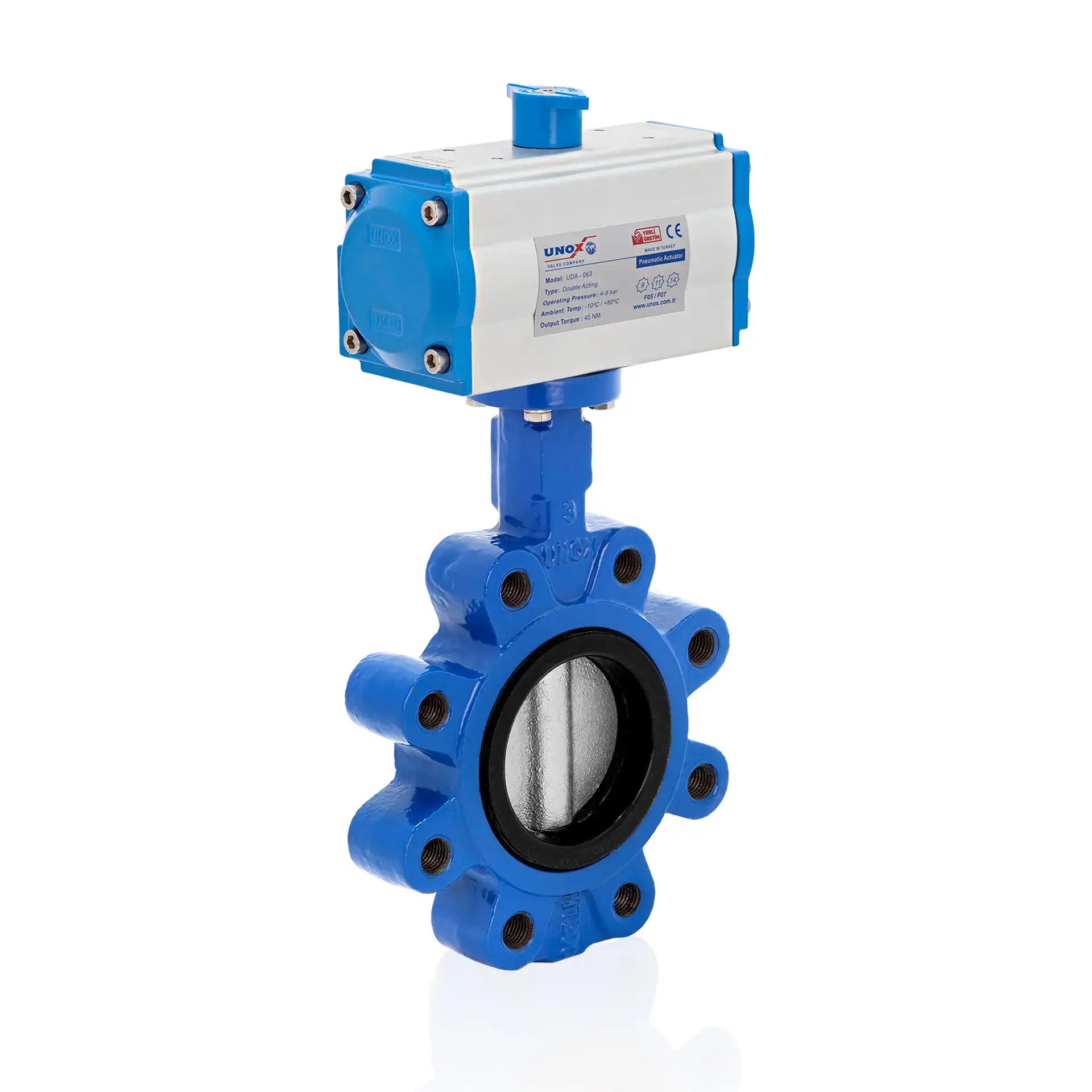

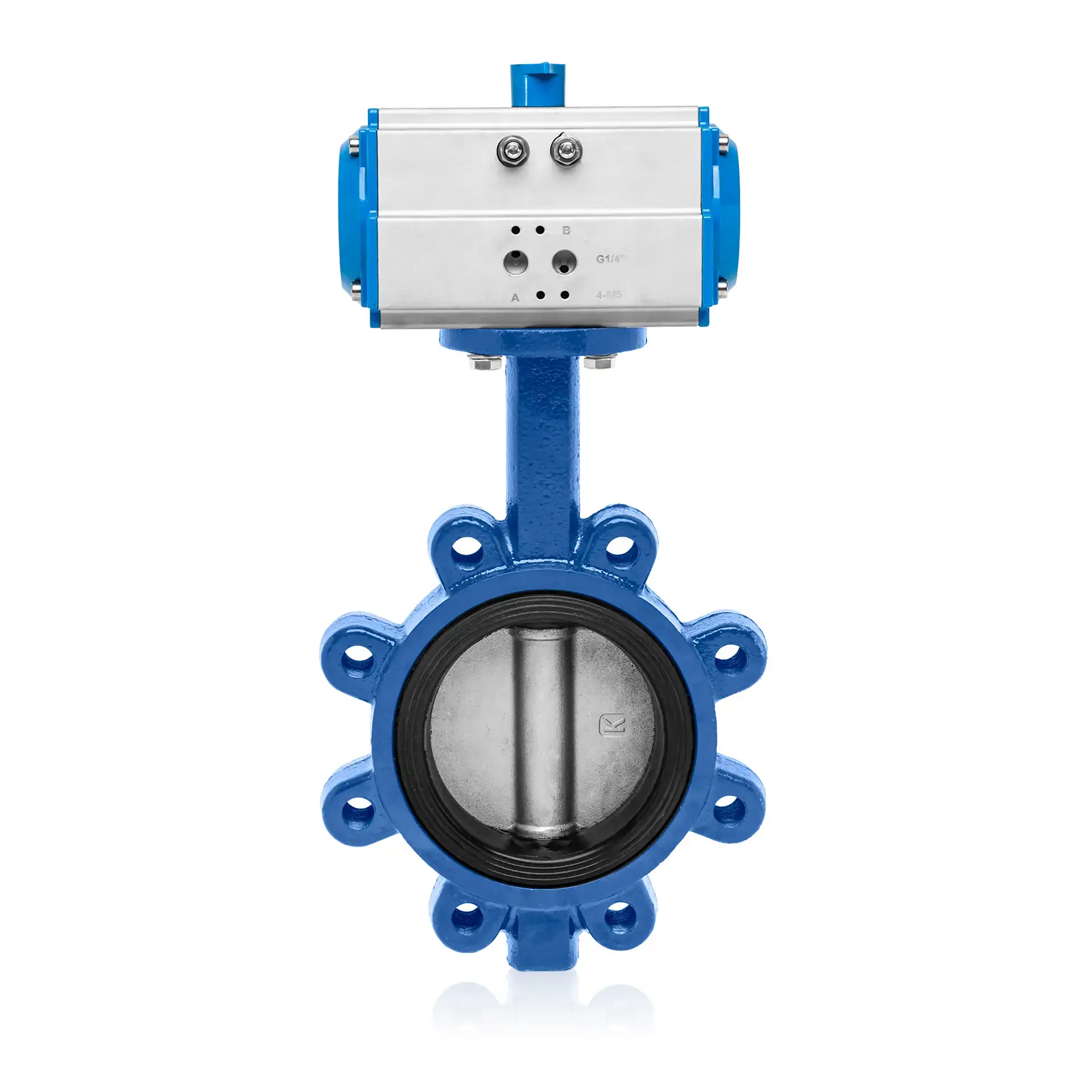

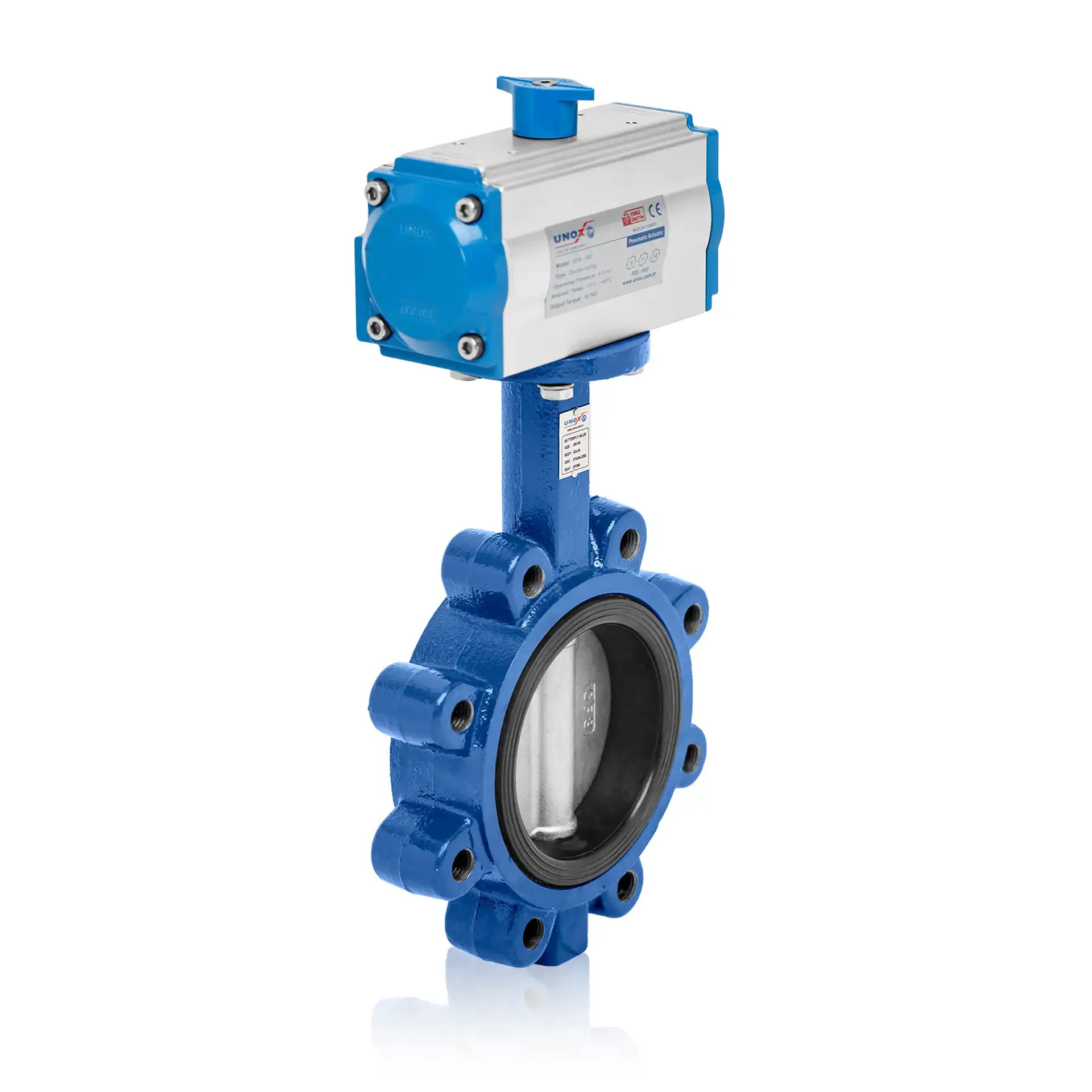

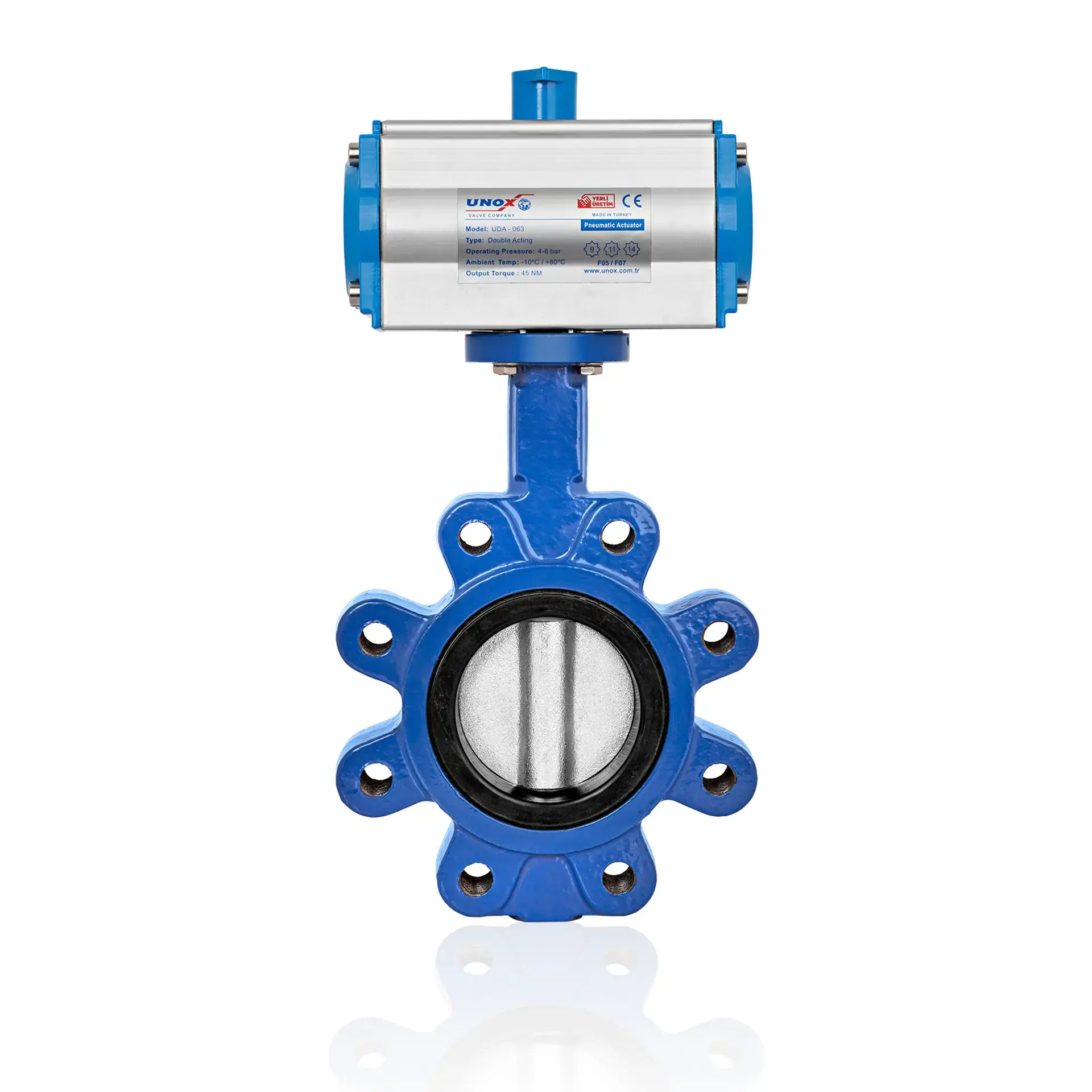

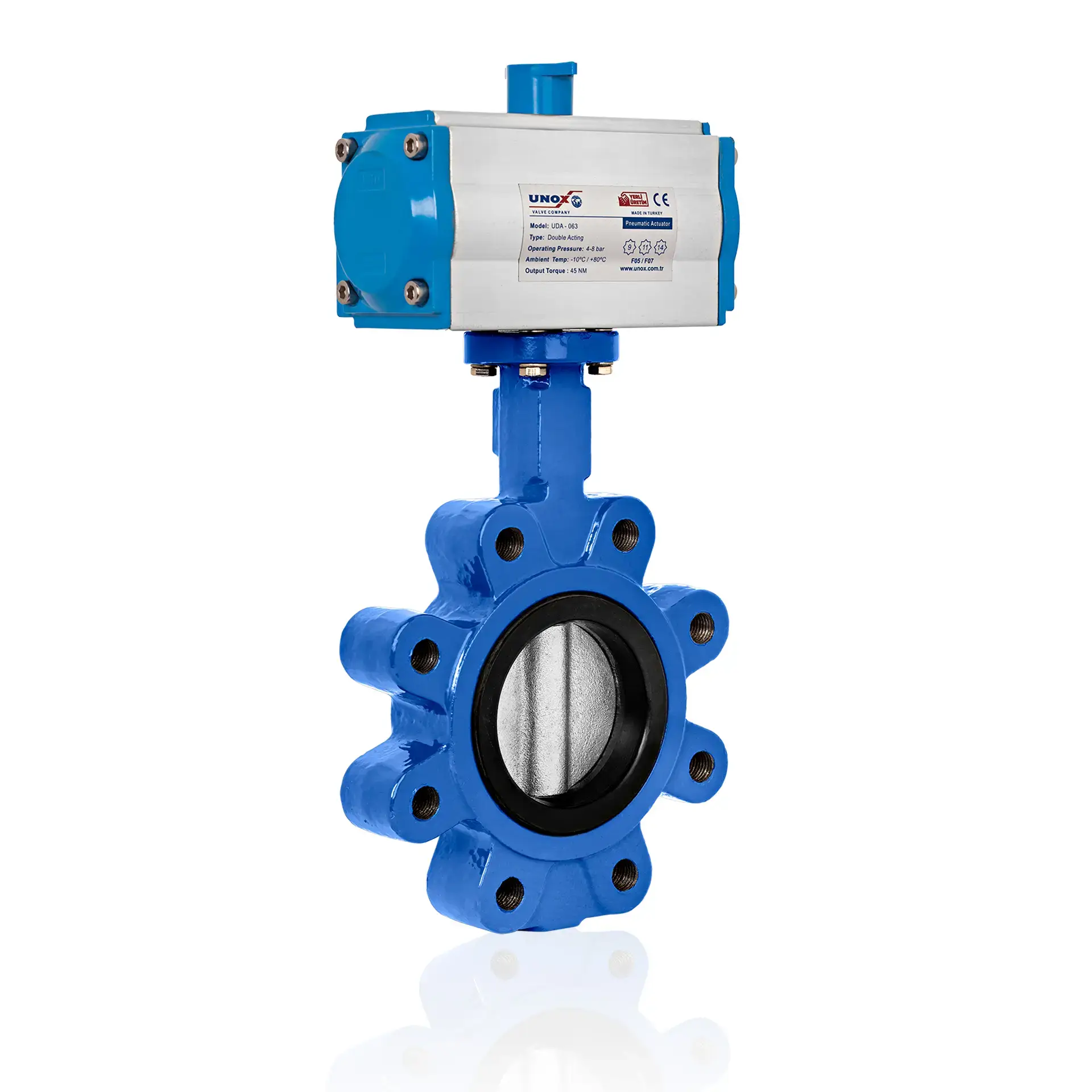

UNOX Lug Butterfly Valve Double Acting Pneumatic Iron Disc

Lug Butterfly Valve Double Acting Pneumatic Iron Disc

The UNOX Lug Butterfly Valve Double Acting Pneumatic Iron Disc provides reliable and cost-effective automated flow control for a wide range of industrial applications. Designed with a GGG-40 ductile iron body and a GGG40.3 nickel-plated ductile iron disc, this valve offers exceptional mechanical strength, high impact resistance, and excellent corrosion protection. The AISI420 stainless steel shaft and EPDM seat ensure tight sealing, long service life, and compatibility with water, air, and other neutral fluids.

Built to handle PN16 pressure (232 psi) and a maximum operating temperature of 120 °C (248 °F), it is perfectly suited for HVAC systems, water treatment facilities, chemical plants, and general industrial piping. The double acting pneumatic actuator delivers fast, precise, and repeatable bidirectional opening and closing, making it ideal for on/off and modulating service.

The lug type body, manufactured to TS EN 1092-2 standards, enables easy installation and removal from pipelines, even when one side remains pressurized, and provides secure end-of-line service. An electrostatic powder coating further enhances resistance to corrosion and extends operational life.

Choose the UNOX Lug Butterfly Valve Double Acting Pneumatic Iron Disc for dependable performance, efficient automation, and minimal maintenance in demanding flow-control environments.

Key Technical Features

• Body: GGG-40 ductile iron
• Disc: GGG40.3 nickel-plated ductile iron
• Shaft: AISI420 stainless steel
• Seat: EPDM
• Maximum Pressure: PN16 (232 psi)
• Maximum Temperature: 120 °C (248 °F)
• Connection: Lug type TS EN 1092-2
• Coating: Electrostatic powder paint
• Actuation: Double acting pneumatic
