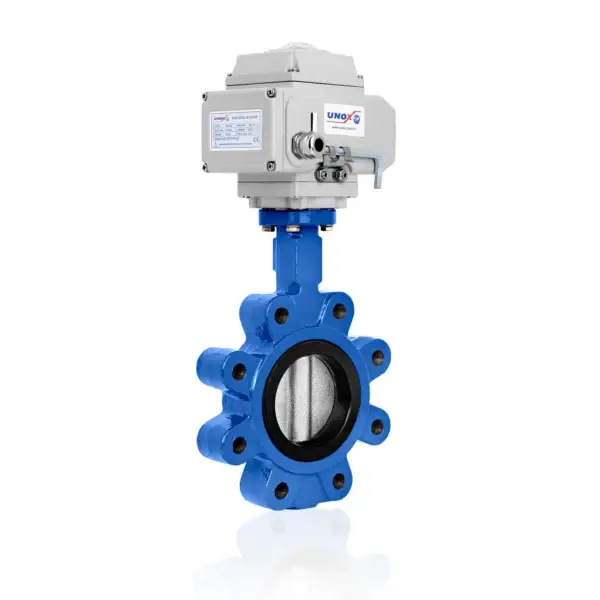

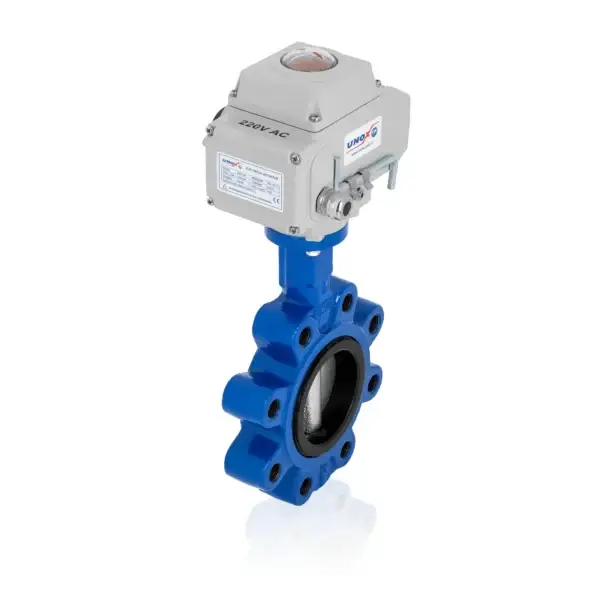

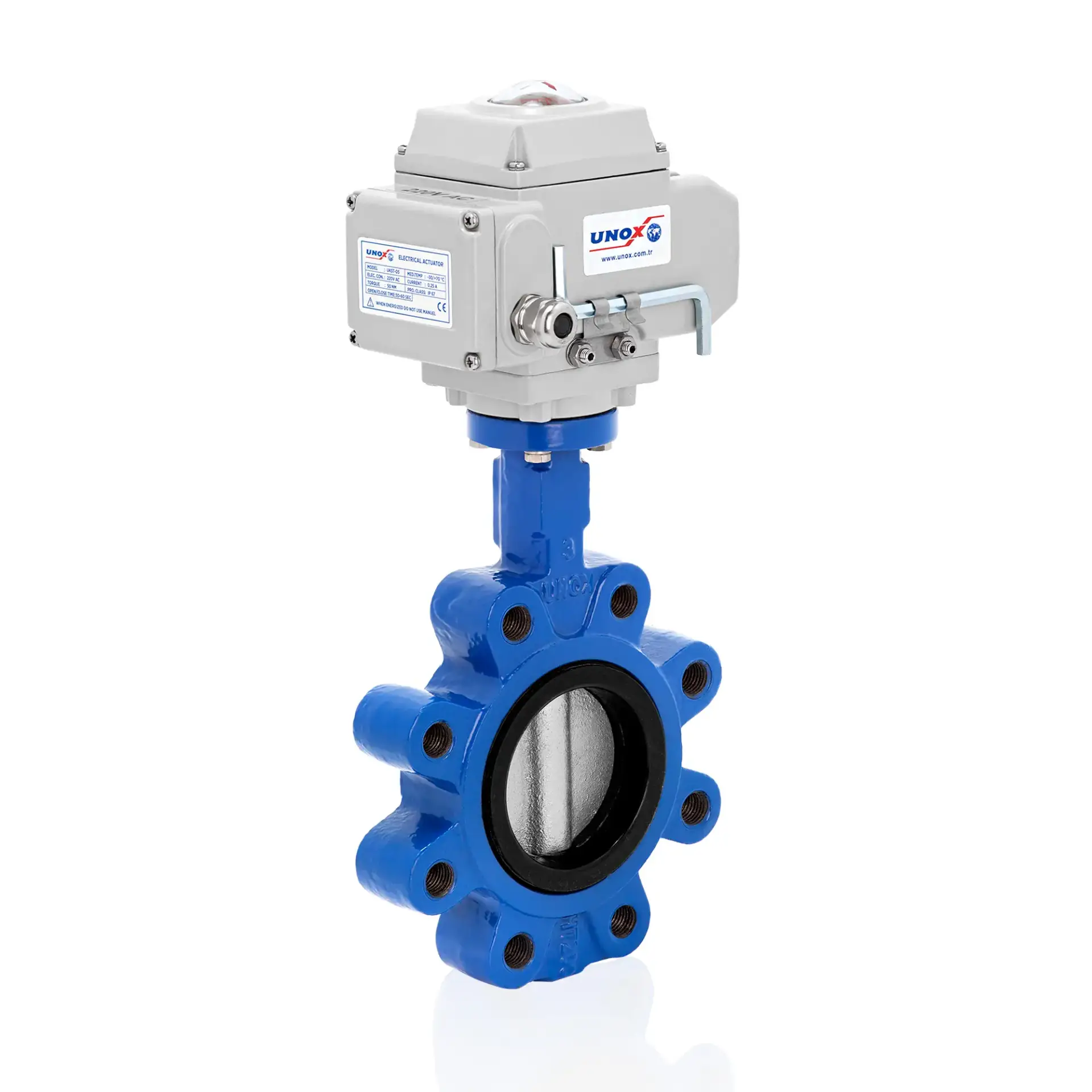

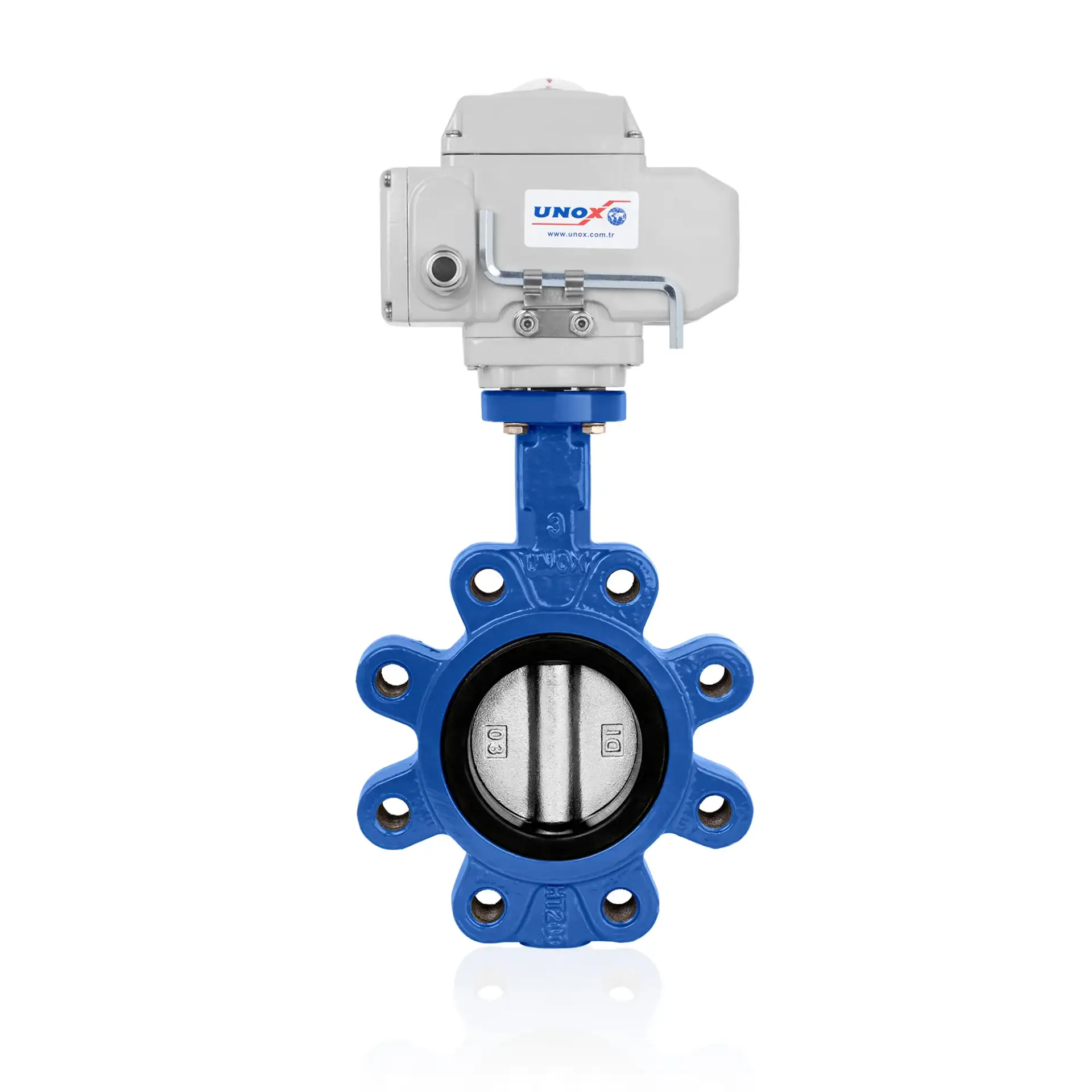

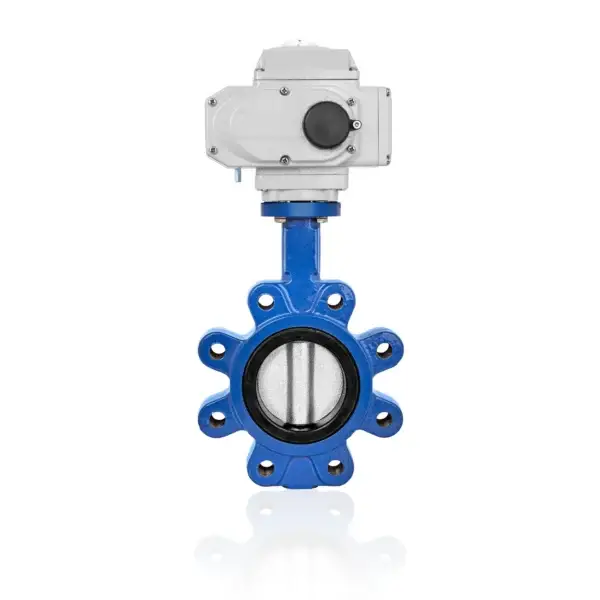

Unox Iron Disc Lug Butterfly Valve With Electric Actuator
The UNOX Iron Disc Lug Butterfly Valve With Electric Actuator is a high-performance automated valve designed for reliable flow control in industrial, HVAC, and water treatment systems. Its lug-type design allows the valve to be installed at the end of pipelines or between flanges without disturbing adjacent lines, providing flexibility and easy maintenance.
Built with a cast iron (GGG40.3) body and a durable iron disc, this valve ensures exceptional mechanical strength and long service life. The EPDM seat provides excellent sealing performance, high elasticity, and resistance to water, steam, and mild chemicals.
The electric actuator enables smooth and precise On/Off control, available in 110V AC, 220V AC, and 24V DC options to fit different automation systems. It is equipped with a manual override, visual position indicator, and IP67-rated weatherproof housing, ensuring reliable operation in demanding industrial environments.
Key Features:
- Body Material: Cast Iron (GGG40.3)
- Disc Material: Iron
- Seat Material: EPDM
- Design Type: Lug Type – easy installation and removal from pipelines
- Actuator Type: Electric actuator with On/Off control
- Voltage Options: 110V AC / 220V AC / 24V DC
- Working Pressure: Up to 16 Bar (≈230 PSI)
- Temperature Range: -10 °C to +120 °C (14 °F to 248 °F)
- Protection Class: IP67-rated weatherproof enclosure
- Connection Standard: ISO 5211 mounting pad
- Applications: HVAC systems, water distribution, irrigation, and industrial automation
The UNOX Iron Disc Lug Butterfly Valve With Electric Actuator delivers a dependable, compact, and energy-efficient solution for automated flow control. Its rugged design and electric operation make it ideal for modern industrial applications where precision, safety, and durability are essential.
