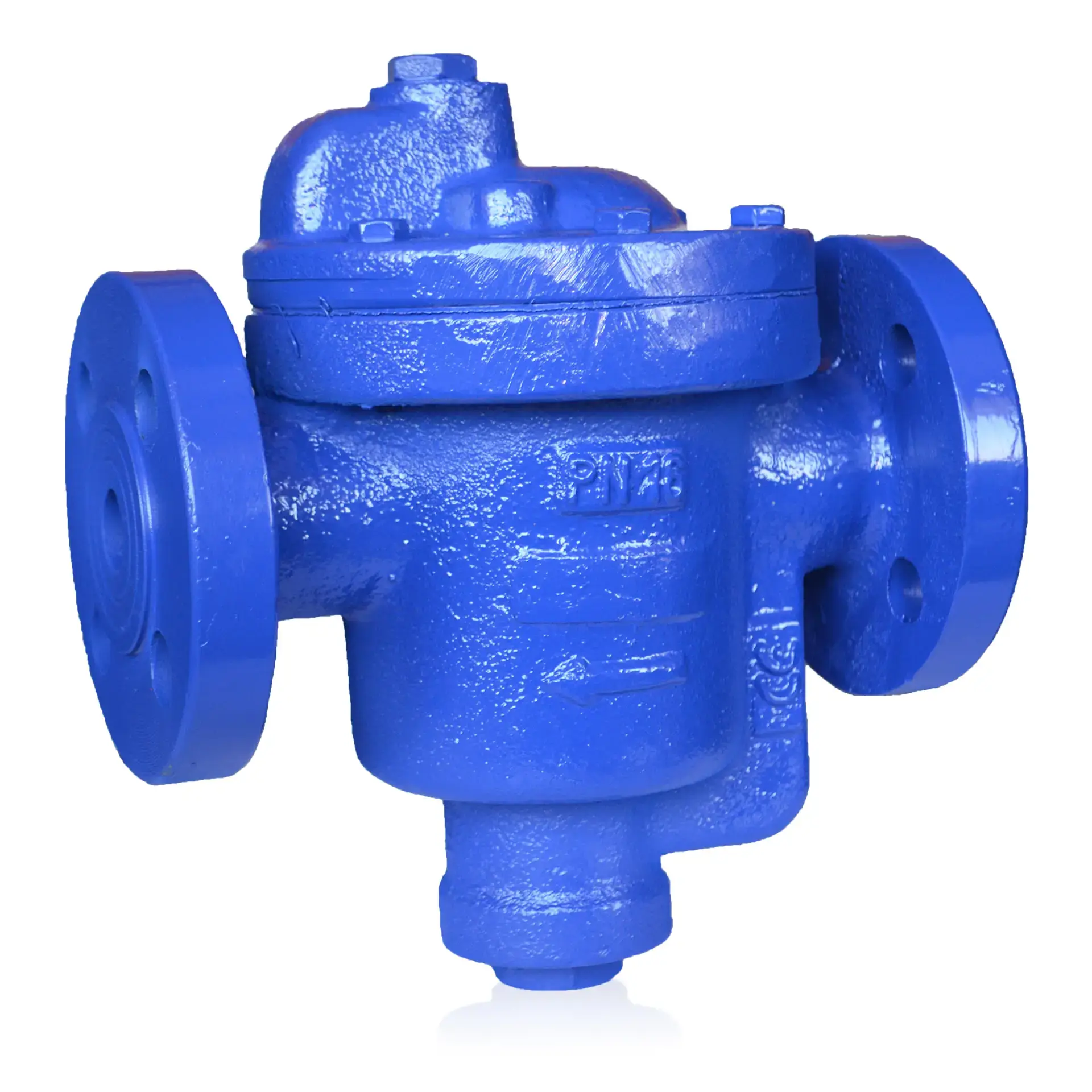

UNOX Inverted Bucket Steam Trap Flanged

UNOX Inverted Bucket Steam Trap Flanged

The UNOX Inverted Bucket Steam Trap Flanged is designed to provide durable and efficient condensate discharge in industrial steam systems. Built with a GGG 40.3 ductile iron body and GGG cast iron cover, this robust steam trap ensures long-lasting reliability and resistance to high pressures and temperatures. The inverted bucket mechanism is ideal for continuous condensate drainage and effective air venting, ensuring optimum system performance and energy efficiency.

This model operates safely under a maximum working pressure of 16 bar (≈232 psi) and a maximum working temperature of 250 °C (≈482 °F). It also offers a pressure differential (Δp) range of 4.5 – 14 bar (≈65 – 203 psi), ensuring stable operation even under fluctuating load conditions. The flanged connection (DIN standard) provides easy and secure installation for various pipeline configurations.

Key Features:

• Body: GGG 40.3 Ductile Iron
• Cover: GGG Cast Iron
• Maximum Operating Pressure: 16 bar (≈232 psi)
• Maximum Operating Temperature: 250 °C (≈482 °F)
• Pressure Differential (Δp): 4.5 – 14 bar (≈65 – 203 psi)
• Connection: Flanged (DIN standard)

Ideal for process plants, refineries, and heating systems, the UNOX Inverted Bucket Steam Trap Flanged delivers consistent condensate removal, reducing the risk of water hammer and optimizing steam system efficiency.
