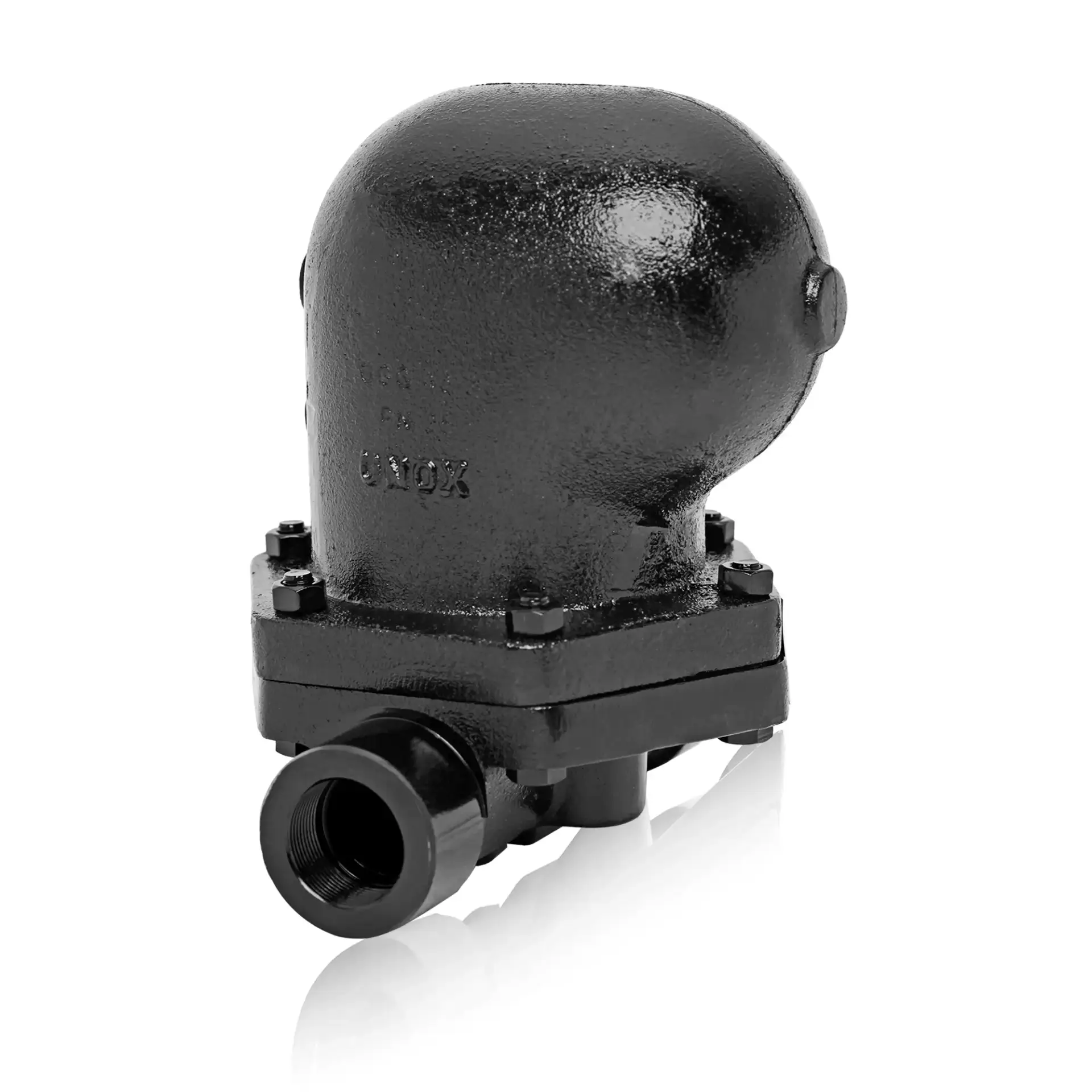

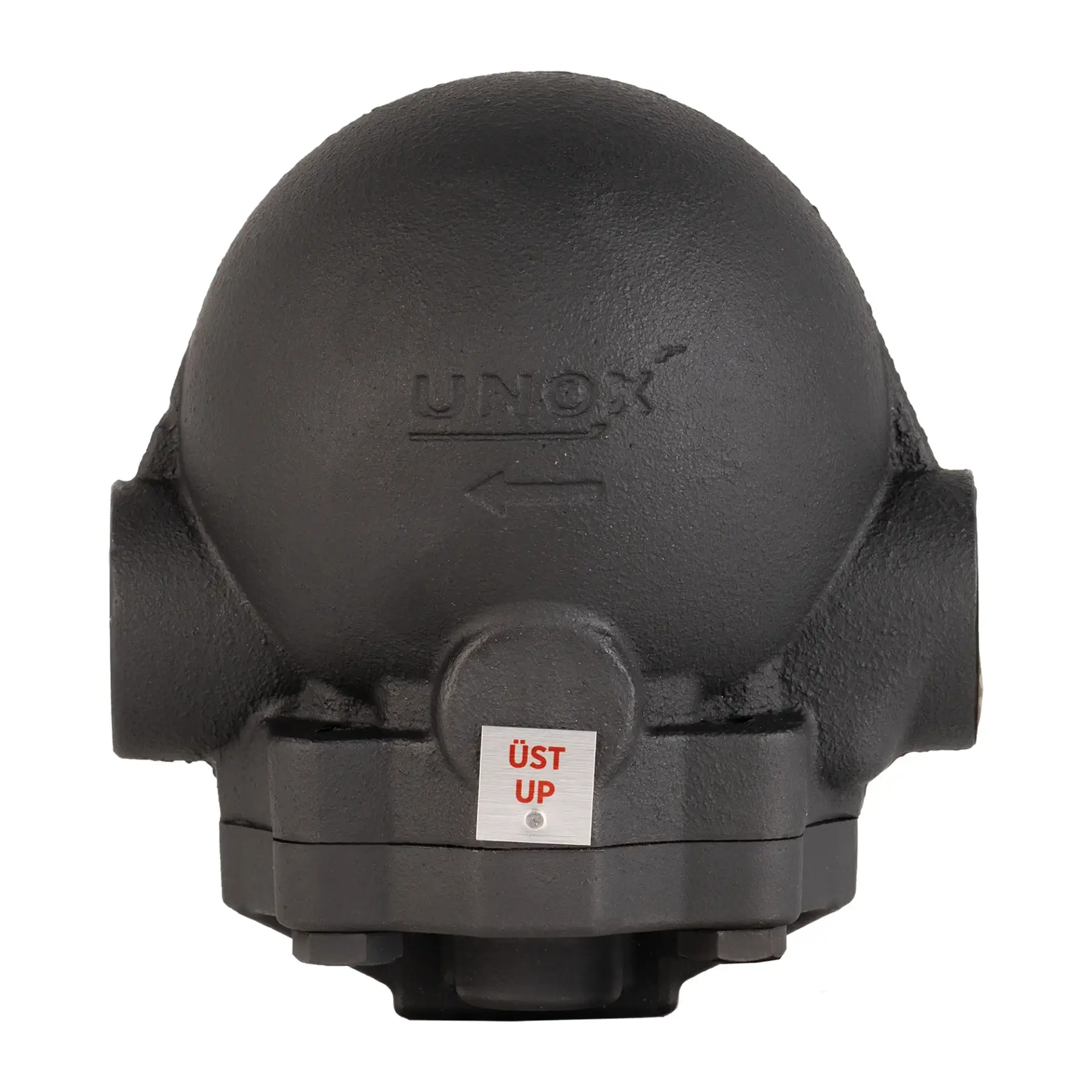

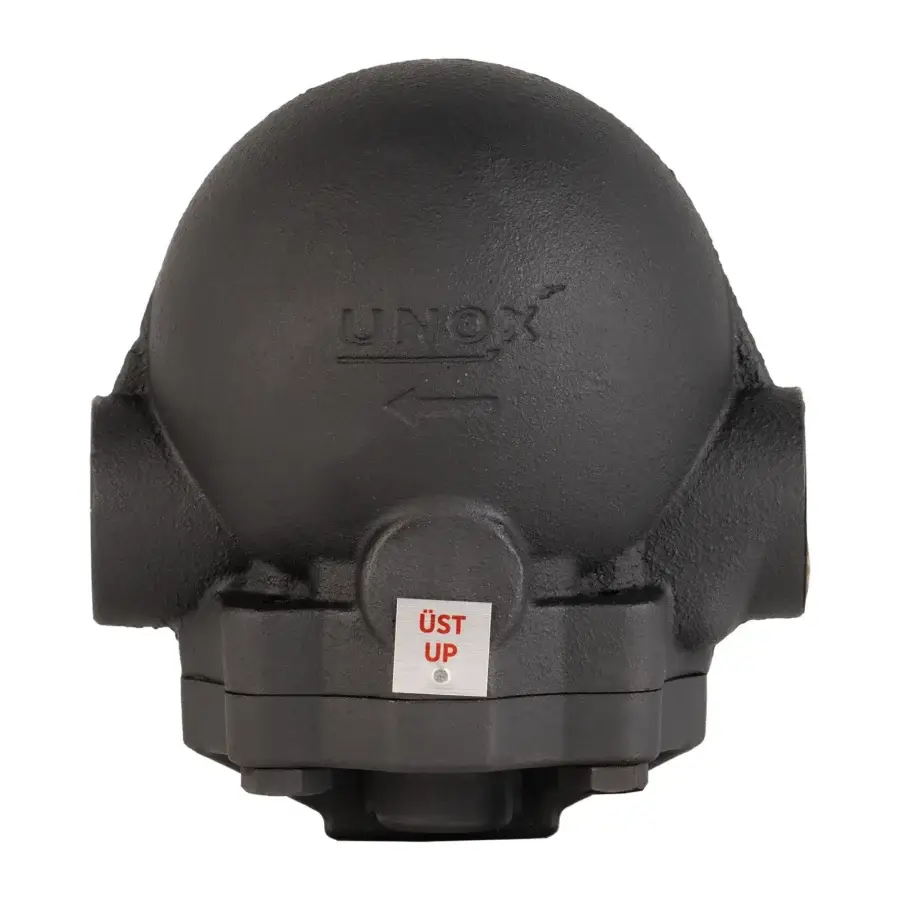

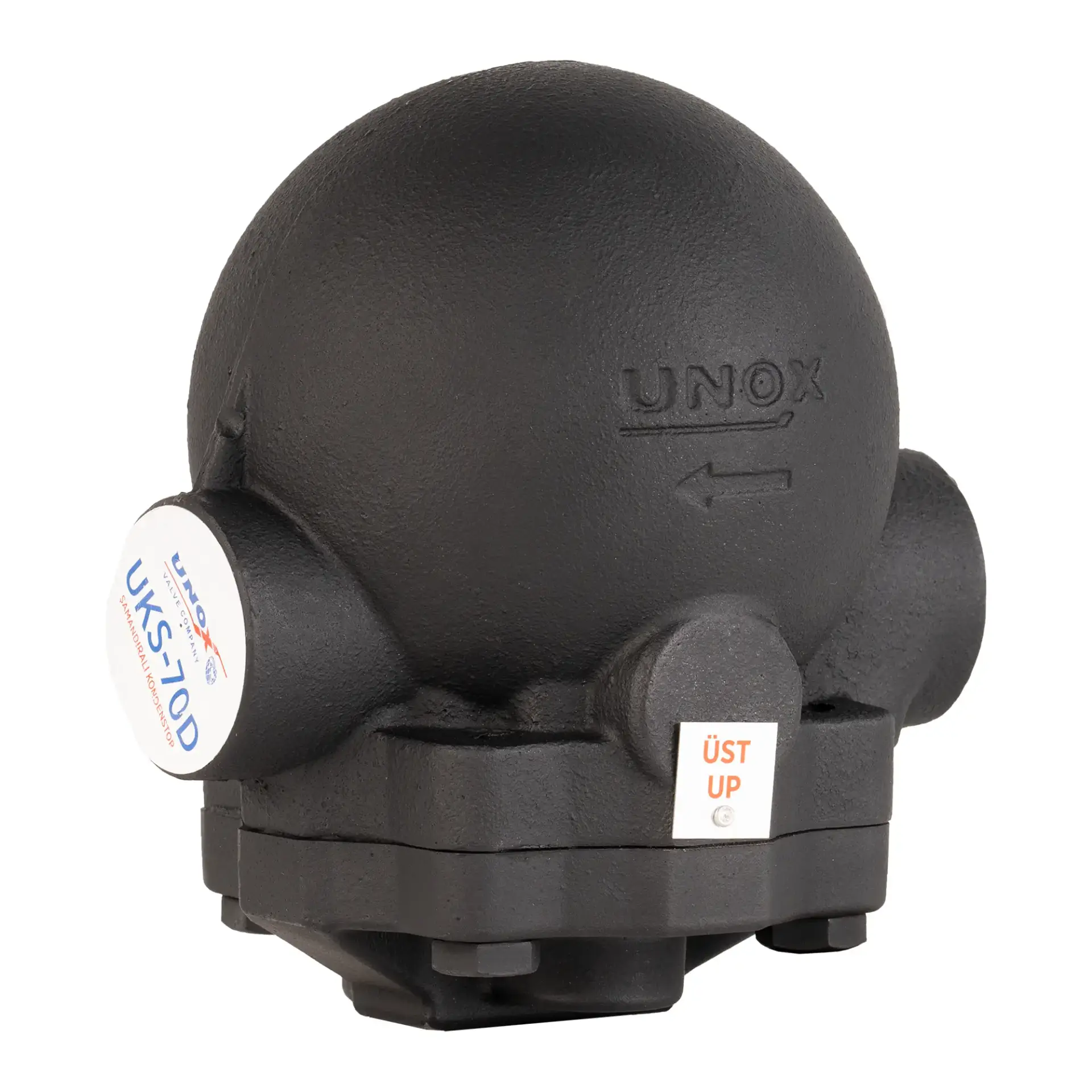

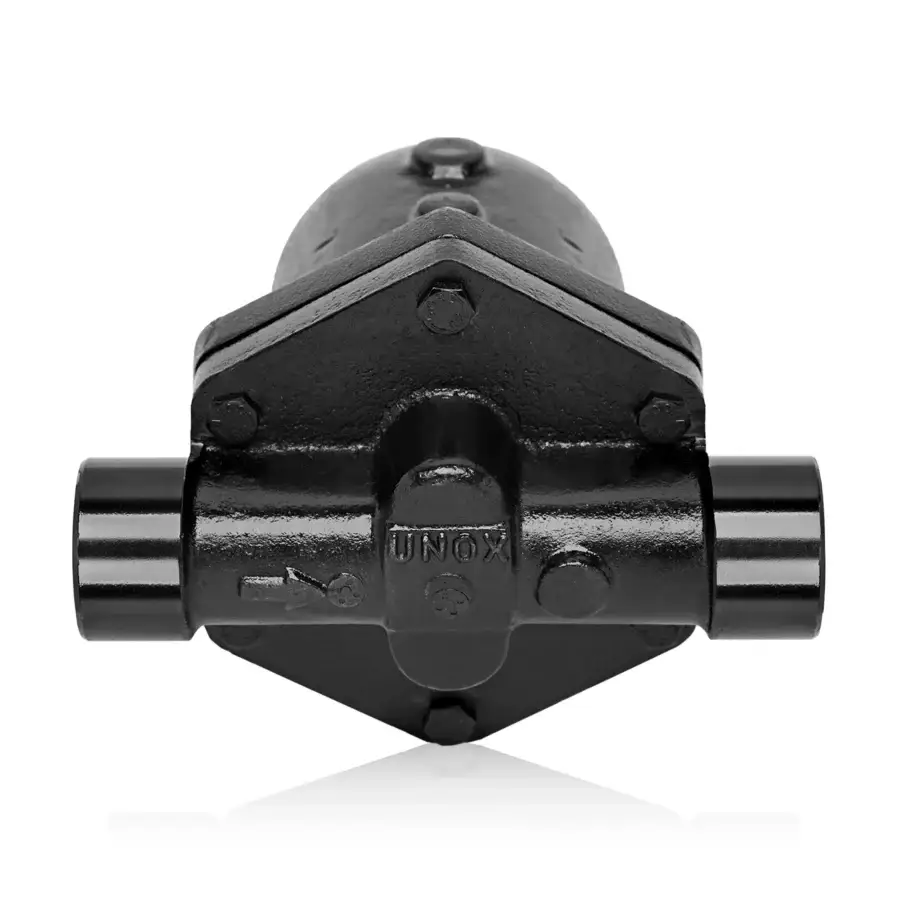

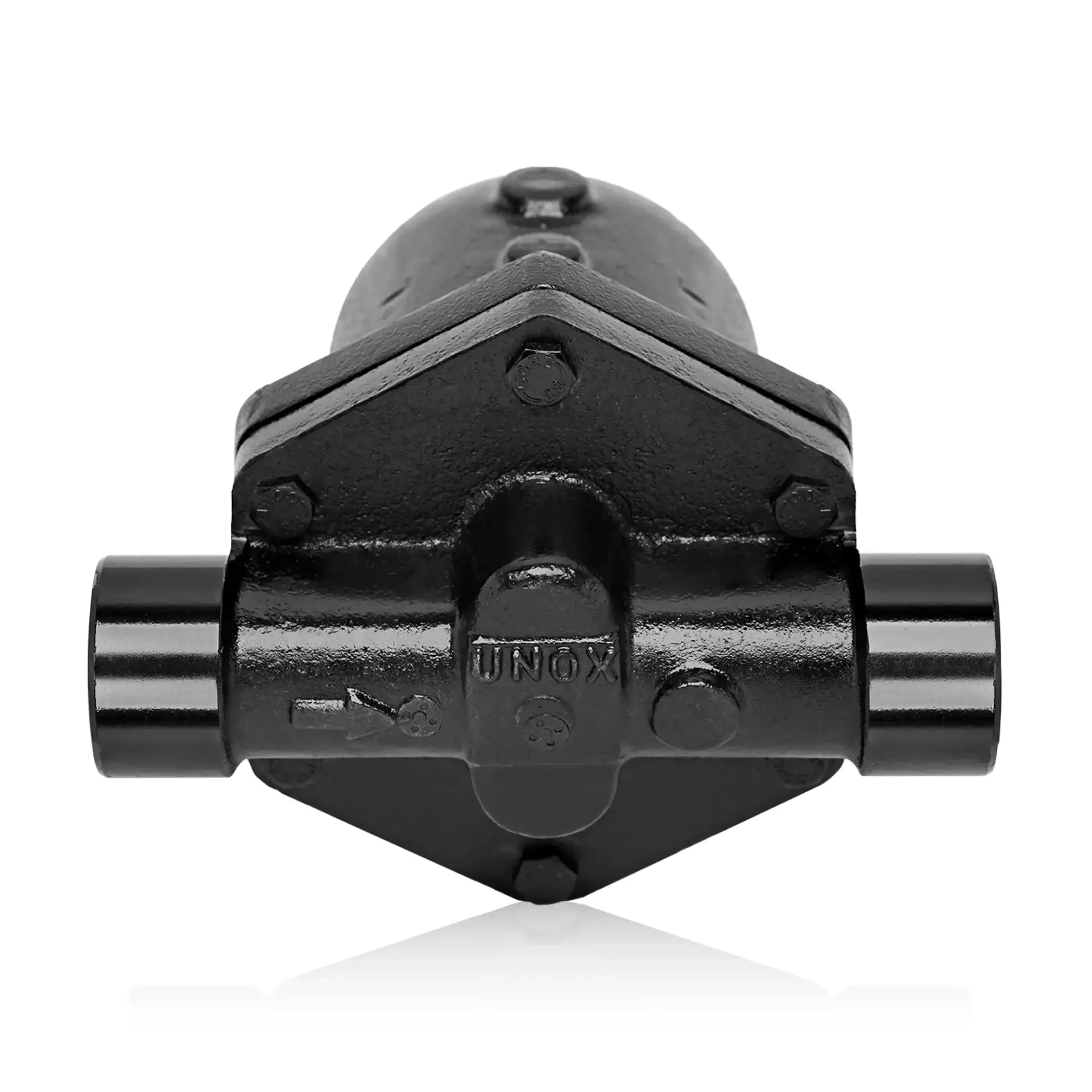

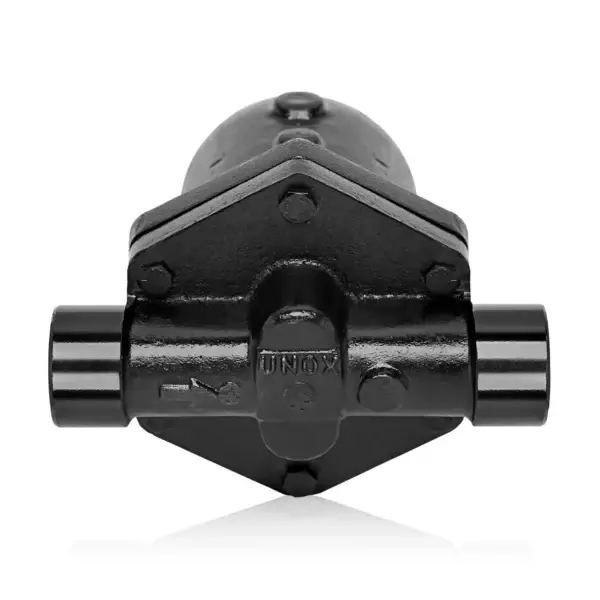

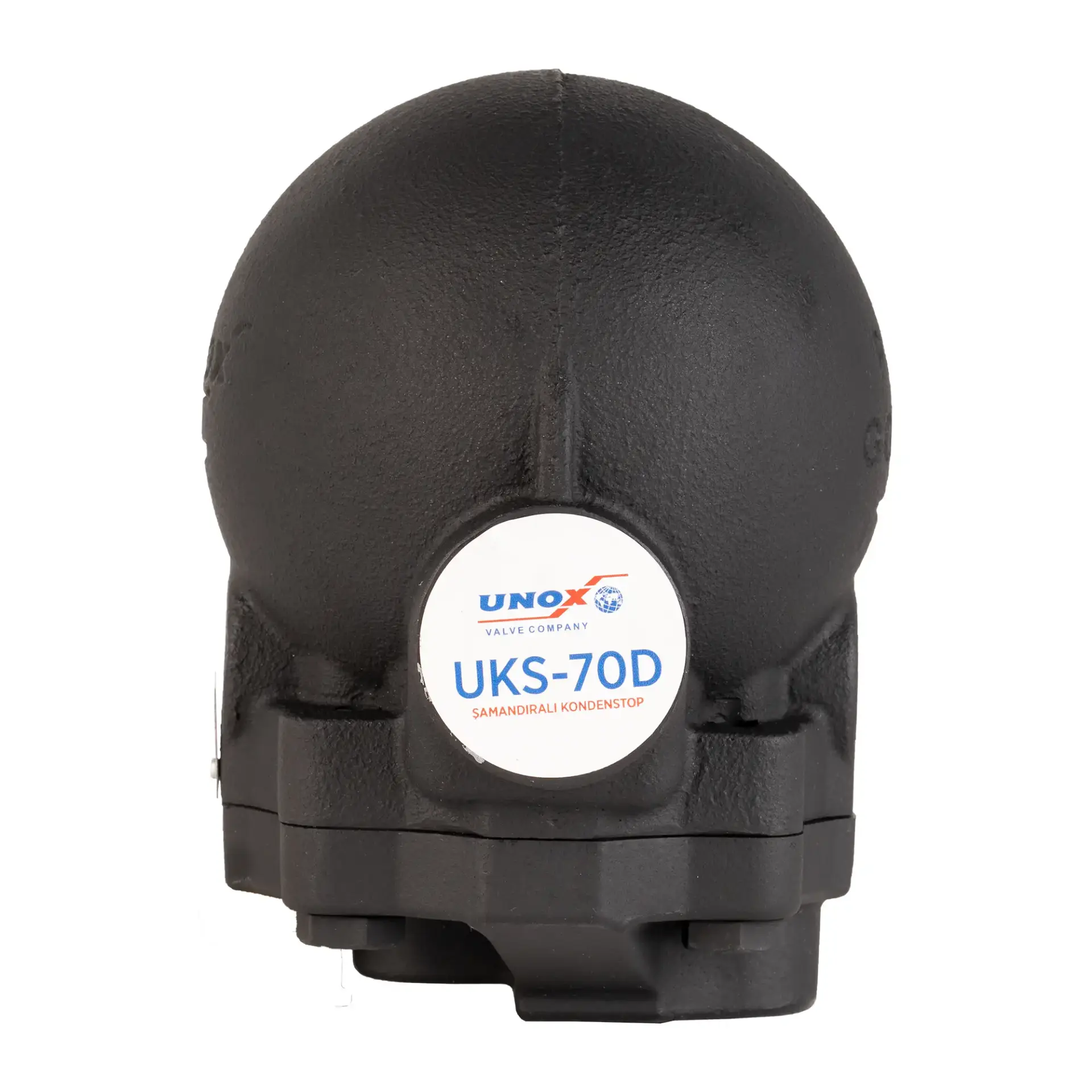

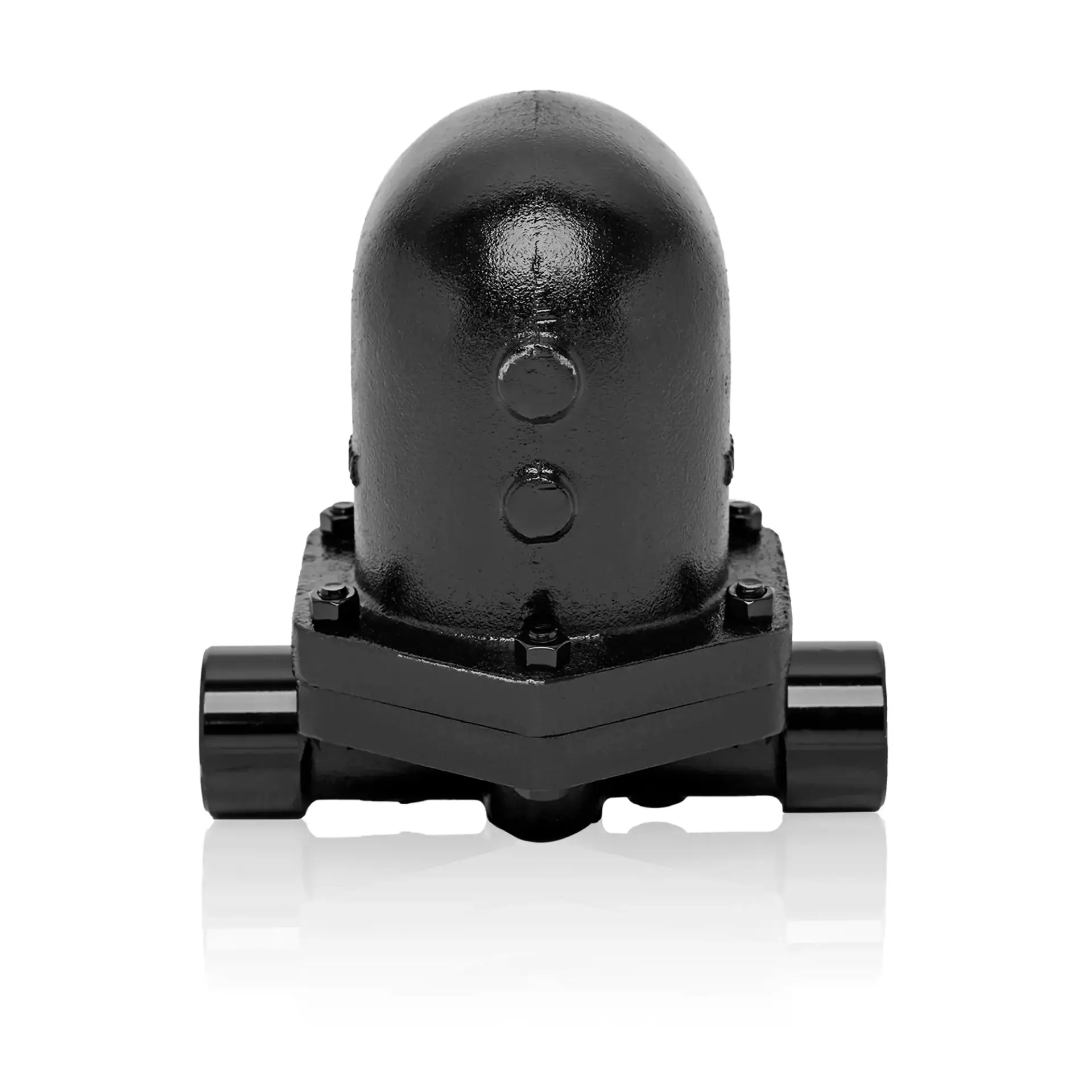

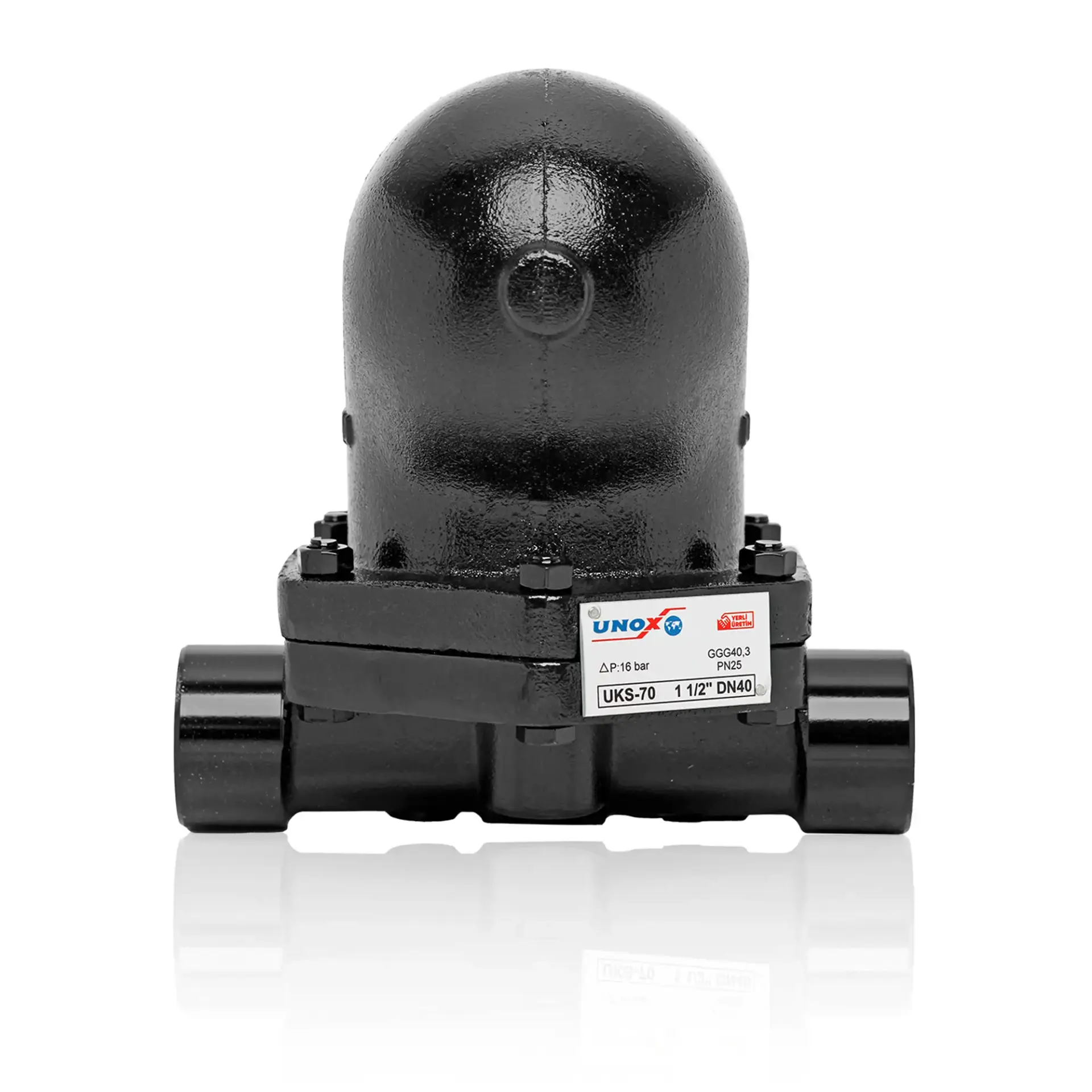

Ball Float Steam Trap – Threaded, Thermostatic
The UNOX ball float steam trap provides reliable condensate discharge with zero live steam loss when correctly sized. Its mechanical float design handles varying loads continuously, while the integrated thermostatic air vent accelerates start-up and removes non-condensable gases. Threaded connections simplify installation and maintenance, making it a robust choice for boilers, heat exchangers, and process lines.
With a ductile iron GGG40.3 body and cover, stainless internal components, and robust design, it ensures long service life under demanding steam conditions.
Key Features
- Mechanical ball float design for continuous condensate removal
- Built-in thermostatic air vent for fast start-up & air discharge
- Threaded connections (NPT/BSP options) for quick installation
- Stable operation under light to heavy condensate loads
- Service-friendly construction; spare parts available
- Suitable for boilers, heat exchangers, unit heaters, tracing, and process lines
Technical Specifications
- Body: GGG40.3 Ductile Iron
- Cover: GGG40.3 Ductile Iron
- Max. Working Pressure: 16 bar (232 psi)
- Max. Working Temperature: 250°C (482°F)
- Type: Ball Float + Thermostatic Air Vent
- Connection: Threaded (NPT/BSP)
- Orientation: Horizontal installation (standard)
You can watch our “How It Works Ball Float Steam Trap – Ball Float Steam Trap Working Principle” video below.
