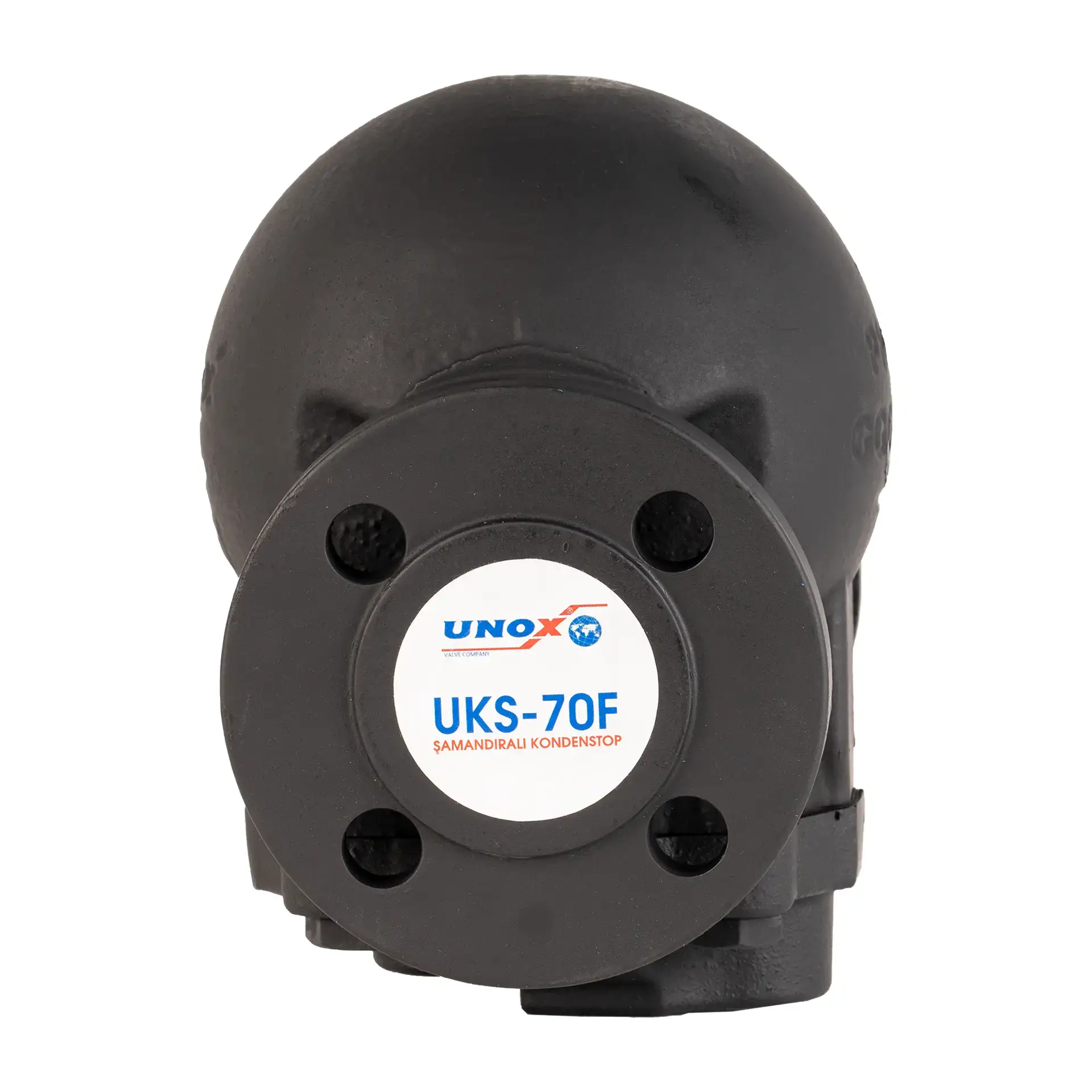

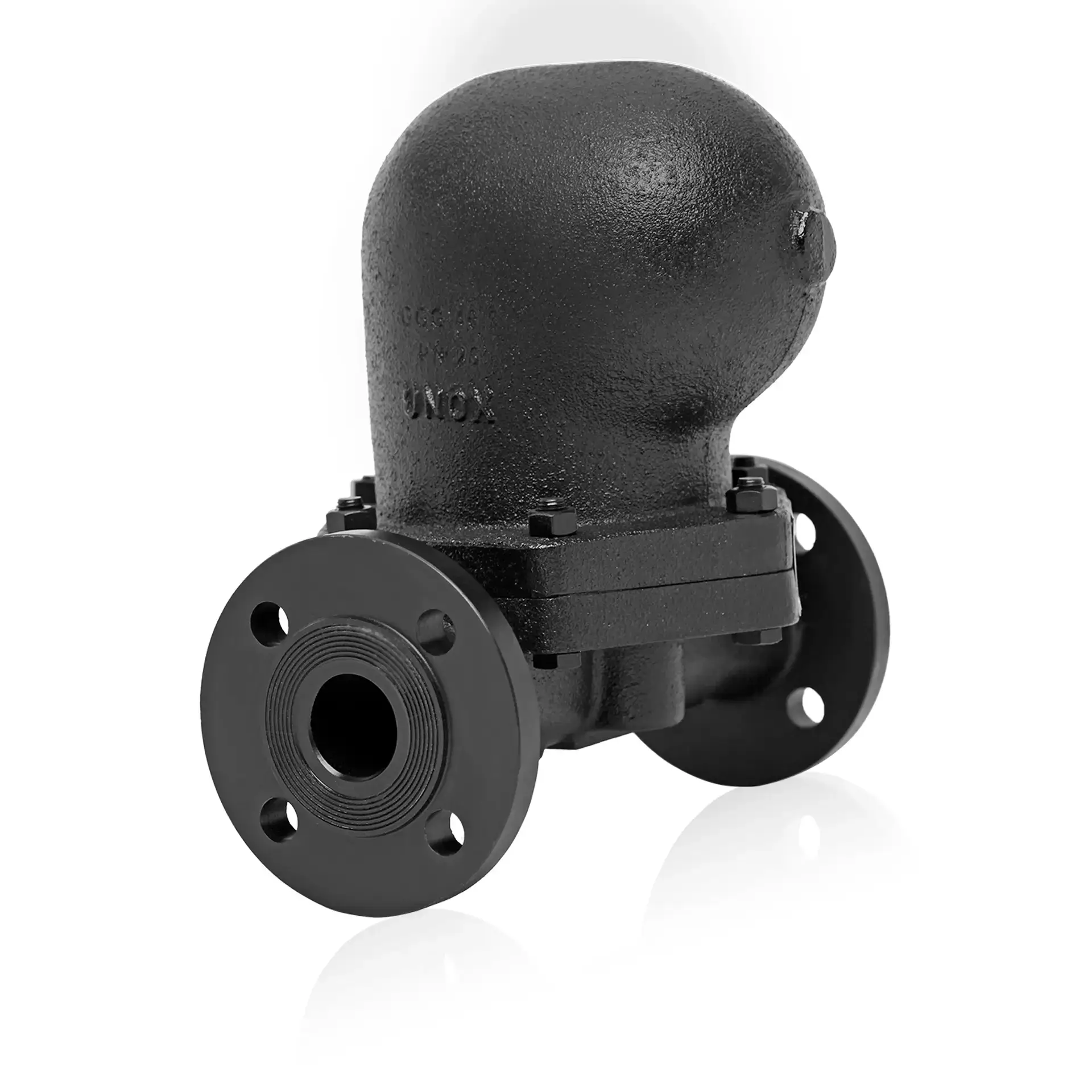

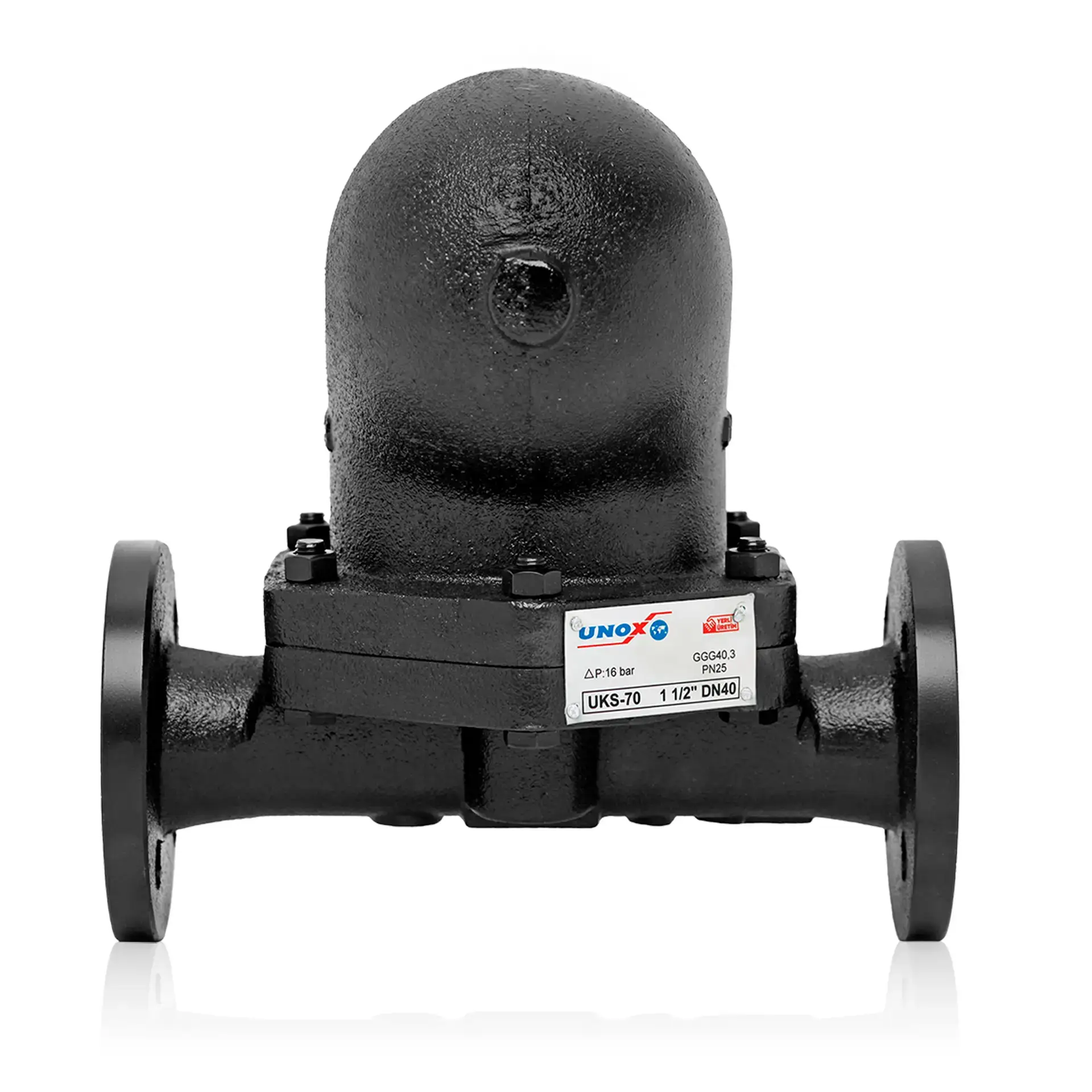

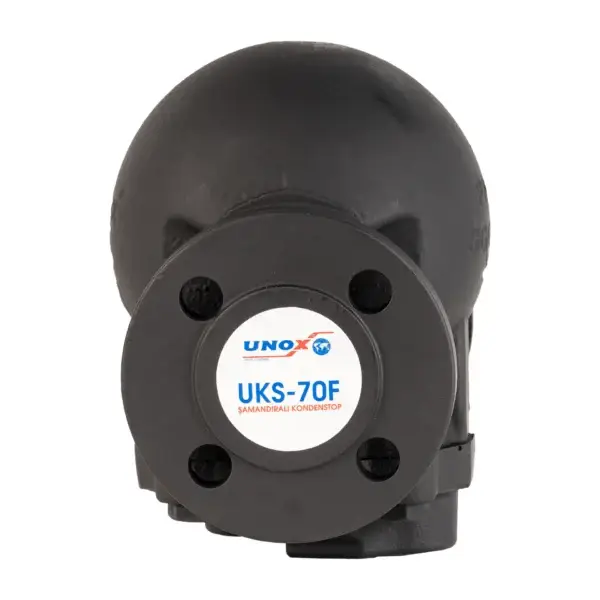

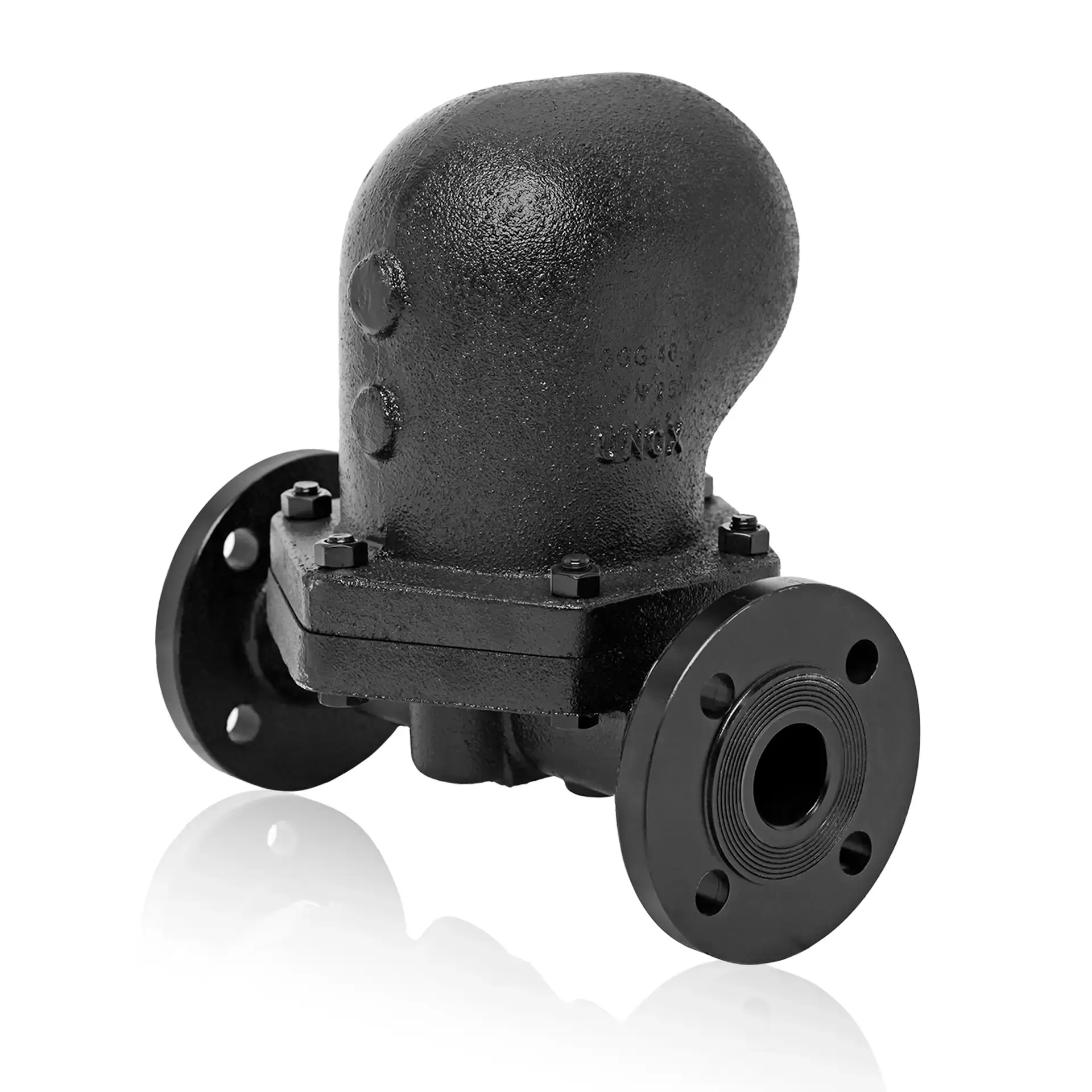

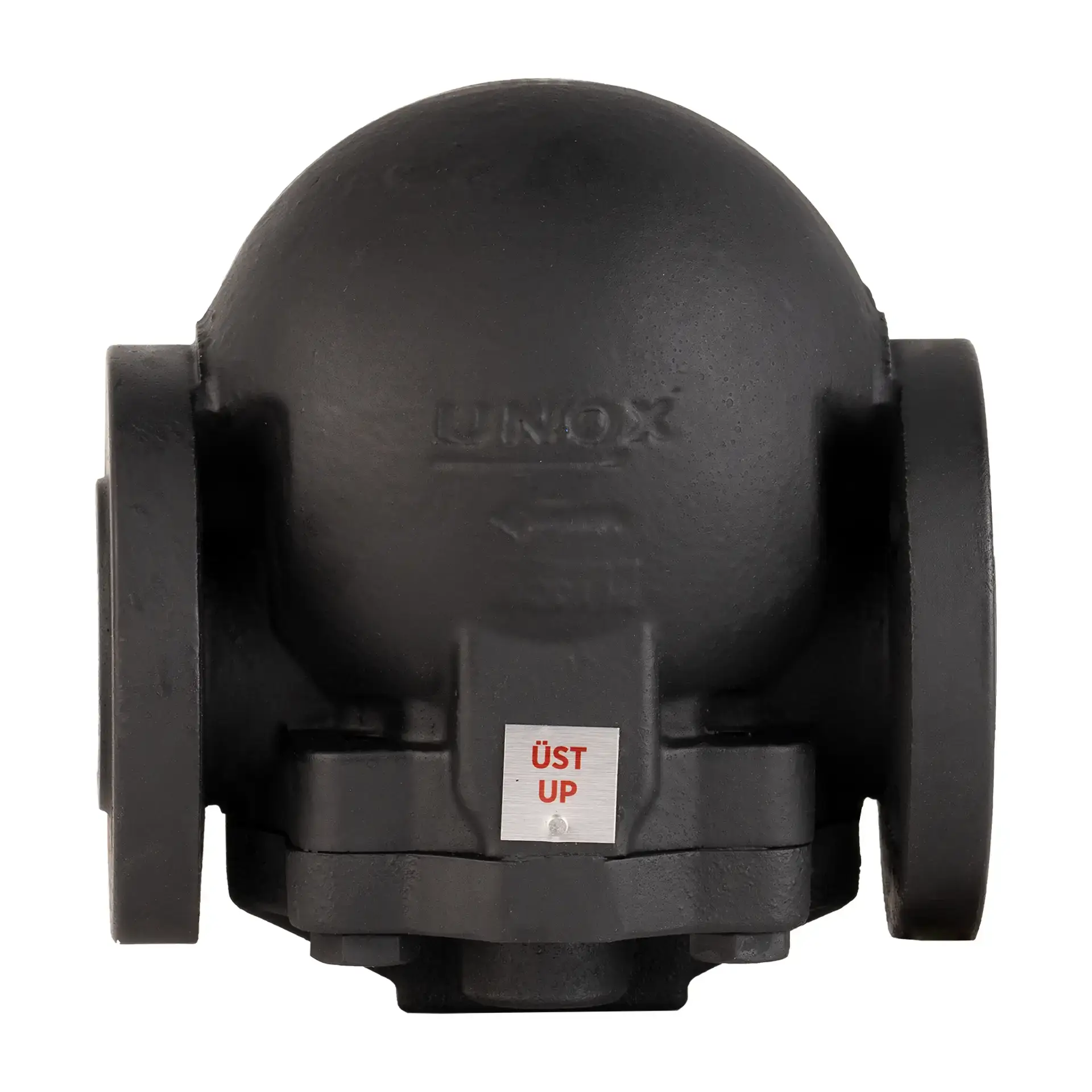

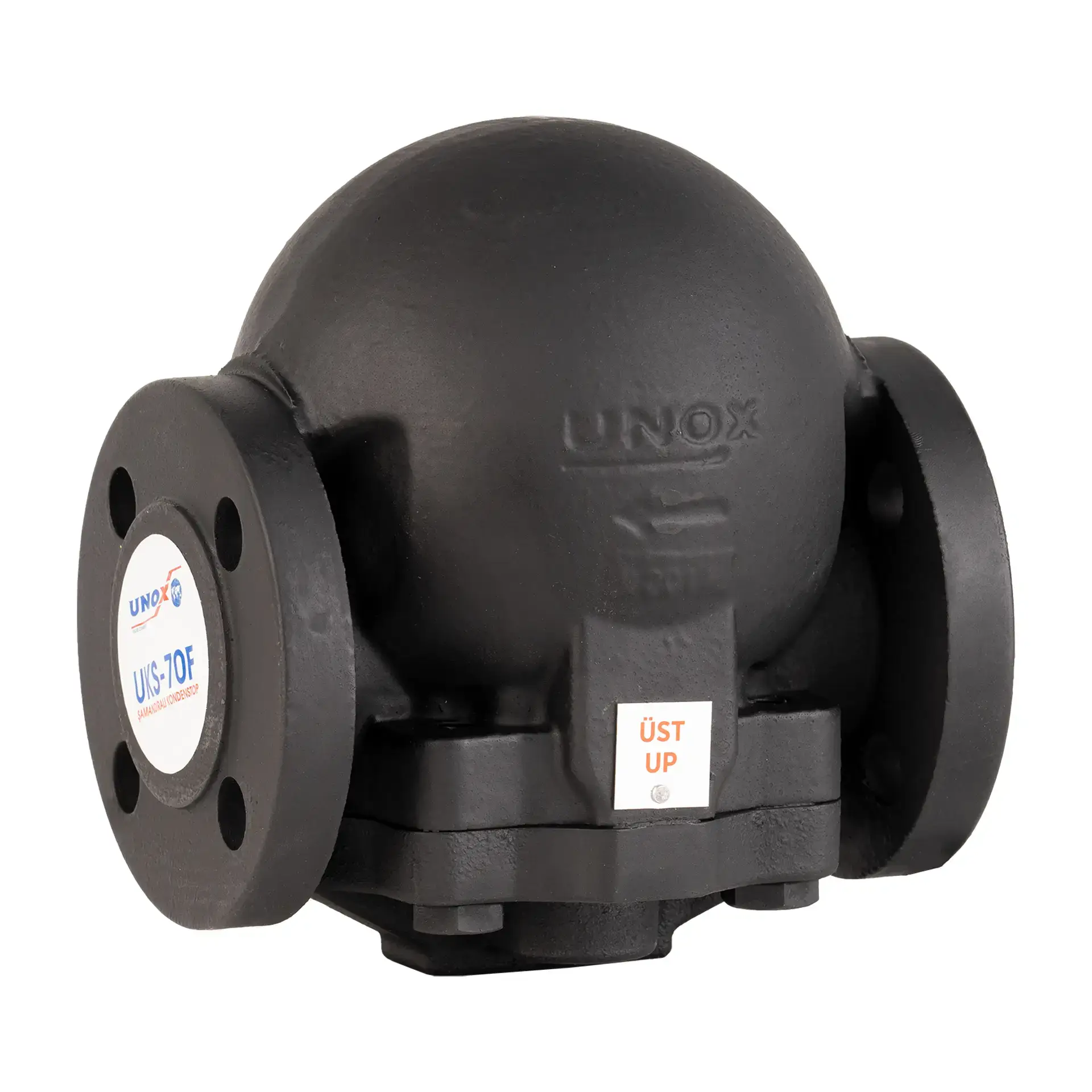

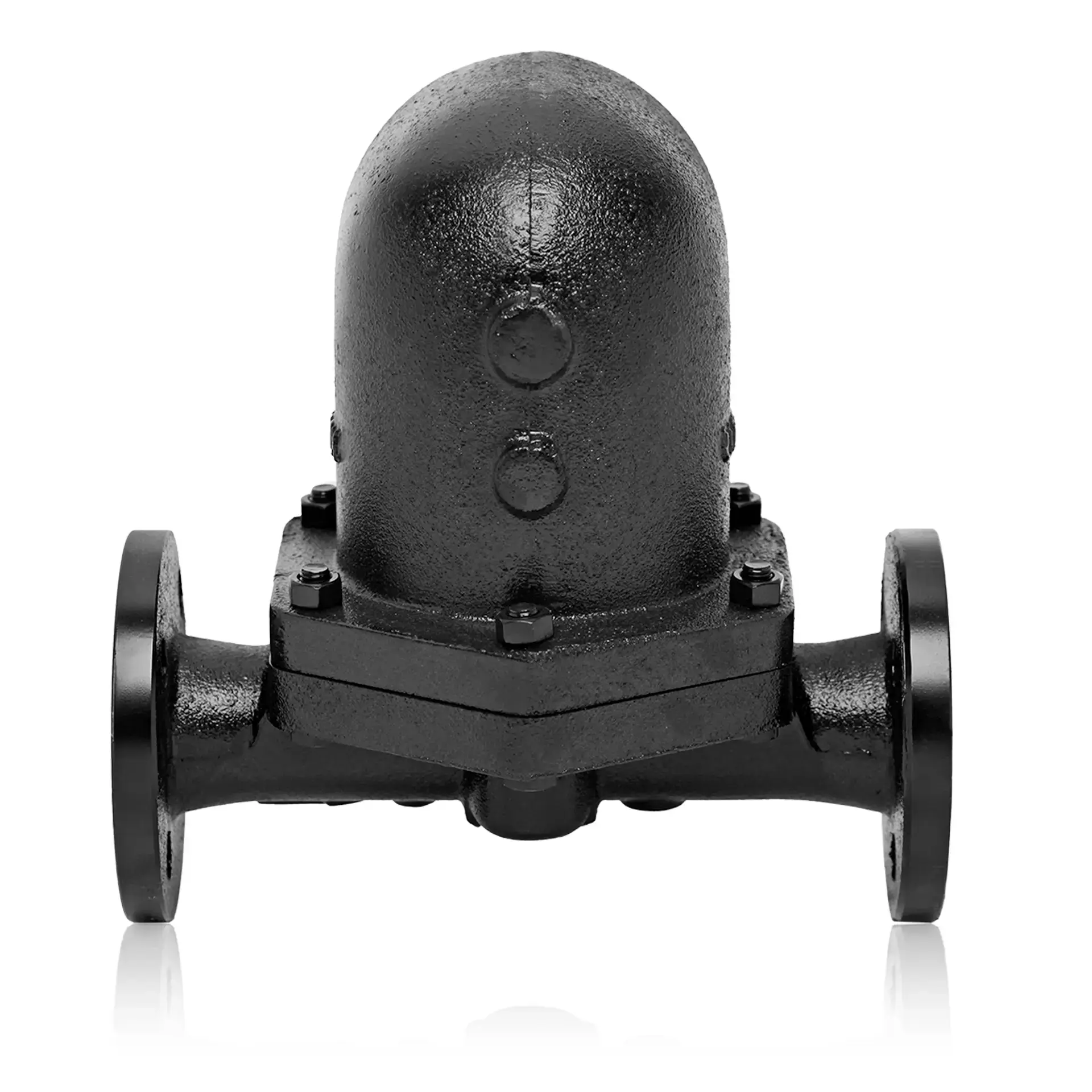

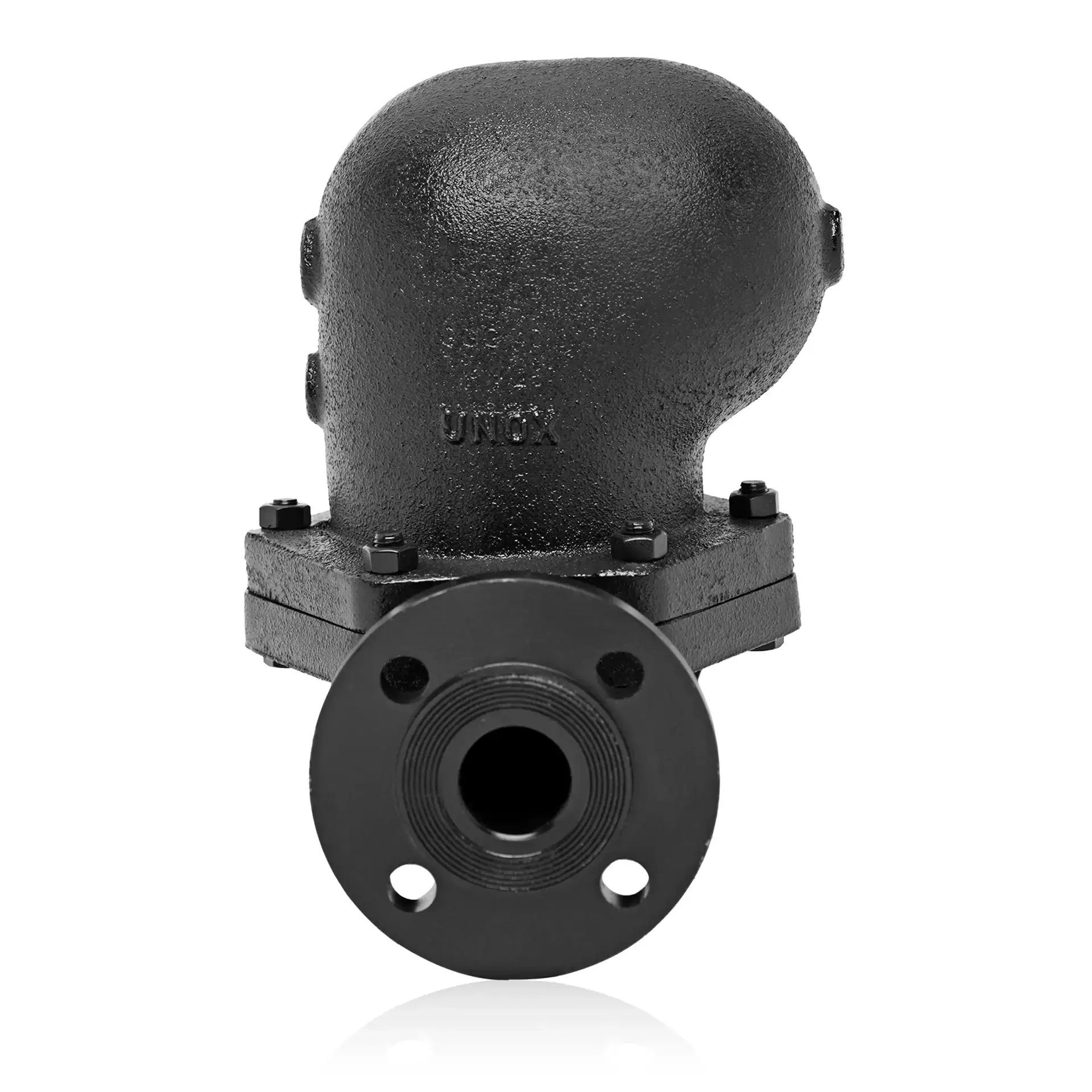

UNOX Ball Float Steam Trap Flanged Thermostatic

UNOX Ball Float Steam Trap Flanged Thermostatic

The UNOX Ball Float Steam Trap Flanged is designed to ensure reliable and continuous condensate discharge in steam and process systems. Constructed with a GGG 40.3 ductile iron body and GGG cast iron cover, it provides exceptional strength and long service life even in demanding industrial conditions. This trap operates automatically, efficiently removing condensate while preventing steam loss, which helps maintain system energy efficiency and process stability.

It is engineered to handle a maximum operating pressure of 16 bar (232 psi) and a maximum operating temperature of 250 °C (482 °F). The trap’s pressure differential (Δp) range of 4.5 – 14 bar (65 – 203 psi) allows stable performance under varying load conditions. Its flanged connections (DIN standard) enable secure installation and maintenance in a wide range of piping configurations, making it ideal for industrial steam systems, heat exchangers, and process equipment where reliable condensate removal is critical.

Key Features:

• Body: GGG 40.3 Ductile Iron
• Cover: GGG Cast Iron
• Maximum Operating Pressure: 16 bar (≈232 psi)
• Maximum Operating Temperature: 250 °C (≈482 °F)
• Pressure Differential (Δp): 4.5 – 14 bar (≈65 – 203 psi)
• Connection: Flanged (DIN standard)

This robust and maintenance-friendly steam trap delivers consistent performance and energy savings, making it a reliable choice for industrial steam networks and high-temperature process applications.

You can watch our “How It Works Ball Float Steam Trap – Ball Float Steam Trap Working Principle” video below.
