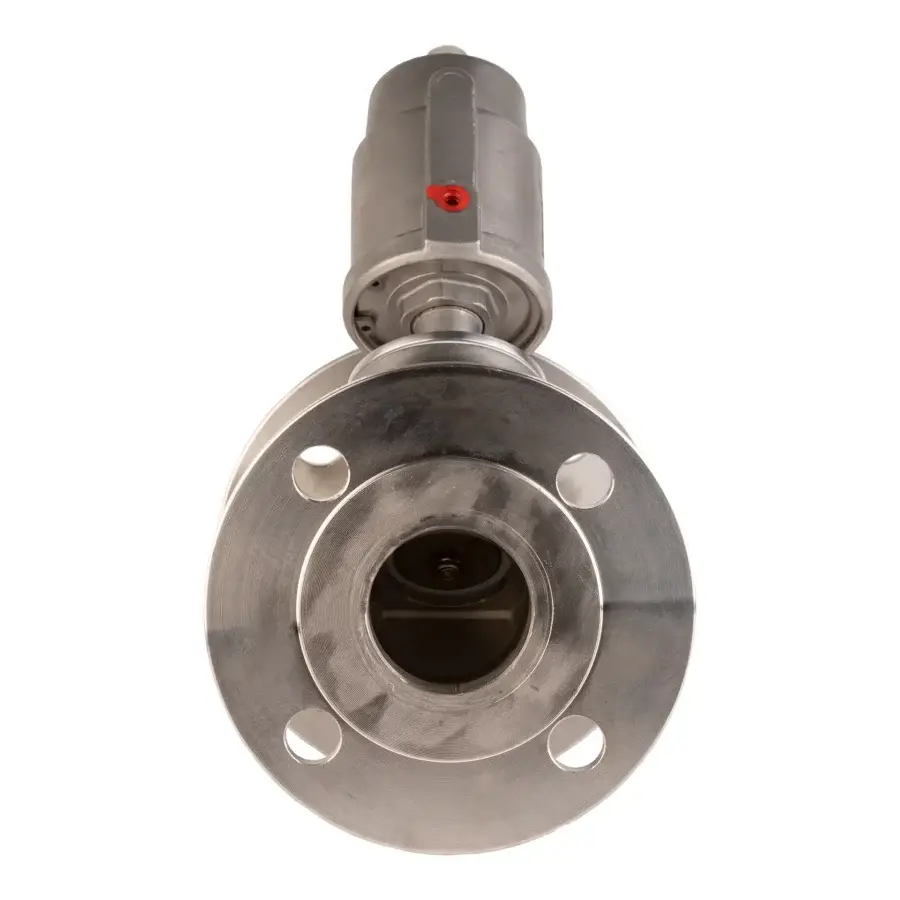

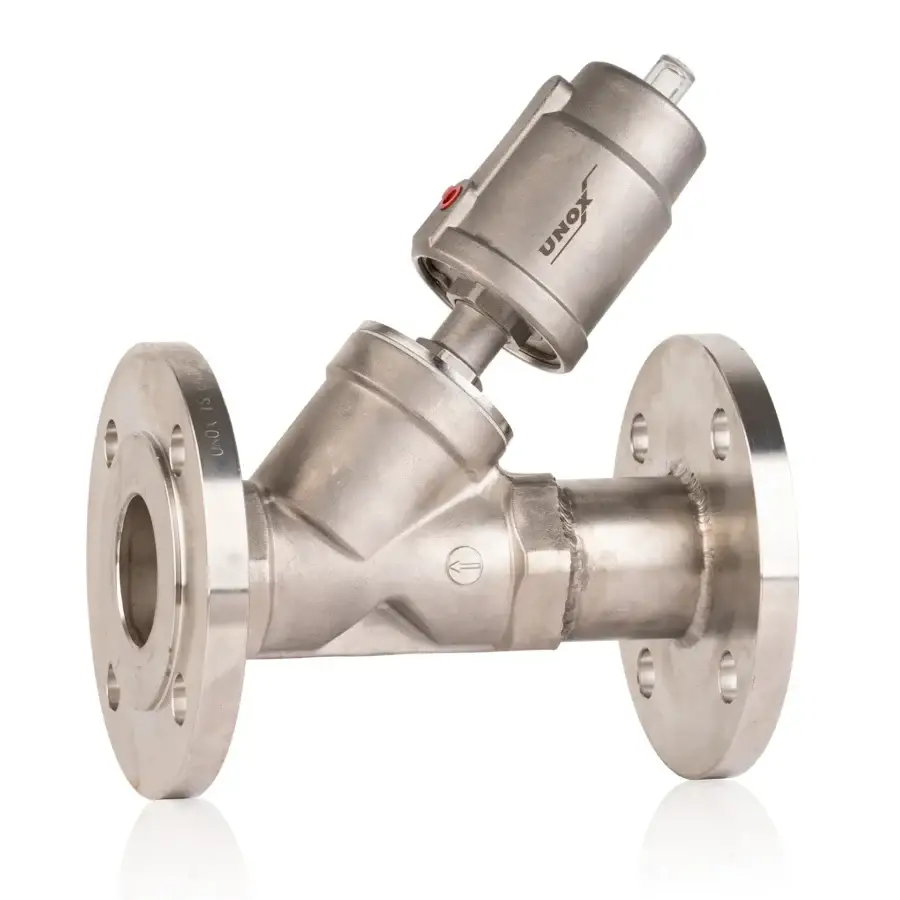

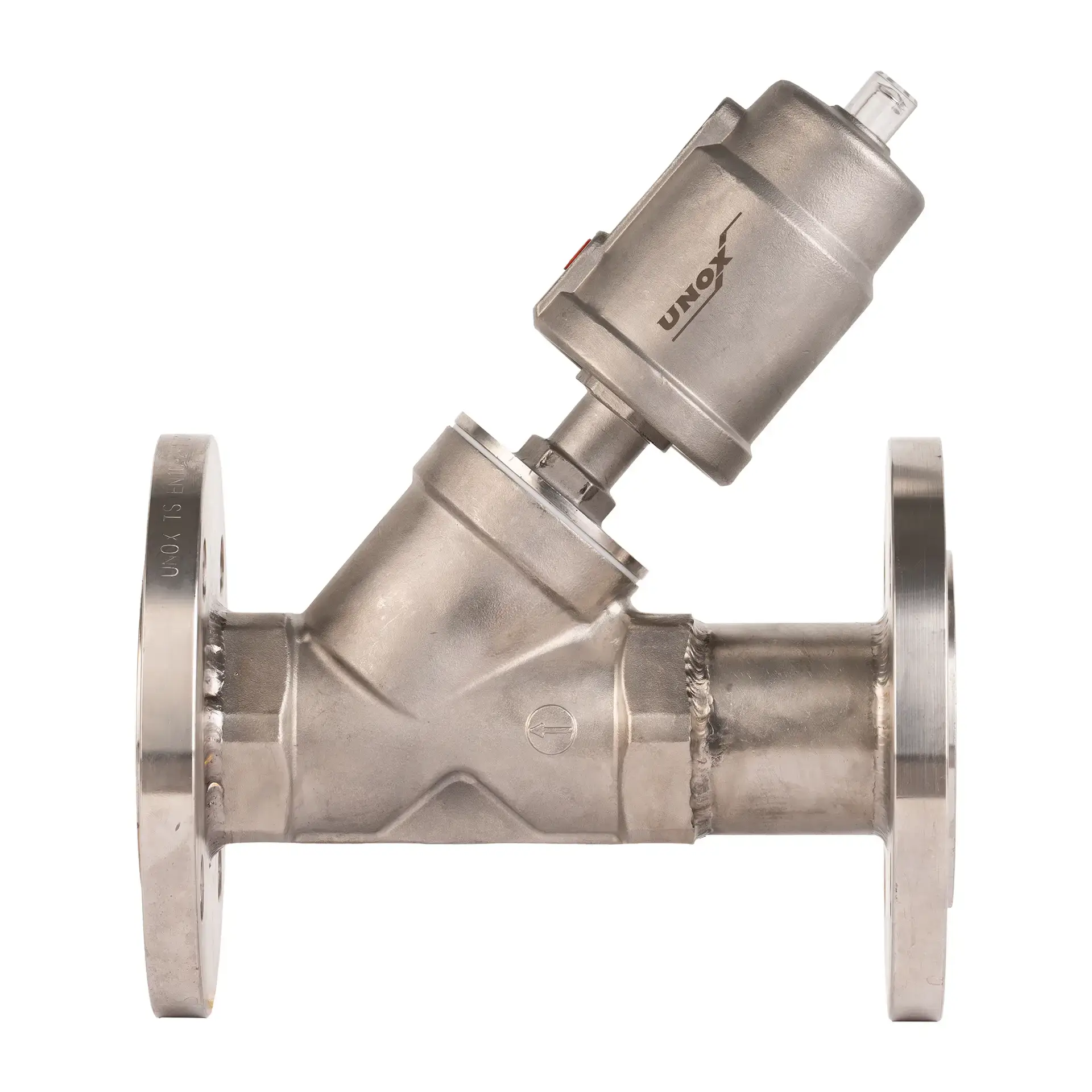

UNOX Angle Seat Valve Flanged

Angle Seat Valve Flanged

The UNOX Angle Seat Valve Flanged Y-Type is a premium stainless-steel control valve engineered for demanding industrial fluid applications. Its rugged stainless steel body ensures exceptional corrosion resistance and mechanical strength, making it suitable for steam, hot water, air, and various process liquids. The Y-patterned seat design provides excellent flow characteristics and minimal pressure loss, allowing for energy-efficient and precise fluid control.

This flanged angle seat valve is built to handle continuous operation at a maximum operating temperature of 180 °C (356 °F) and a working pressure up to PN16 (232 psi). The air supply pressure range of 3–8 bar (44–116 psi) enables reliable actuation in automated process lines. The robust flanged connections simplify installation, maintenance, and ensure leak-tight integration with pipeline systems.

Key industries benefiting from this valve include chemical and petrochemical plants, food and beverage production, pharmaceutical systems, water treatment facilities, and general process automation. Its Y-type body design minimizes turbulence and cavitation, extending service life and maintaining consistent performance under harsh operating conditions.

Technical Specifications

• Body: Stainless steel for high durability and corrosion resistance
• Maximum Operating Temperature: 180 °C (356 °F)
• Working Pressure: PN16 (232 psi)
• Air Supply Pressure: 3–8 bar (44–116 psi)
• Connection Type: Flanged (easy installation and secure sealing)

The UNOX Angle Seat Valve Flanged Y-Type is a reliable choice for engineers seeking precise flow control, high temperature endurance, and long-lasting performance in industrial fluid systems.
