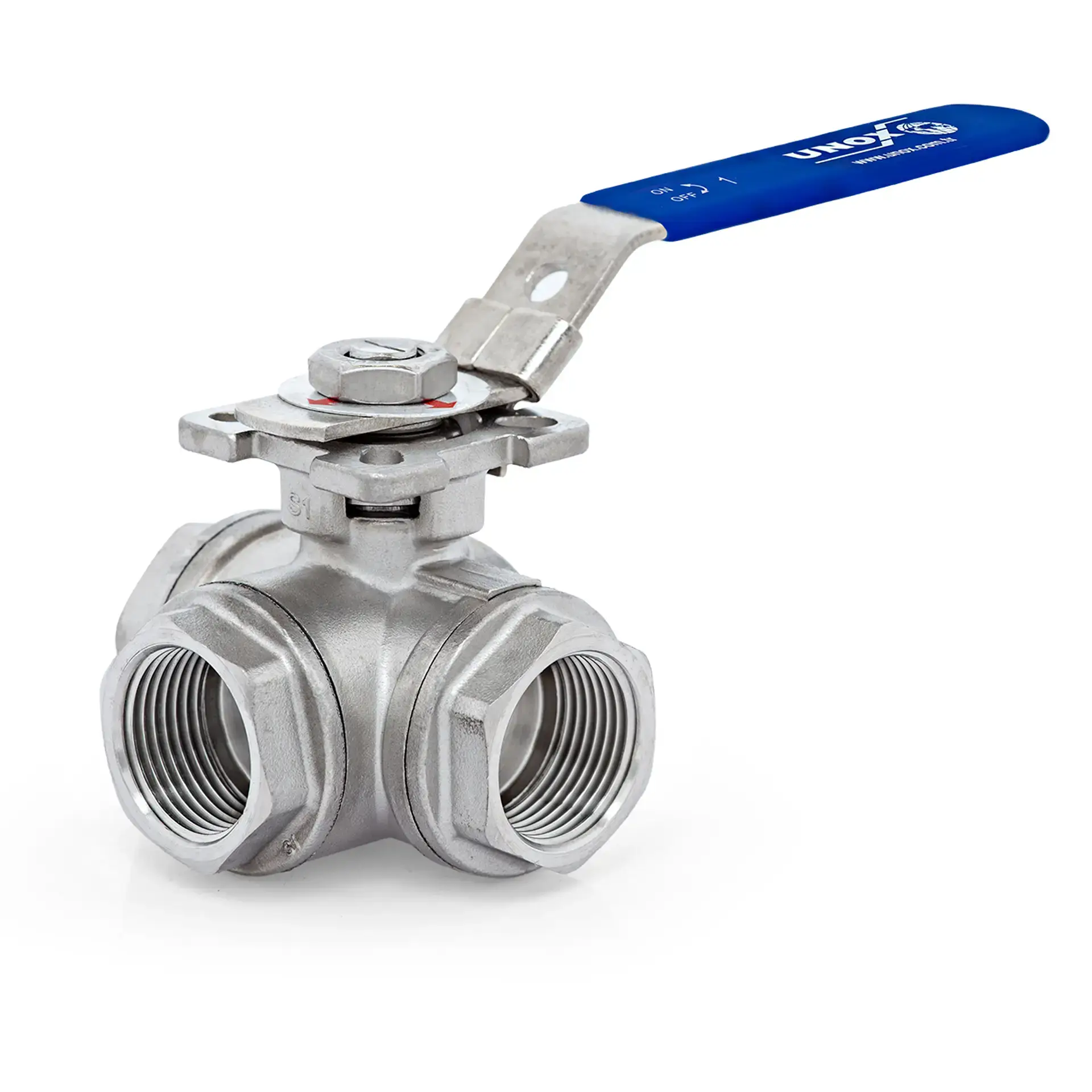

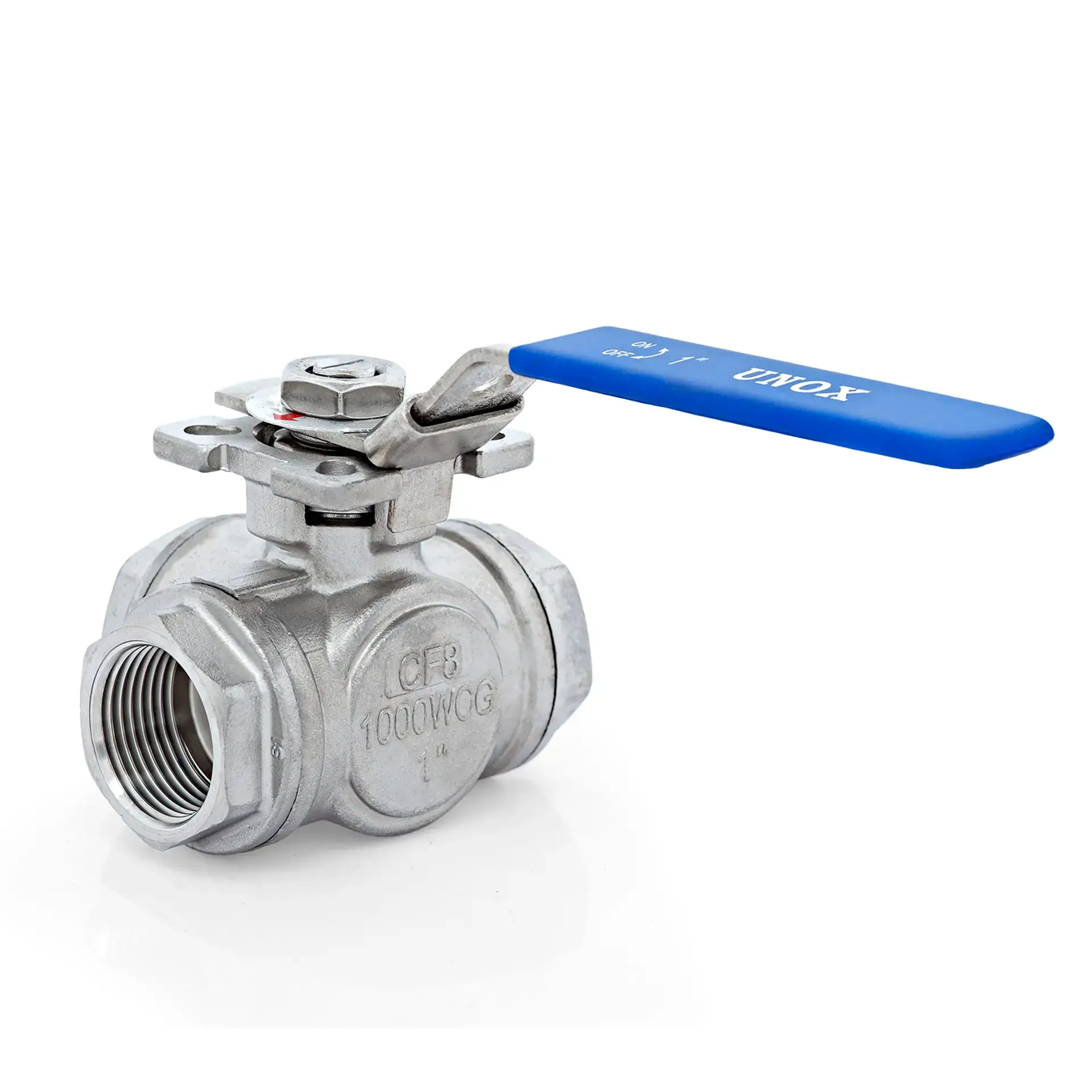

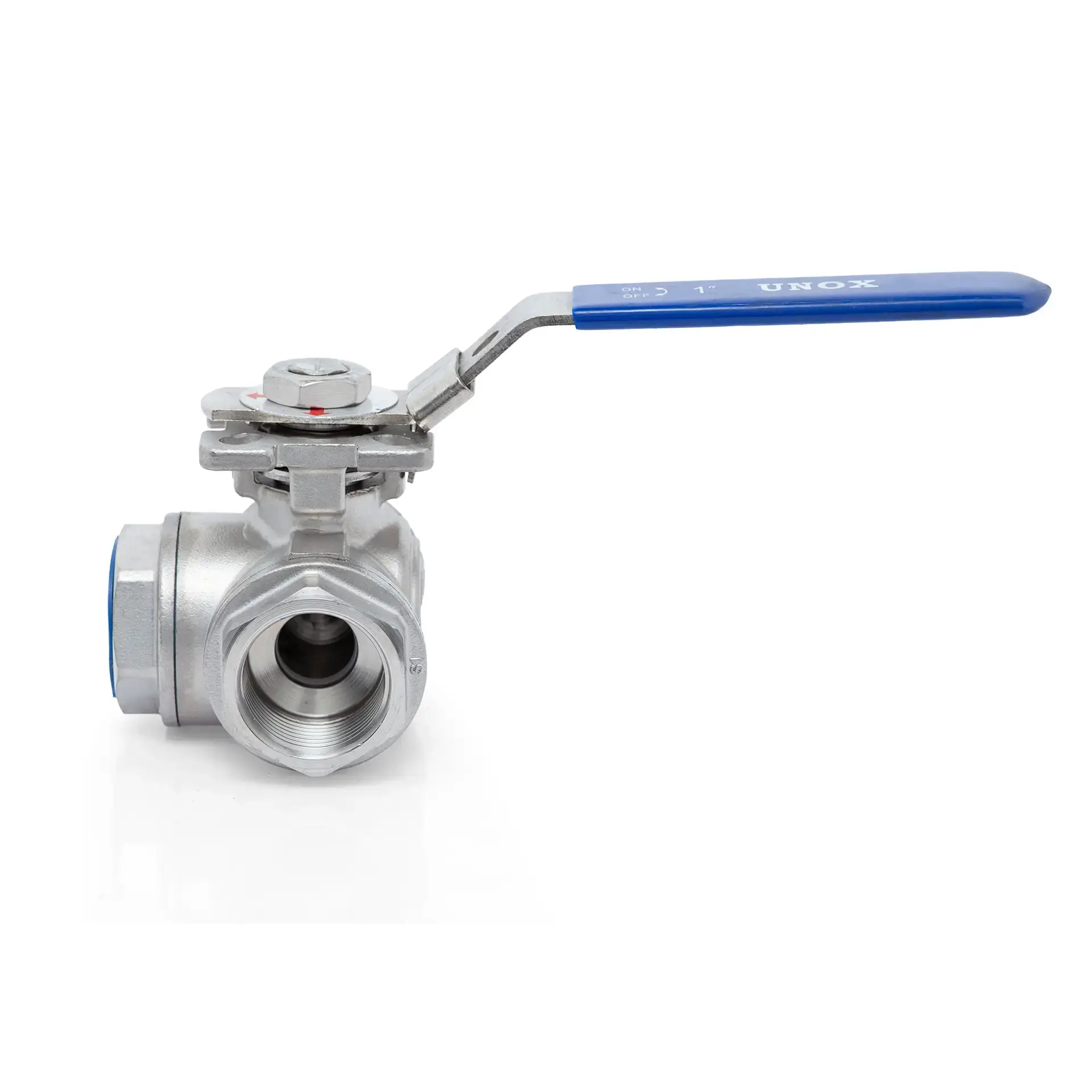

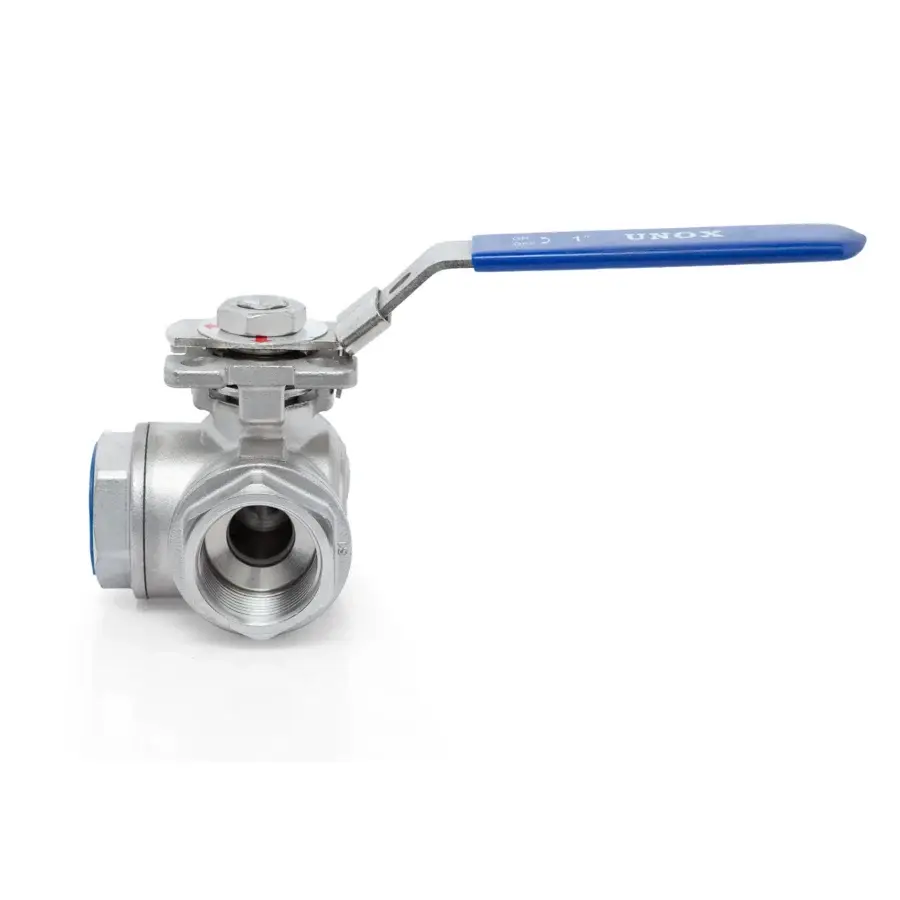

UNOX 3 Way Stainless Steel T-Port Ball Valve With Mounting Pad Threaded

3 Way Stainless Steel T-Port Ball Valve with Mounting Pad Threaded

The UNOX 3 Way Stainless Steel T-Port Ball Valve with Mounting Pad – Threaded is a versatile, automation-ready valve engineered for mixing, diverting, or distributing flow in complex piping systems. Fully constructed from AISI 304 or AISI 316 stainless steel, it provides exceptional corrosion resistance and mechanical durability, making it ideal for chemical processing, food & beverage, pharmaceutical, water treatment, marine, and HVAC applications.

The T-Port configuration allows the valve to mix two inlets into one outlet, split one inlet into two outlets, or redirect flow in multiple directions—all while maintaining full-bore flow and minimal pressure drop. Its precision-machined stainless steel ball and reinforced PTFE seats guarantee bubble-tight sealing and smooth, low-torque operation even in high-cycle or high-pressure environments.

An ISO 5211 mounting pad enables direct mounting of pneumatic or electric actuators without additional brackets or couplings, simplifying automation. BSP or NPT threaded ends provide quick, leak-free installation and easy maintenance. Designed for demanding service, the valve withstands working pressures up to PN63 (~900 psi) and operating temperatures up to 200 °C (~392 °F).

Technical Features

• Body & Ball: 100 % AISI 304 / AISI 316 stainless steel for superior corrosion resistance
• Stem/Shaft: AISI 316 stainless steel, blow-out proof design
• Seats & Seals: Reinforced PTFE for excellent chemical compatibility and tight shut-off
• Flow Path: 3-way T-Port (mixing/diverting) for multiple flow configurations
• Connection Type: BSP or NPT threaded ends
• Mounting Pad: ISO 5211, actuator-ready for pneumatic or electric automation
• Working Pressure: Up to PN63 (~900 psi)
• Maximum Operating Temperature: Up to 200 °C (~392 °F)
• Design: Full-bore construction for high Cv and minimal pressure loss

By combining full-bore T-Port functionality, rugged stainless construction, and direct actuator mounting, the UNOX 3 Way Stainless Steel T-Port Ball Valve with Mounting Pad – Threaded offers flexible and long-lasting flow control for modern industrial and sanitary piping systems.
