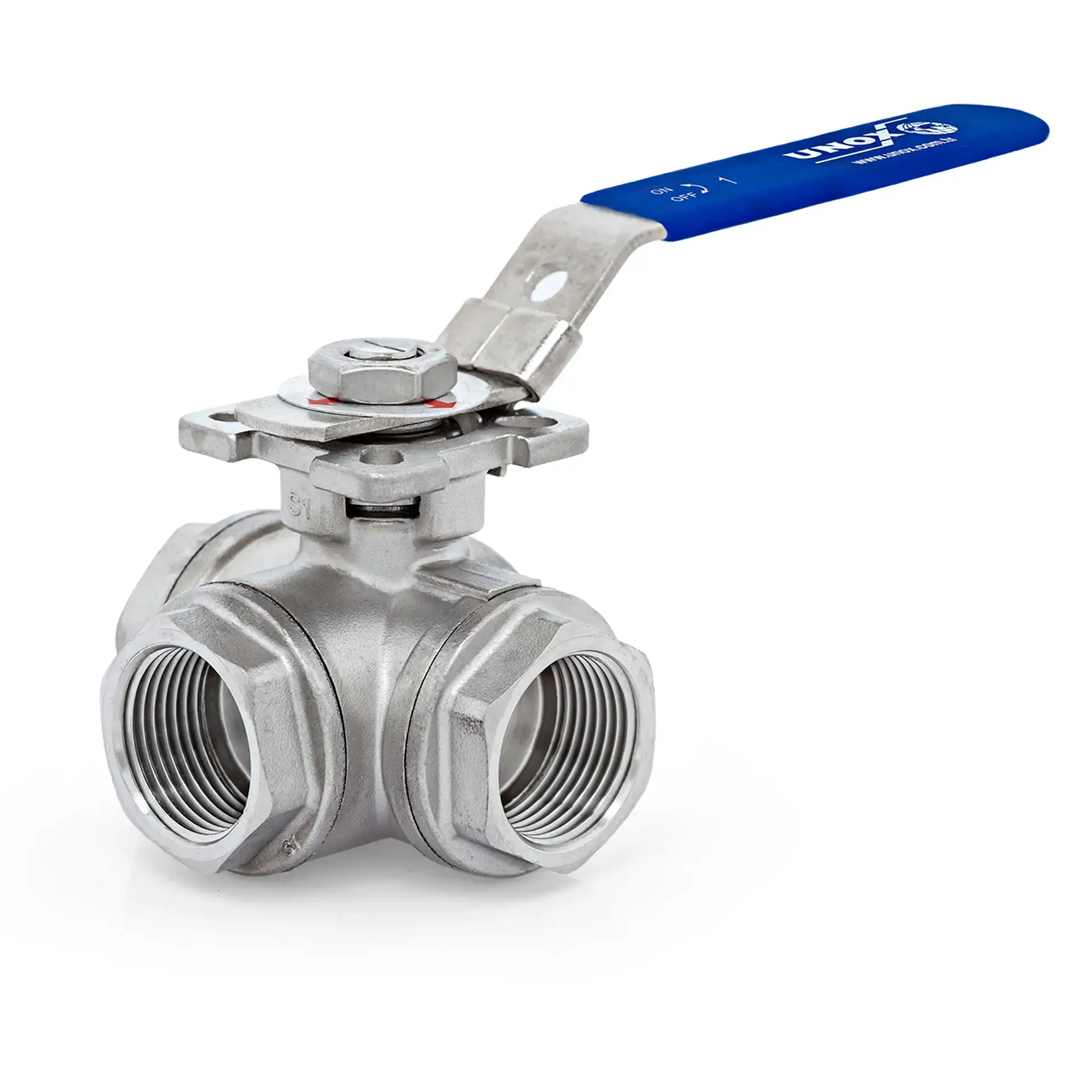

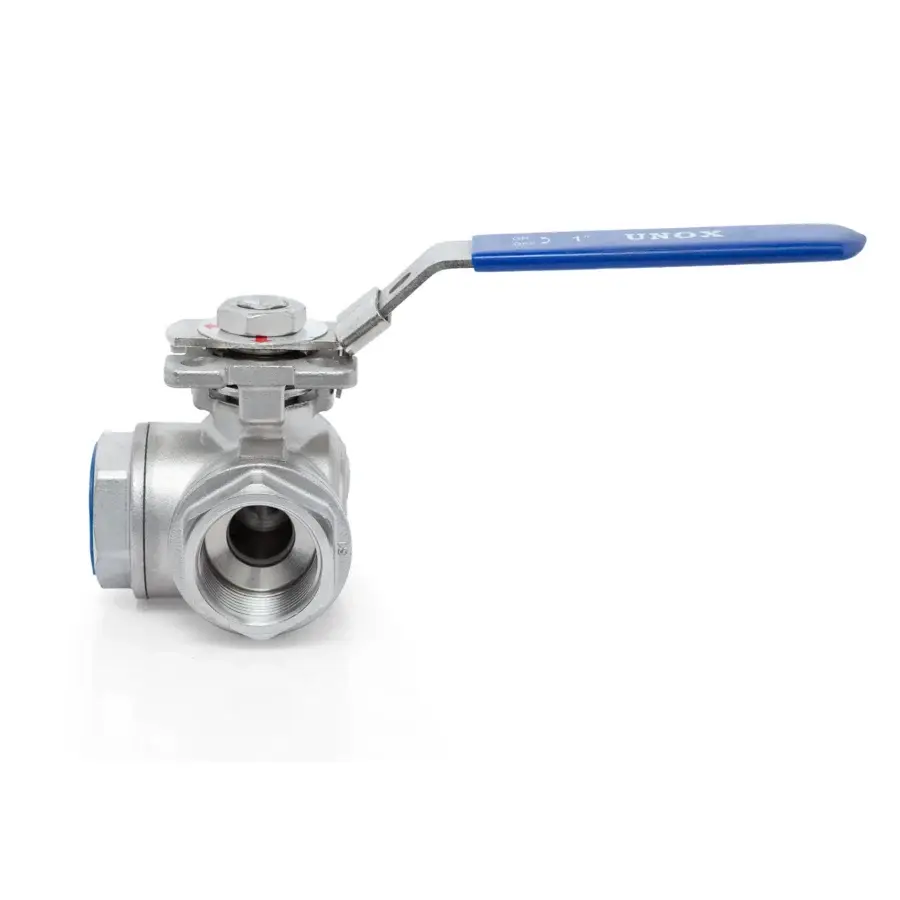

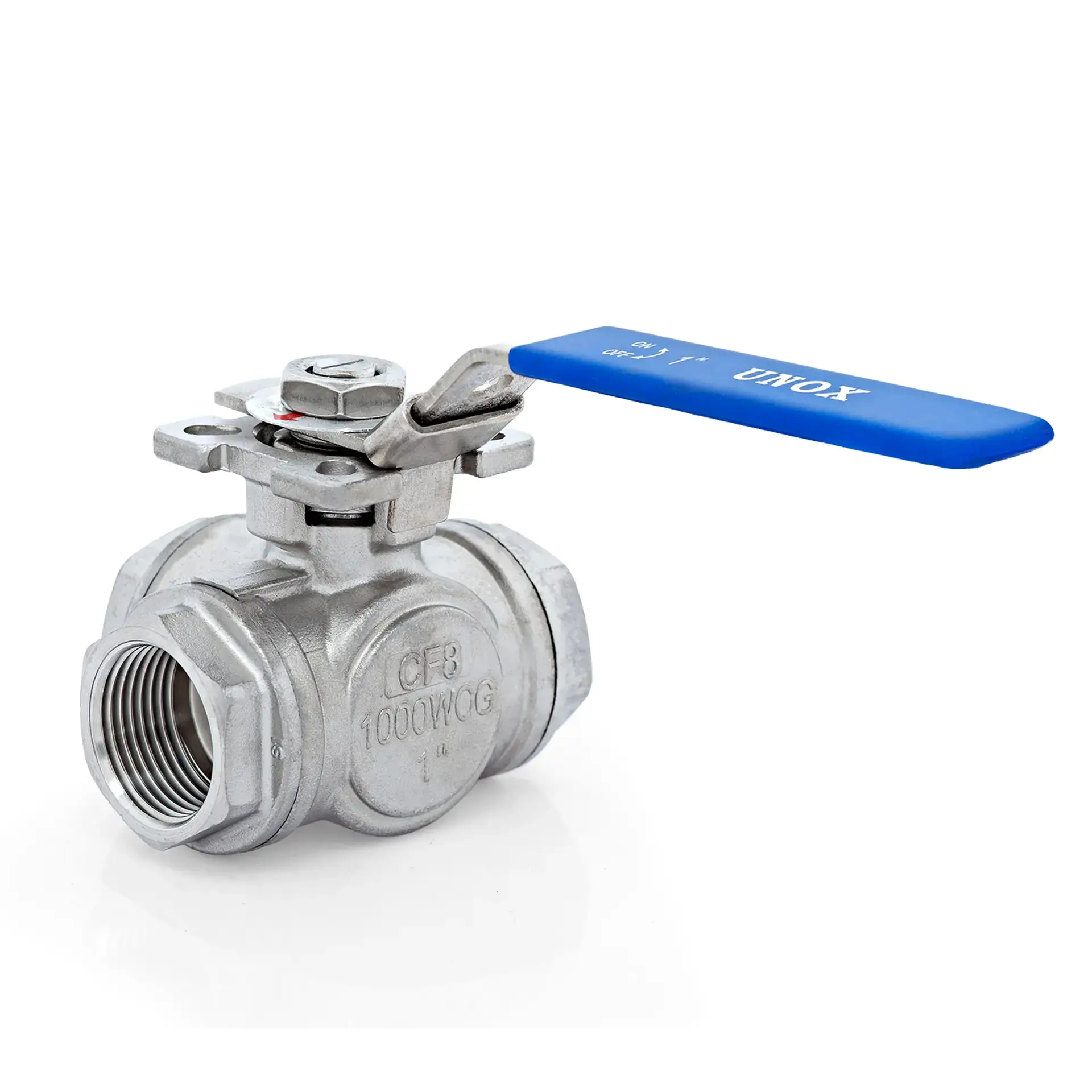

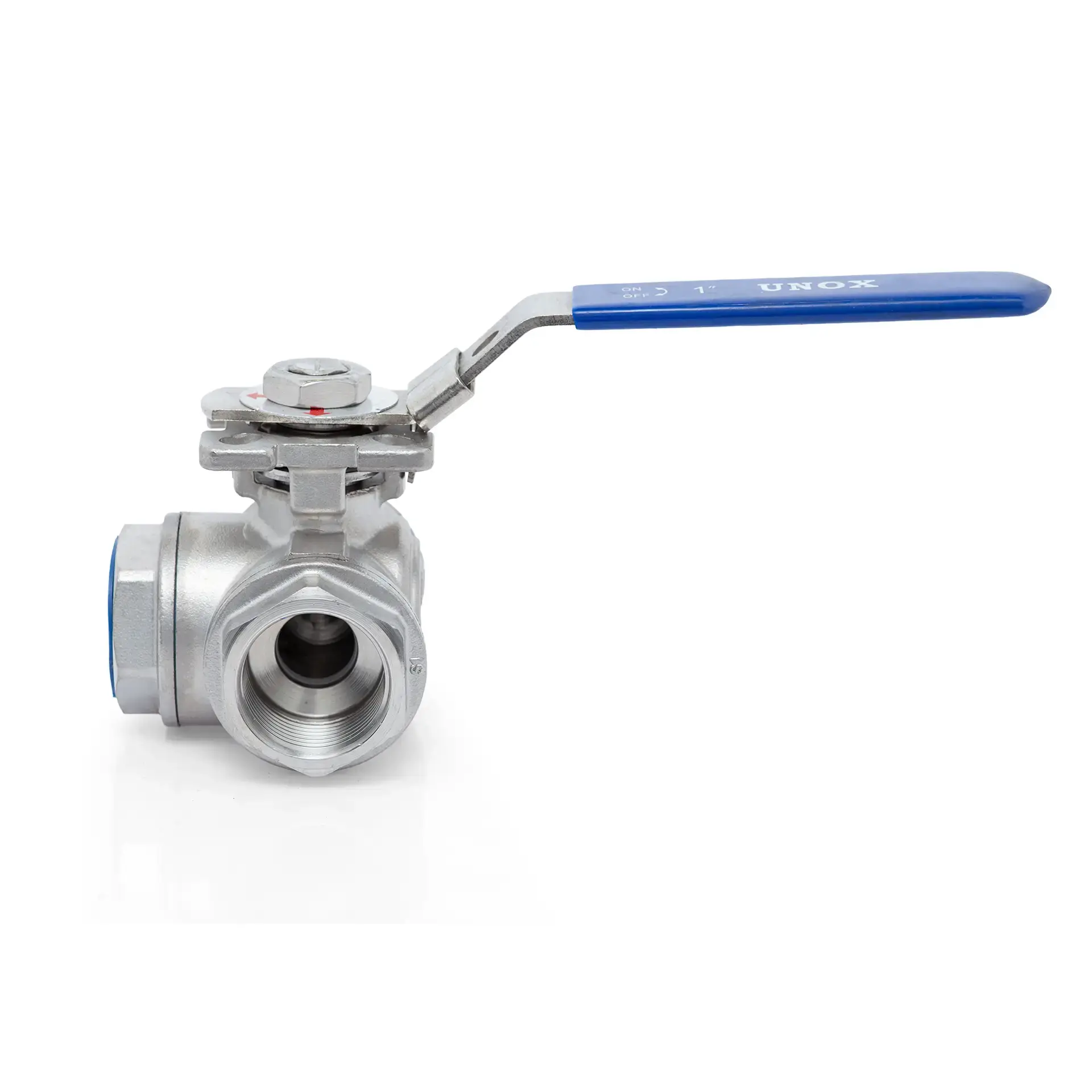

UNOX 3 Way Stainless Steel L-Port Ball Valve With Mounting Pad Threaded

3 Way Stainless Steel L-Port Ball Valve with Mounting Pad Threaded

The UNOX 3 Way Stainless Steel L-Port Ball Valve with Mounting Pad – Threaded is a high-performance flow-diverting valve designed to route fluids between two different pipelines with precise control. Built entirely from AISI 304 or AISI 316 stainless steel, it provides outstanding corrosion resistance and mechanical strength, making it ideal for chemical processing, food & beverage, water treatment, pharmaceutical, marine, and HVAC systems.

The L-Port configuration allows the valve to divert flow from one inlet to either of two outlets (or vice versa) without mixing. Its full-bore design ensures maximum flow capacity with minimal pressure drop, while the precision-machined stainless steel ball and reinforced PTFE seats provide smooth operation and bubble-tight sealing, even under high-pressure, high-cycle conditions.

An ISO 5211 mounting pad enables direct installation of pneumatic or electric actuators without additional brackets or couplings, making it fully ready for automated process control. The BSP or NPT threaded ends allow quick, leak-free installation and easy maintenance. Engineered for demanding applications, the valve withstands working pressures up to PN63 (~900 psi) and temperatures up to 200 °C (~392 °F).

Technical Features

• Body & Ball: 100 % AISI 304 / AISI 316 stainless steel
• Stem/Shaft: AISI 316 stainless steel, blow-out proof design
• Seats & Seals: Reinforced PTFE for excellent chemical resistance
• Flow Path: 3-way L-Port (diverter type) for switching flow between two outlets
• Connection Type: BSP or NPT threaded ends
• Mounting Pad: ISO 5211, actuator-ready
• Working Pressure: Up to PN63 (~900 psi)
• Maximum Operating Temperature: Up to 200 °C (~392 °F)
• Design: Full-bore for minimal pressure loss and easy cleaning

Thanks to its rugged stainless steel construction, precise L-port flow diversion, and automation capability, the UNOX 3 Way Stainless Steel L-Port Ball Valve with Mounting Pad – Threaded delivers long-lasting, leak-free, and efficient flow control in modern industrial piping systems.
