UNOX 3 Way Pneumatic Proportional Control Valve – 33611

UNOX 3 Way Pneumatic Proportional Control Valve – 33611

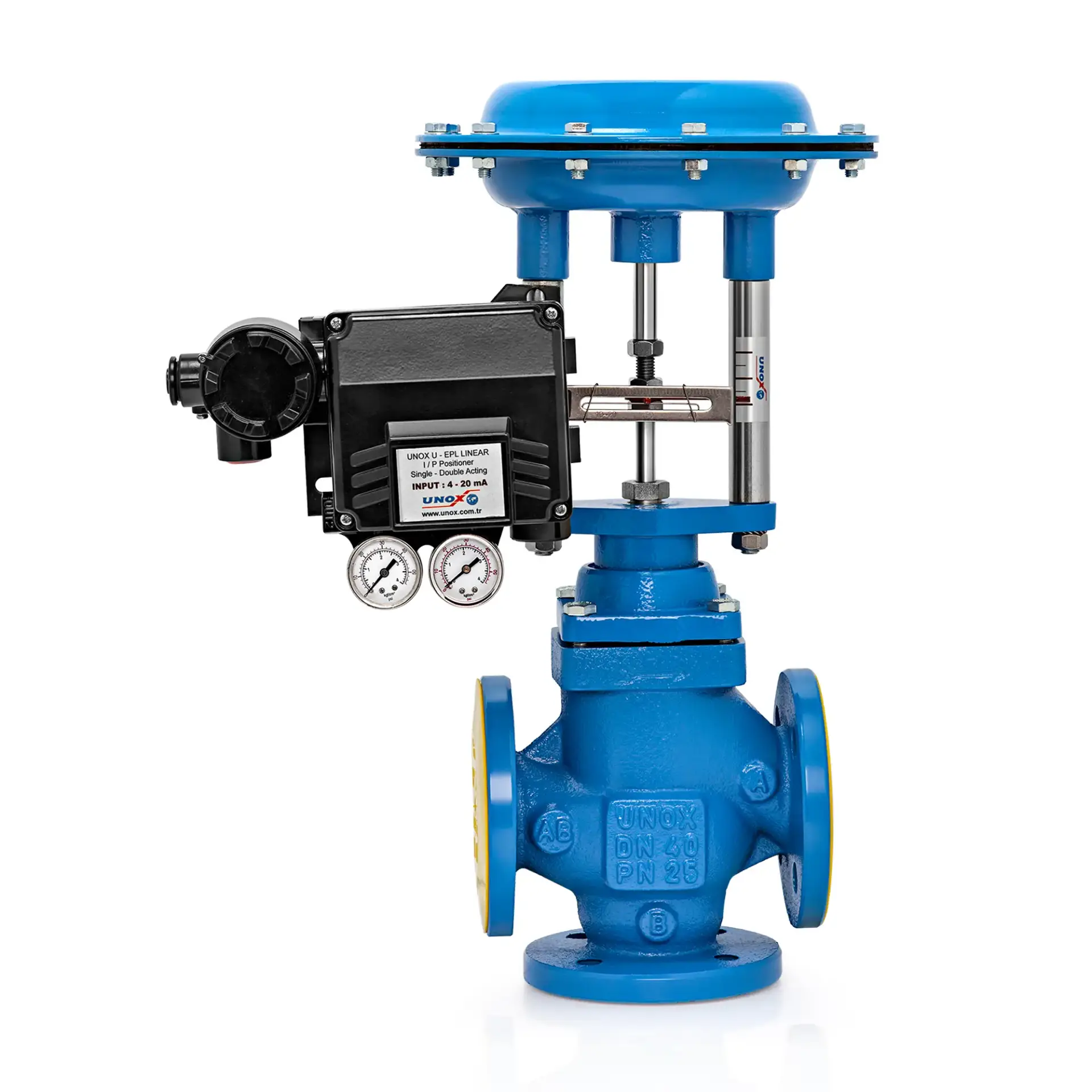

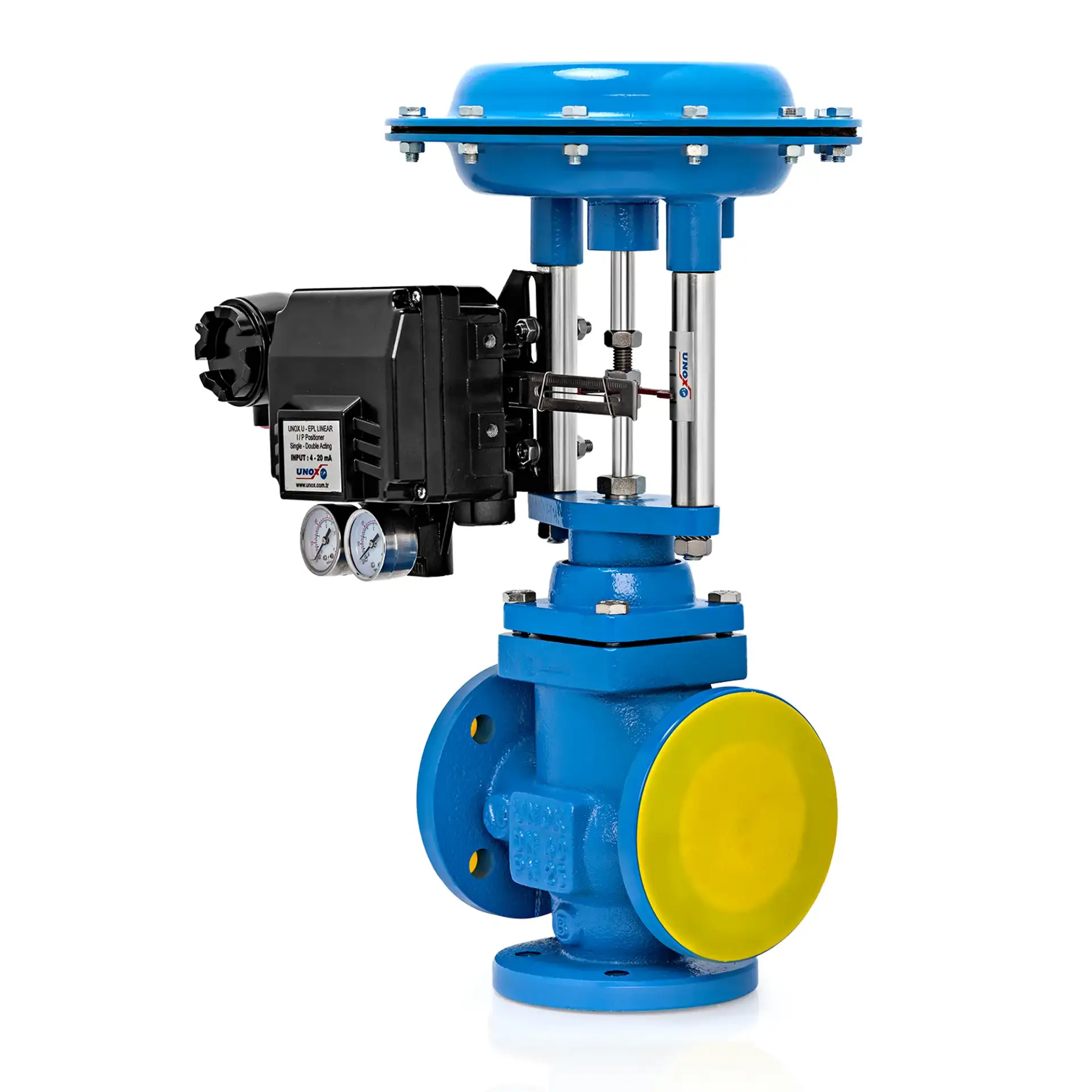

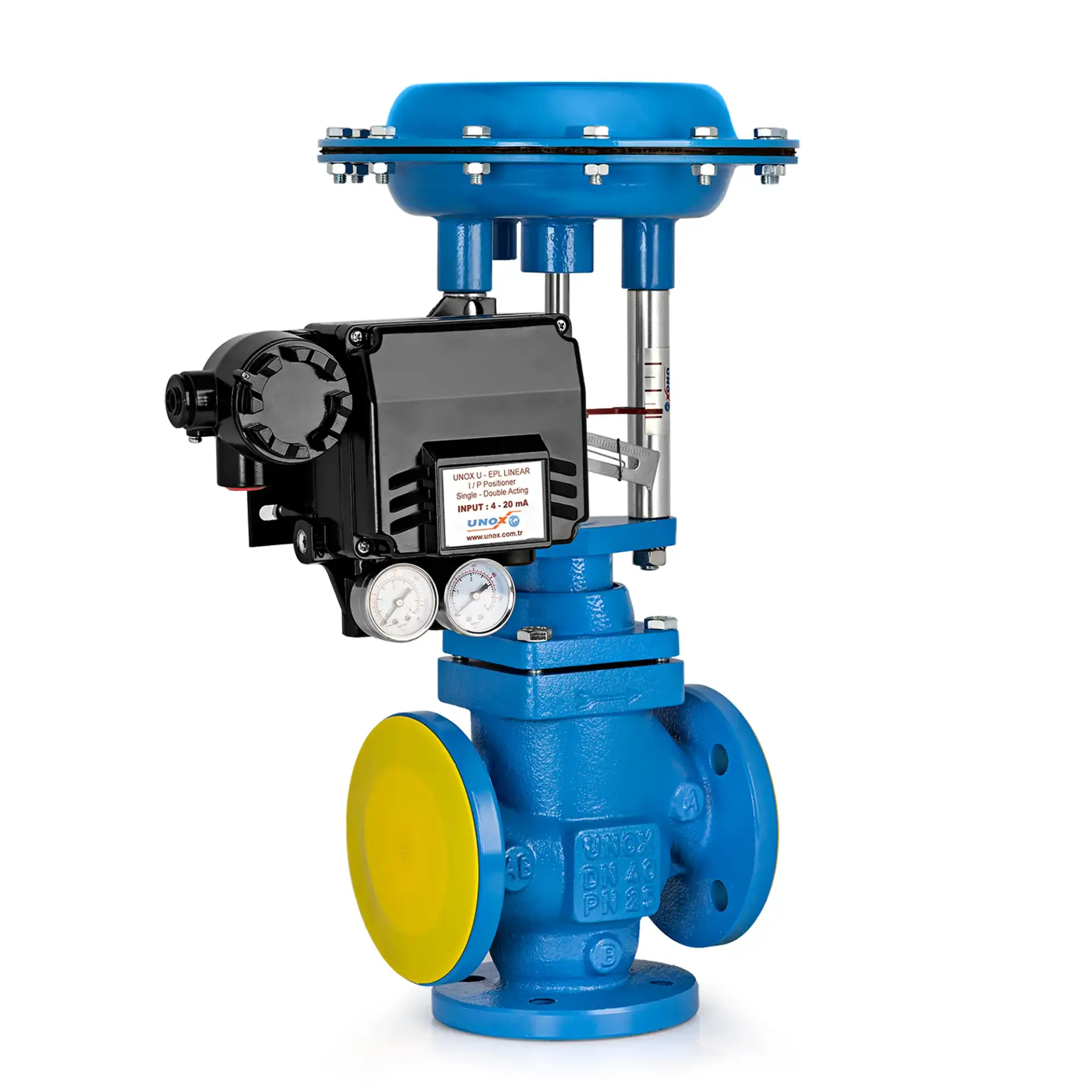

The UNOX 3 way pneumatic proportional control valve is engineered for precise distribution and mixing of steam, water, and process fluids. With a robust GGG40.3 ductile iron body and PN25 pressure rating, it ensures reliable operation under demanding industrial conditions.

The actuator with multi-spring diaphragm design delivers accurate proportional control, while the valve can be configured for diverting or mixing functions. Equipped with PTFE soft sealing (Class VI) and V-pack stem sealing, it guarantees tight shut-off and long service life.

Key Features:

• 3 way pneumatic proportional control valve (diverting/mixing)
• Body: GGG40.3 ductile iron
• Pressure class: PN25
• Sealing class: Class VI (PTFE soft sealing)
• Stem sealing: Class VI – V-pack
• Control type: Proportional
• Max. operating temperature: 220°C (428°F)
• Flange connection: DIN 1092-2 (PN16)
• Sizes: DN15 – DN100
• Flow capacity (Kvs): 4 – 160 m³/h
• Actuator unit: 240–1000 cm³ (piston type for DN100)
• Signal pressure ranges: 0.2–1.0 / 0.4–2.0 / 0.6–3.0 / 1.4–2.3 bar

Applications:

• Steam and condensate systems
• Water and HVAC distribution
• Mixing and diverting process lines
• Energy plants and industrial automation
