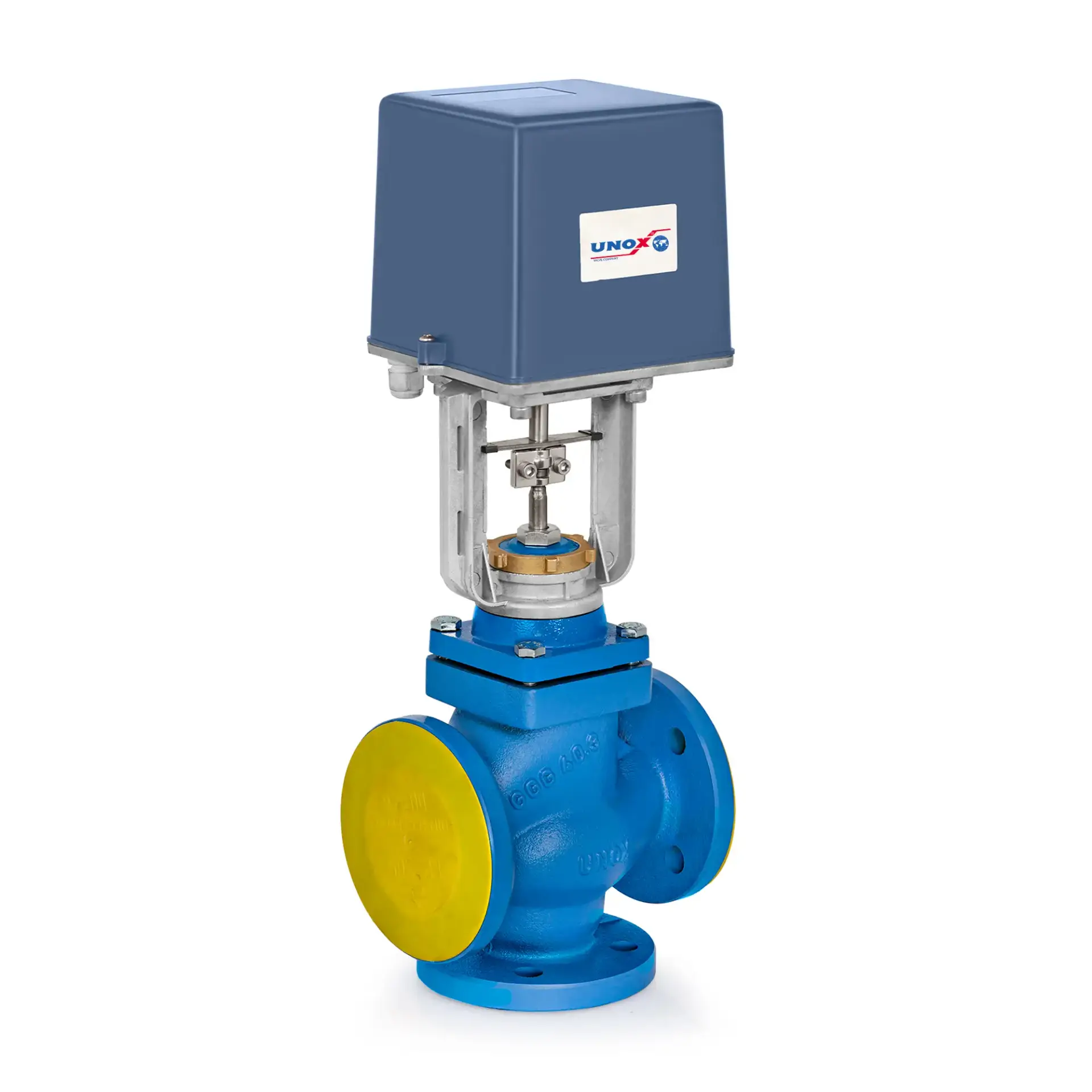

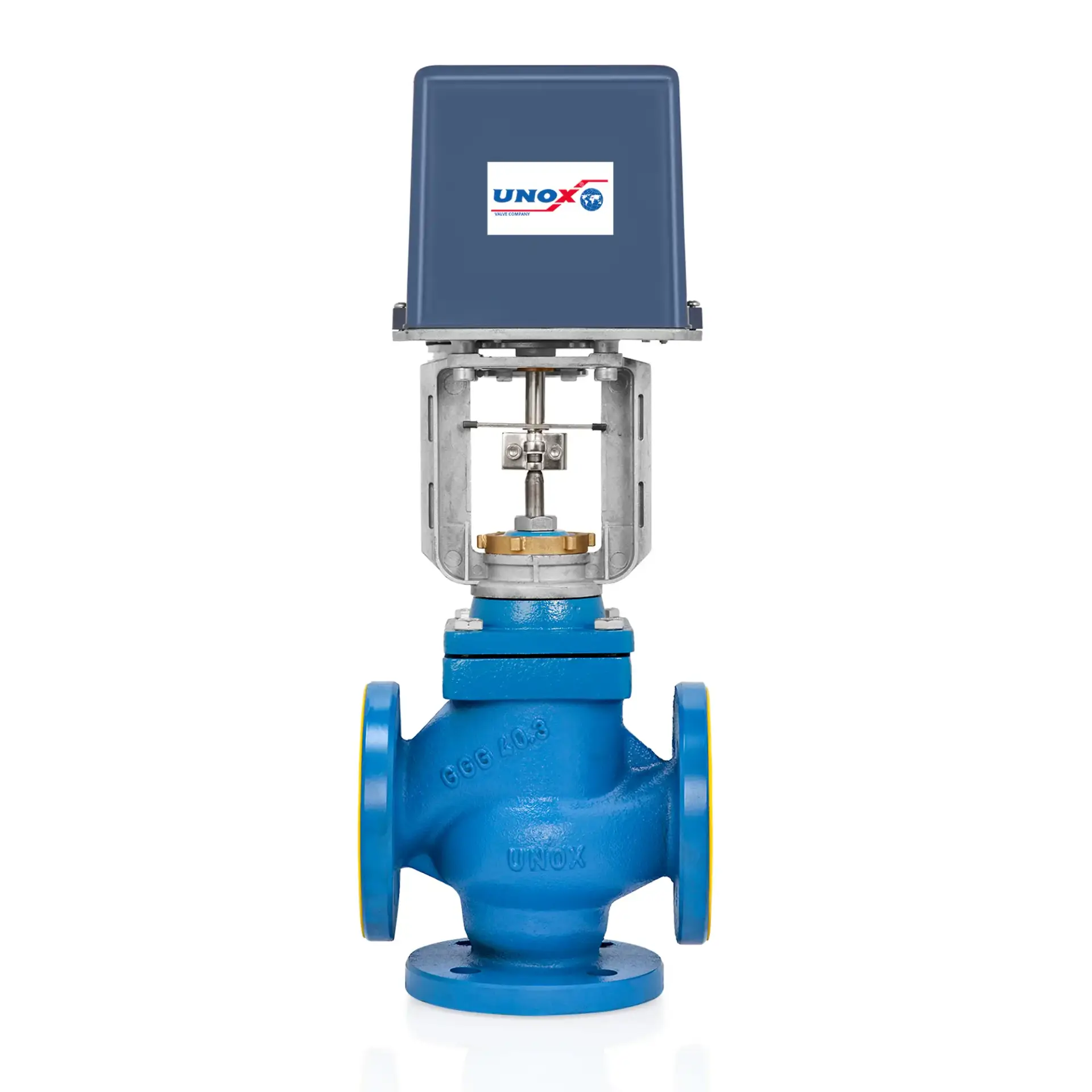

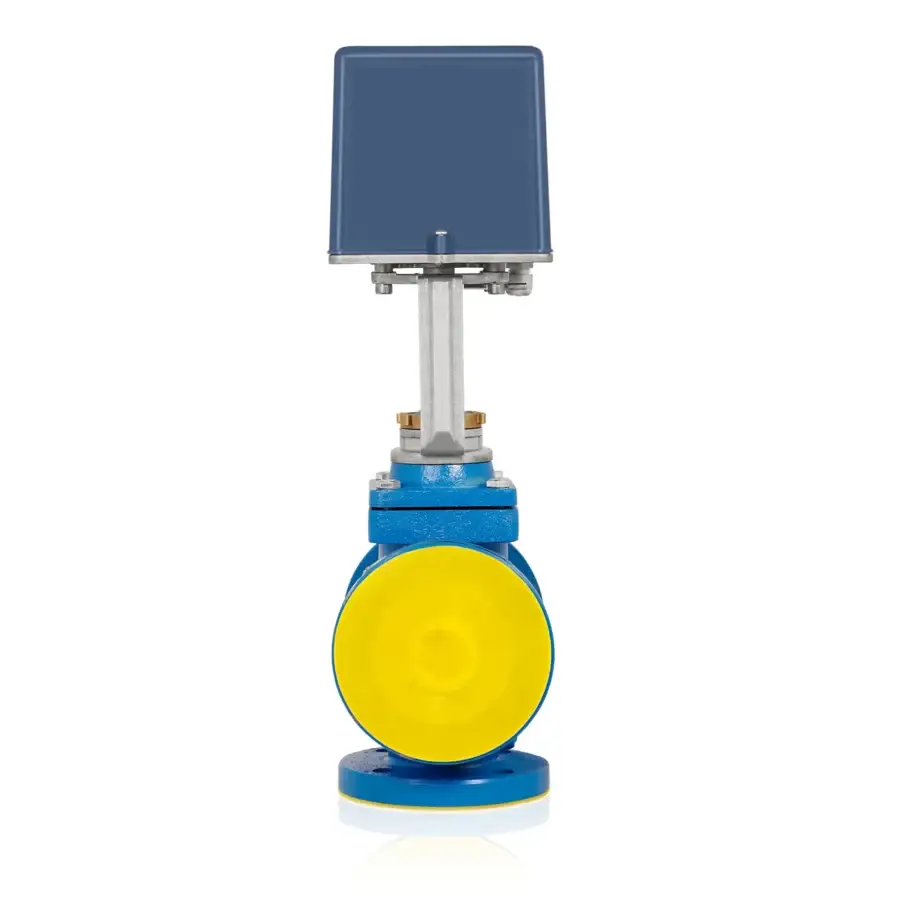

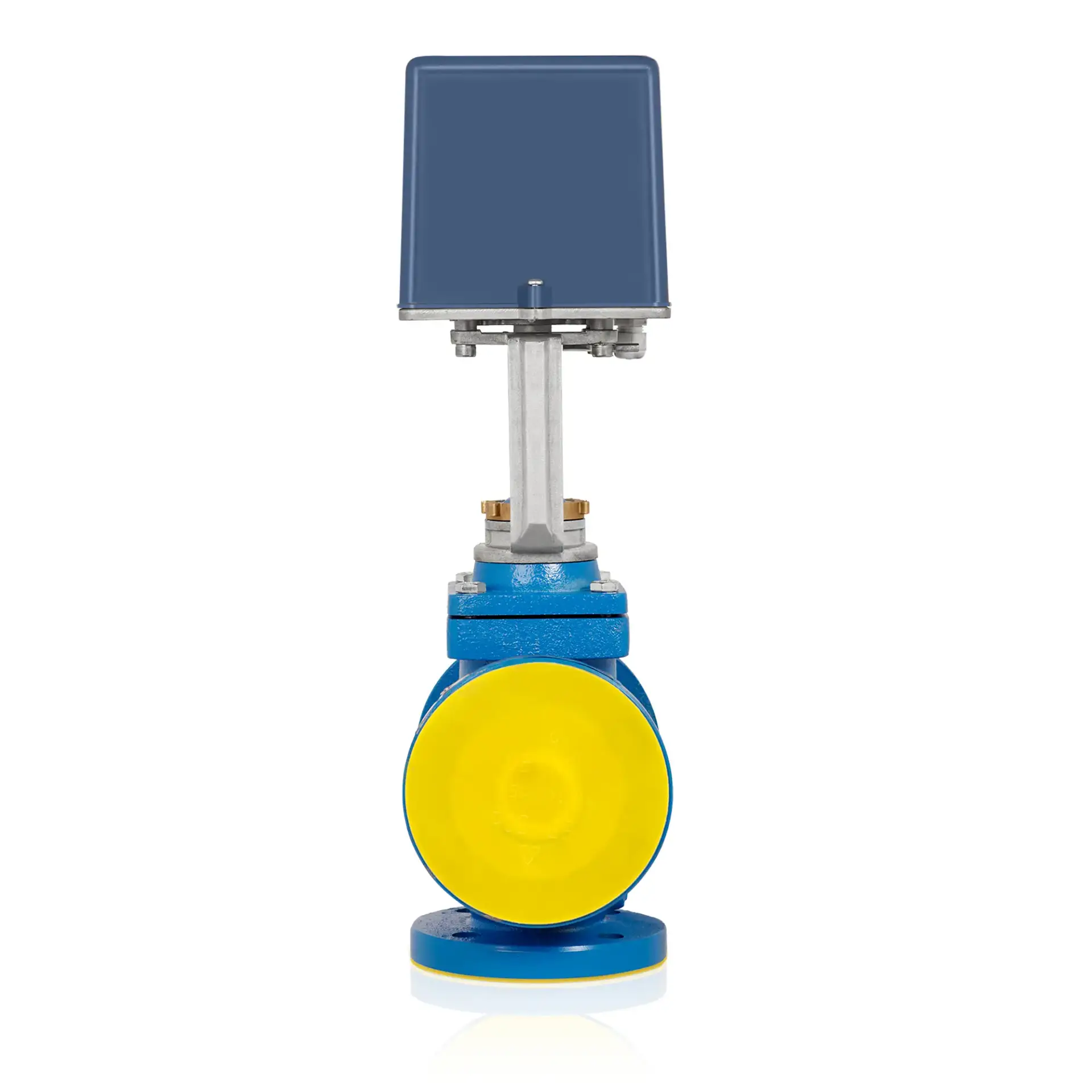

UNOX 3 Way Motorized On-Off Control Valve (Floating Control) – 33608

UNOX 3 Way Motorized On-Off Control Valve (Floating Control) – 33608

The UNOX 3 way motorized on-off control valve is designed for diverting and mixing water, steam, and process fluids in industrial applications. With a GGG40.3 ductile iron body and PN25 pressure rating, it ensures durable and reliable performance under demanding conditions.

Equipped with a floating control electric actuator, the valve maintains its position in case of power failure. PTFE soft sealing (Class VI) and V-pack stem sealing provide tight shut-off and long service life. Available in 220V AC and 24V DC power supply options with IP54…67 protection class.

Key Features:

• 3 way motorized on-off control valve with floating control (diverting/mixing)
• Body: GGG40.3 ductile iron
• Pressure class: PN25
• Sealing class: Class VI (PTFE soft sealing)
• Stem sealing: Class VI – V-pack
• Max. operating temperature: 220°C (428°F)
• Flange connection: DIN 1092-2 (PN16)
• Power supply: 220V AC / 24V DC
• Protection class: IP54…67
• Sizes: DN15 – DN150
• Flow capacity (Kvs): 4 – 260 m³/h
• Control signal: On-Off

Applications:

• Steam and water distribution
• HVAC and energy plants
• Mixing and diverting process systems
• Chemical and petrochemical industries
