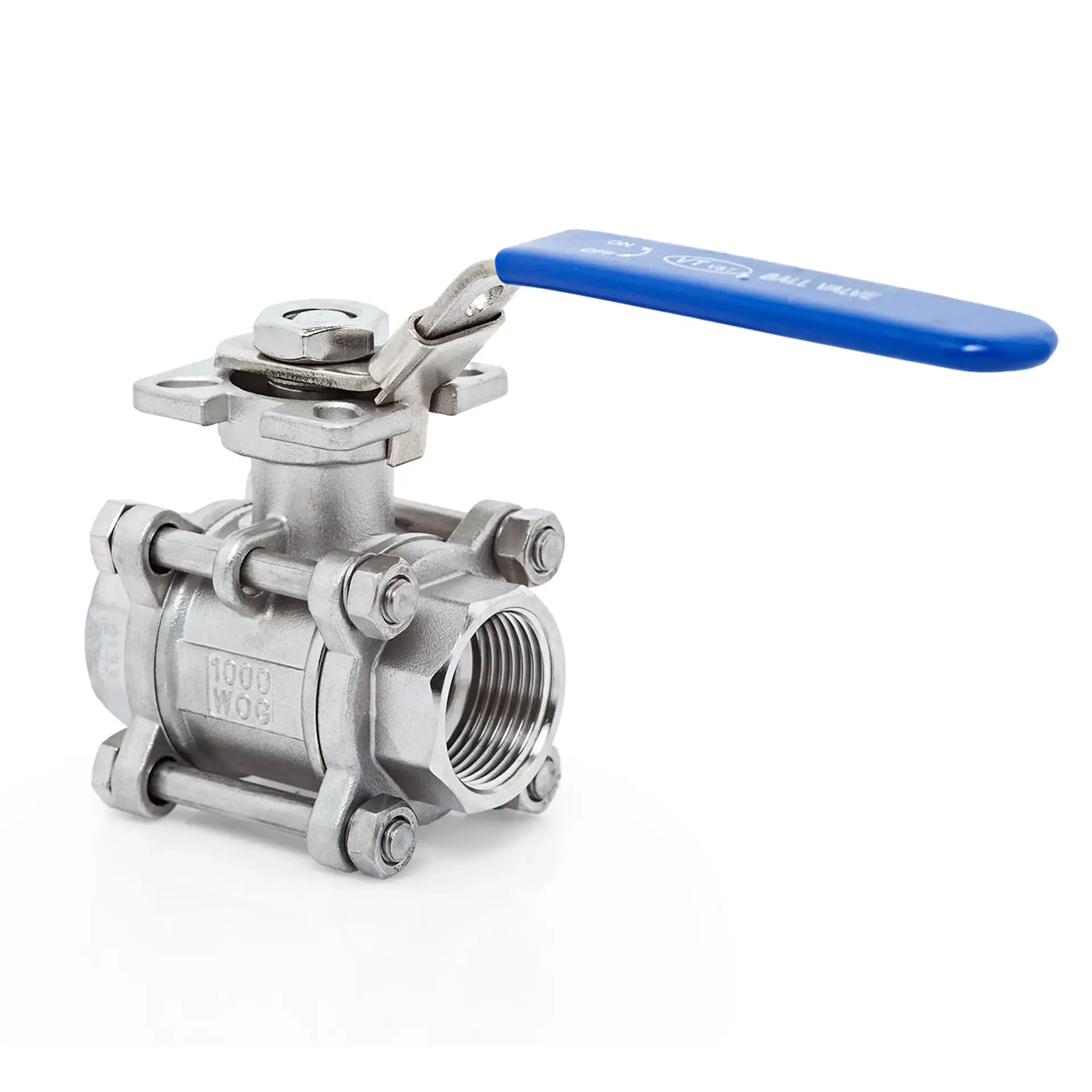

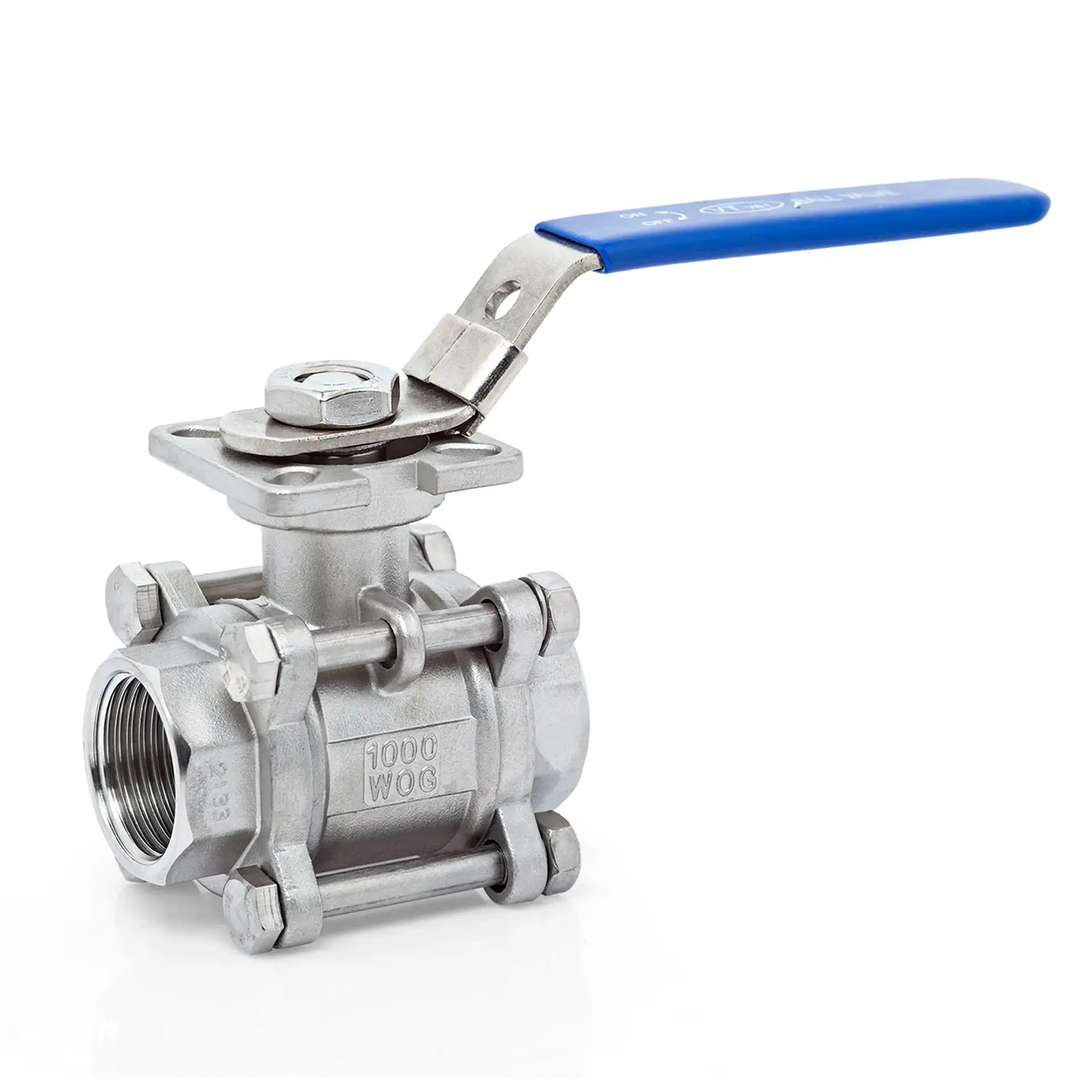

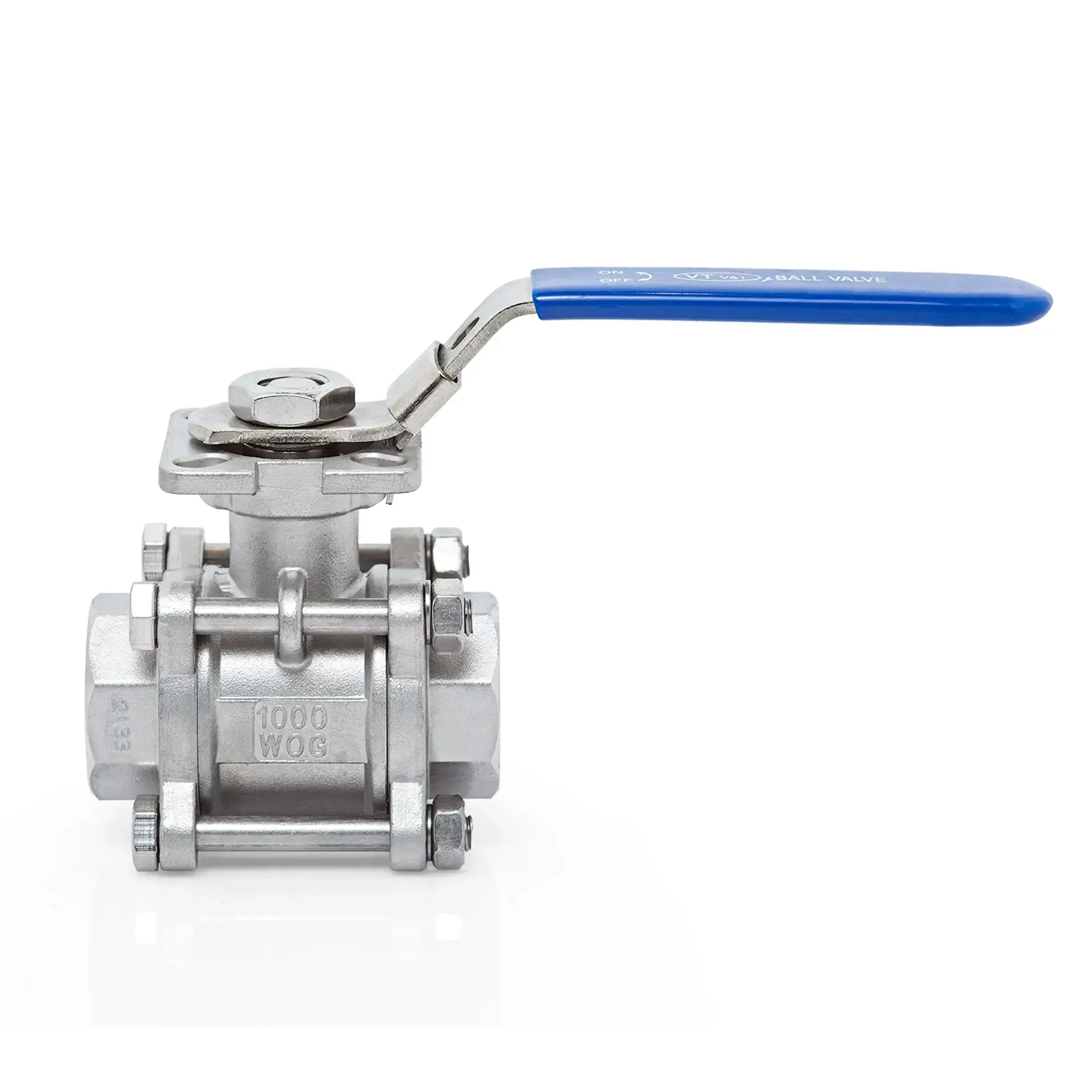

3 Pieces Stainless Steel Ball Valve with Mounting Pad Threaded
The UNOX 3 Pieces Stainless Steel Ball Valve with Mounting Pad – Threaded is a premium-quality, automation-ready shut-off valve designed for reliable service and easy maintenance in demanding industrial and sanitary applications. Constructed entirely from AISI 304 or AISI 316 stainless steel, it provides outstanding corrosion resistance and mechanical strength, making it ideal for chemical processing, food & beverage, pharmaceutical, water treatment, marine, and HVAC systems.
Its three-piece body design allows the center section to be removed without disturbing the pipeline connections, ensuring fast cleaning, inspection, and replacement of internal parts. The full-bore construction guarantees maximum flow capacity with minimal pressure loss, while precision-machined stainless steel ball and reinforced PTFE seats ensure smooth operation and bubble-tight sealing, even in continuous high-cycle service.
The ISO 5211 mounting pad allows direct installation of pneumatic or electric actuators without extra brackets or couplings, supporting fully automated process control. BSP or NPT threaded ends make installation simple and leak-free. With a maximum working pressure up to PN63 (≈900 psi) and operating temperature up to 200 °C (≈392 °F), it is built to handle demanding conditions.
Technical Features
- Body & Ball: 100 % AISI 304 / AISI 316 stainless steel
- Stem/Shaft: AISI 316 stainless steel, blow-out proof
- Seats & Seals: Reinforced PTFE for long-lasting, leak-tight operation
- Connection Type: BSP or NPT threaded ends
- Mounting Pad: ISO 5211 standard, actuator-ready
- Working Pressure: Up to PN63 (~900 psi)
- Maximum Operating Temperature: Up to 200 °C (~392 °F)
- Design: Three-piece body for easy maintenance and full-bore flow
With its robust stainless steel construction, easy-to-service design, and direct actuator mounting, the UNOX 3 Pieces Stainless Steel Ball Valve with Mounting Pad – Threaded is the ideal solution for long-lasting, precise, and fully automated flow control in modern industrial piping systems.
