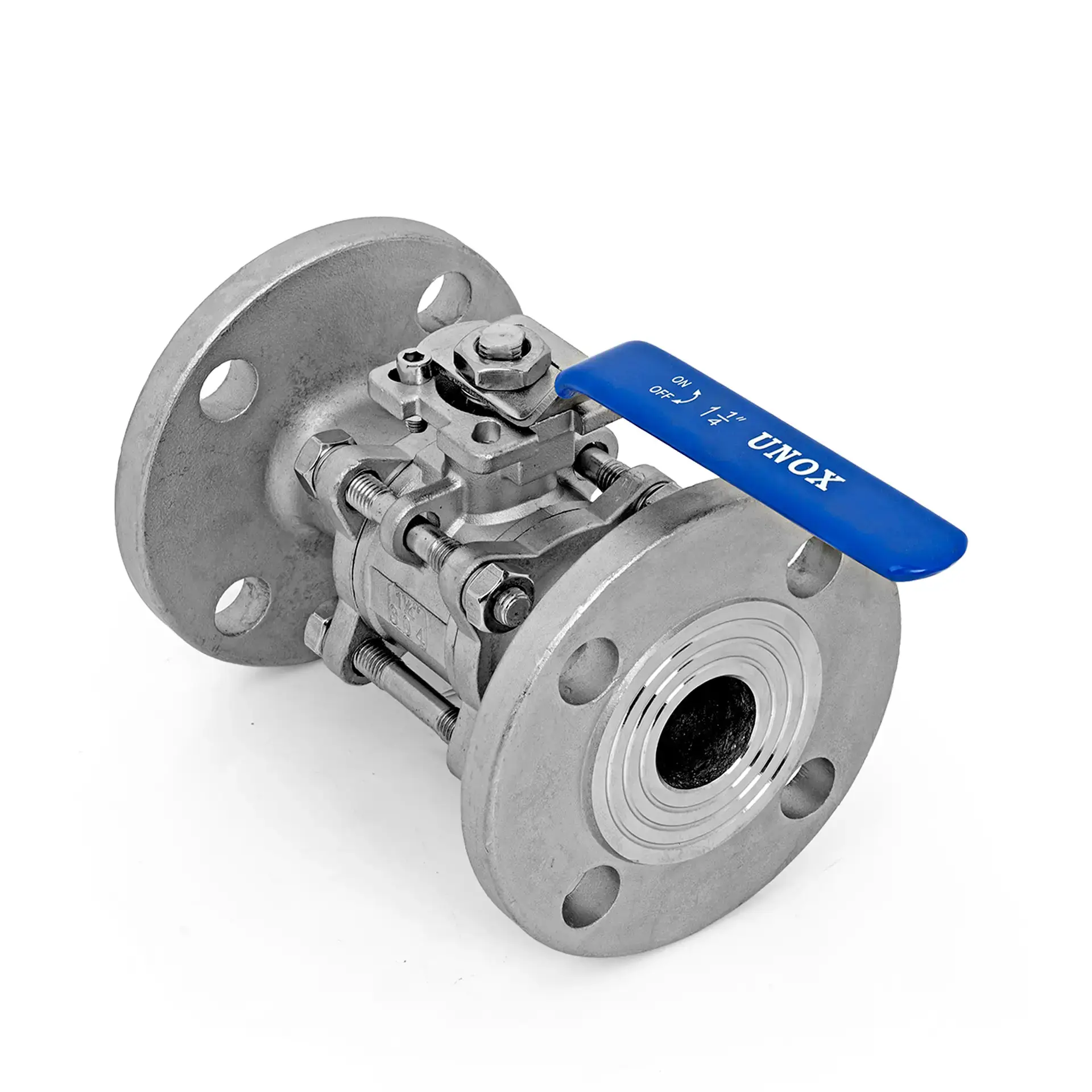

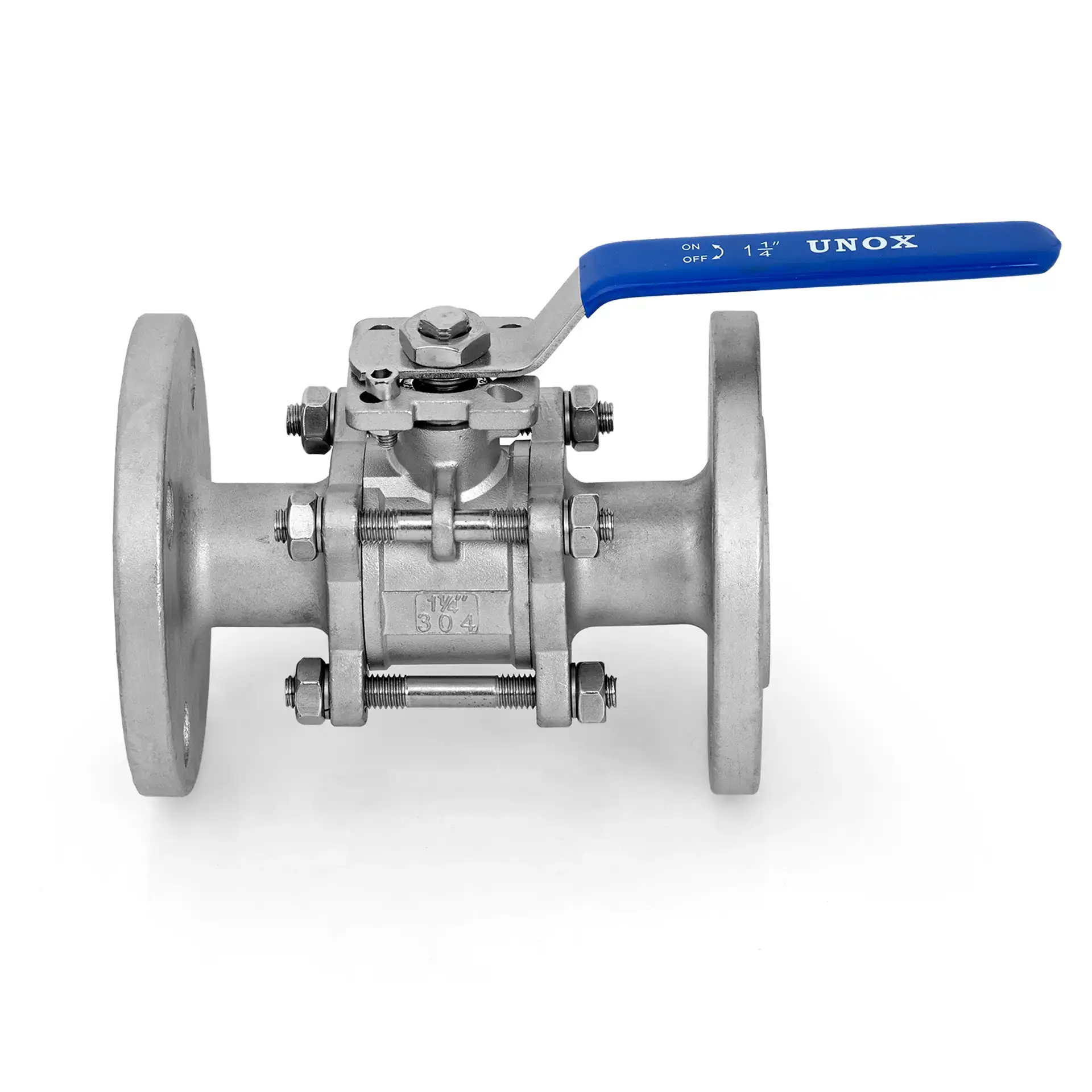

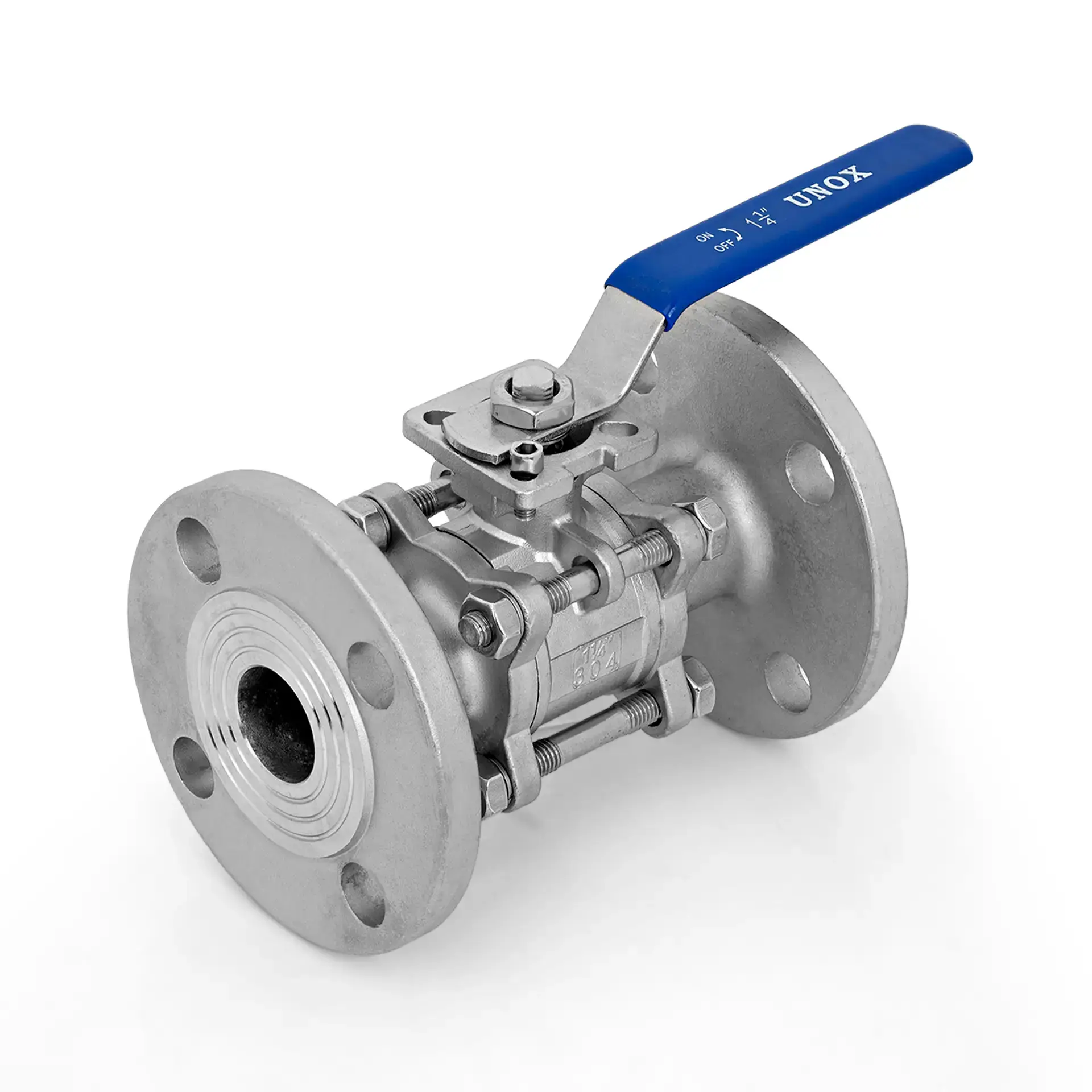

UNOX 3 Pieces Stainless Steel Ball Valve With Mounting Pad Flanged

3 Pieces Stainless Steel Ball Valve with Mounting Pad Flanged

The UNOX 3 Pieces Stainless Steel Ball Valve with Mounting Pad Flanged is a high-performance, automation-ready shut-off valve built for maximum reliability, easy maintenance, and long service life in demanding industrial applications. Fully constructed from AISI 304 or AISI 316 stainless steel, it provides outstanding corrosion resistance and mechanical strength, making it ideal for chemical processing, food & beverage, pharmaceutical, water treatment, marine, and HVAC systems.

Its three-piece body design is engineered for serviceability: the central section can be removed without disturbing the pipeline connections, allowing fast cleaning, inspection, and replacement of internal components. The full-bore construction ensures maximum flow capacity and minimal pressure loss, while the precision-machined stainless steel ball and reinforced PTFE seats provide smooth operation and bubble-tight sealing, even in high-pressure or continuous-cycle service.

The ISO 5211 mounting pad enables direct pneumatic or electric actuator installation without additional brackets or couplings, reducing installation time and simplifying automation. Flanged connections, compliant with ISO 7005-1 / EN 1092-1 PN16 (~232 psi), ensure secure and leak-free integration into international piping systems. Rated for working pressures up to PN16 (~232 psi) and temperatures up to 200 °C (~392 °F), this valve is ready for tough industrial conditions.

Technical Features

• Body & Ball: 100 % AISI 304 / AISI 316 stainless steel for superior corrosion resistance
• Stem/Shaft: AISI 316 stainless steel, blow-out proof design
• Seats & Seals: Reinforced PTFE for long-lasting, leak-tight performance
• Connection Type: Flanged ISO 7005-1 / EN 1092-1 PN16 (~232 psi)
• Mounting Pad: ISO 5211 standard, actuator-ready
• Working Pressure: Up to PN16 (~232 psi)
• Maximum Operating Temperature: Up to 200 °C (~392 °F)
• Design: Three-piece body for easy maintenance and full-bore flow with minimal pressure drop

With its robust stainless steel construction, automation-friendly mounting pad, and maintenance-friendly design, the UNOX 3 Pieces Stainless Steel Ball Valve with Mounting Pad Flanged delivers long-lasting, precise, and dependable flow control for modern industrial piping systems.
