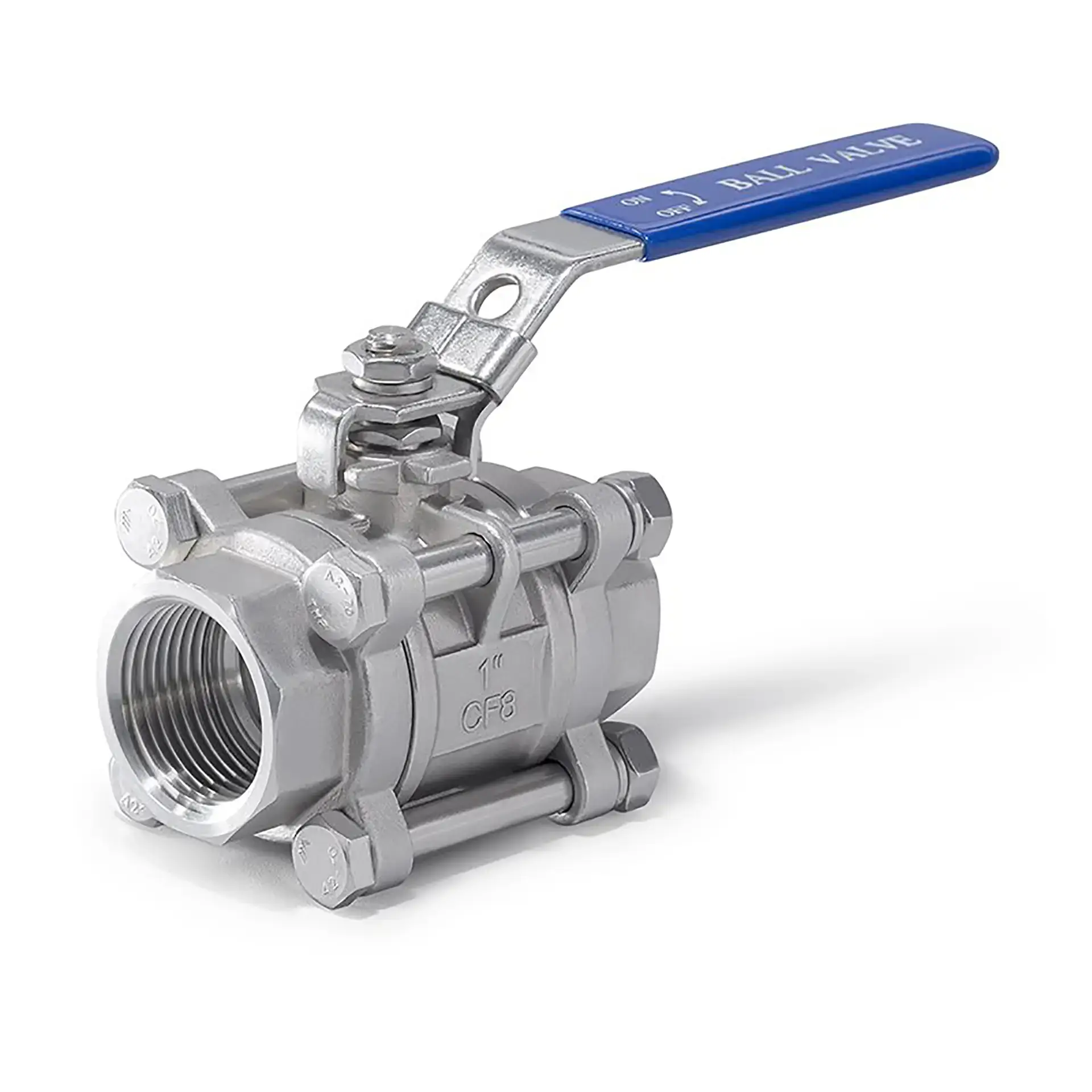

UNOX 3 Pieces Stainless Steel Ball Valve – Threaded

3 Pieces Stainless Steel Ball Valve – Threaded

The UNOX 3 Pieces Stainless Steel Ball Valve – Threaded is a heavy-duty, precision-engineered valve built for reliable shut-off and easy maintenance in demanding industrial and sanitary applications. Constructed entirely from AISI 304 or AISI 316 stainless steel, it offers outstanding corrosion resistance and mechanical strength, making it ideal for chemical processing, food & beverage, pharmaceutical production, water treatment, marine systems, and many other critical environments.

The three-piece body design is its key advantage: the center section can be removed without disturbing the pipeline connections, allowing fast cleaning, inspection, or replacement of internal parts. The full-bore construction provides maximum flow capacity with minimal pressure loss, while the precision-machined stainless steel ball and reinforced PTFE seats deliver smooth operation and bubble-tight sealing even in high-cycle or high-pressure service.

With BSP or NPT threaded ends, installation is quick and leak-free. The valve is designed for working pressures up to PN63 (≈900 psi) and maximum operating temperatures of 200 °C (≈392 °F), ensuring reliable performance under demanding thermal and pressure conditions.

Technical Features

• Body & Ball: 100 % AISI 304 / AISI 316 stainless steel
• Stem/Shaft: AISI 316 stainless steel, blow-out proof design
• Seats & Seals: Reinforced PTFE for long-lasting, leak-tight operation
• Connection Type: BSP or NPT threaded ends
• Working Pressure: Up to PN63 (~900 psi)
• Maximum Operating Temperature: Up to 200 °C (~392 °F)
• Design: 3-piece body for easy maintenance and full-bore flow with minimal pressure drop

With its maintenance-friendly three-piece design, robust stainless steel construction, and precise shut-off, the UNOX 3 Pieces Stainless Steel Ball Valve – Threaded provides long service life and dependable flow control for modern industrial piping systems.
