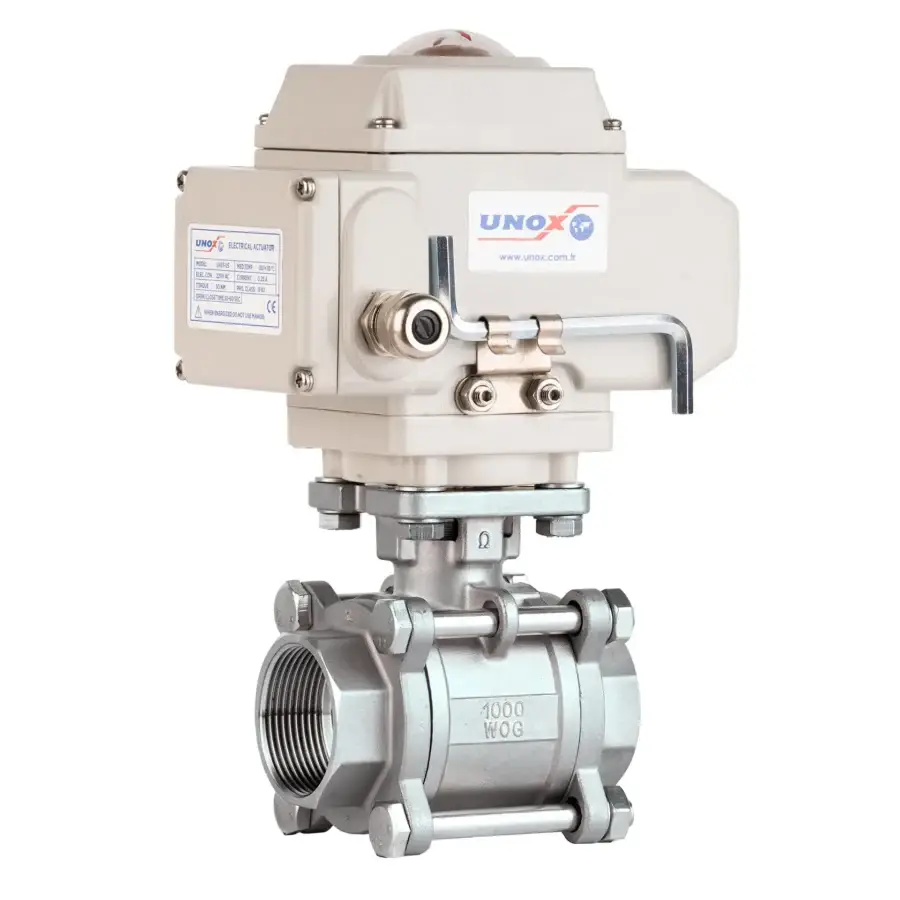

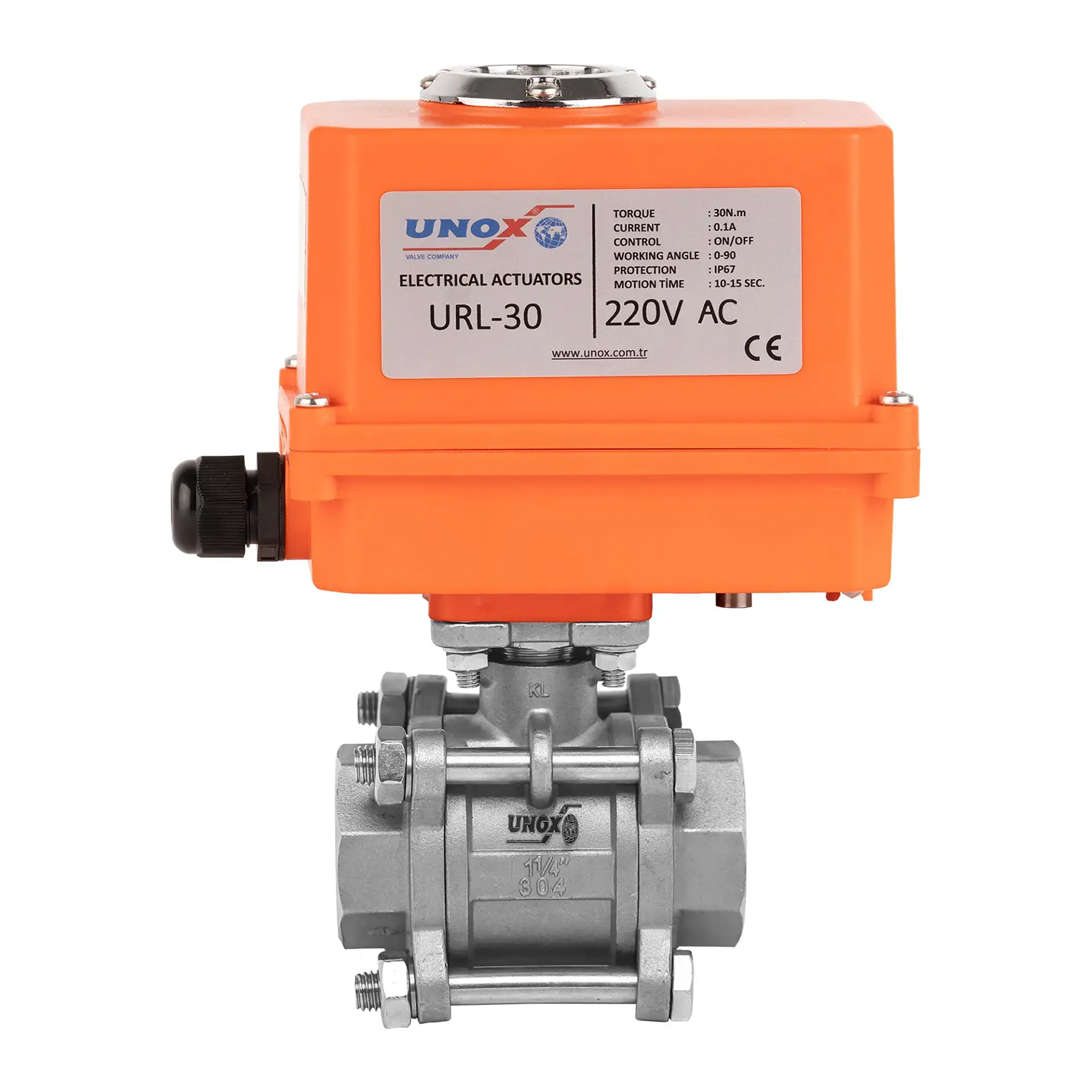

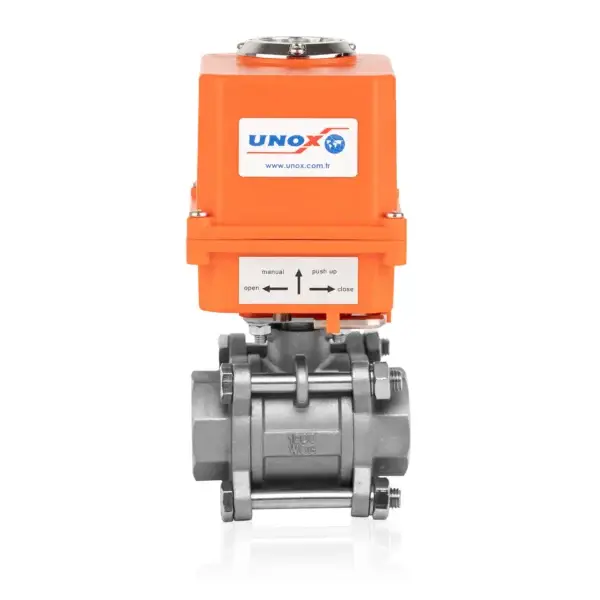

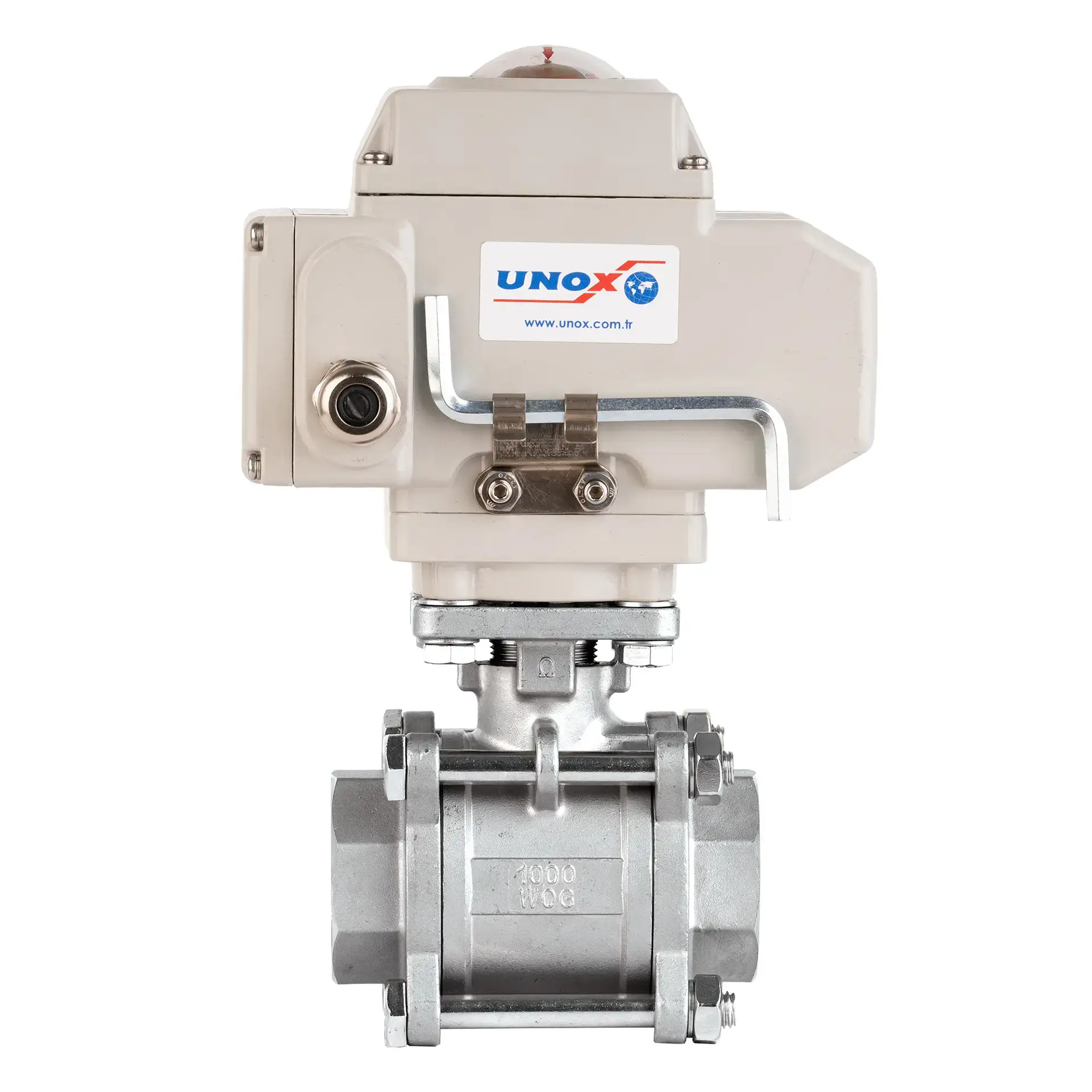

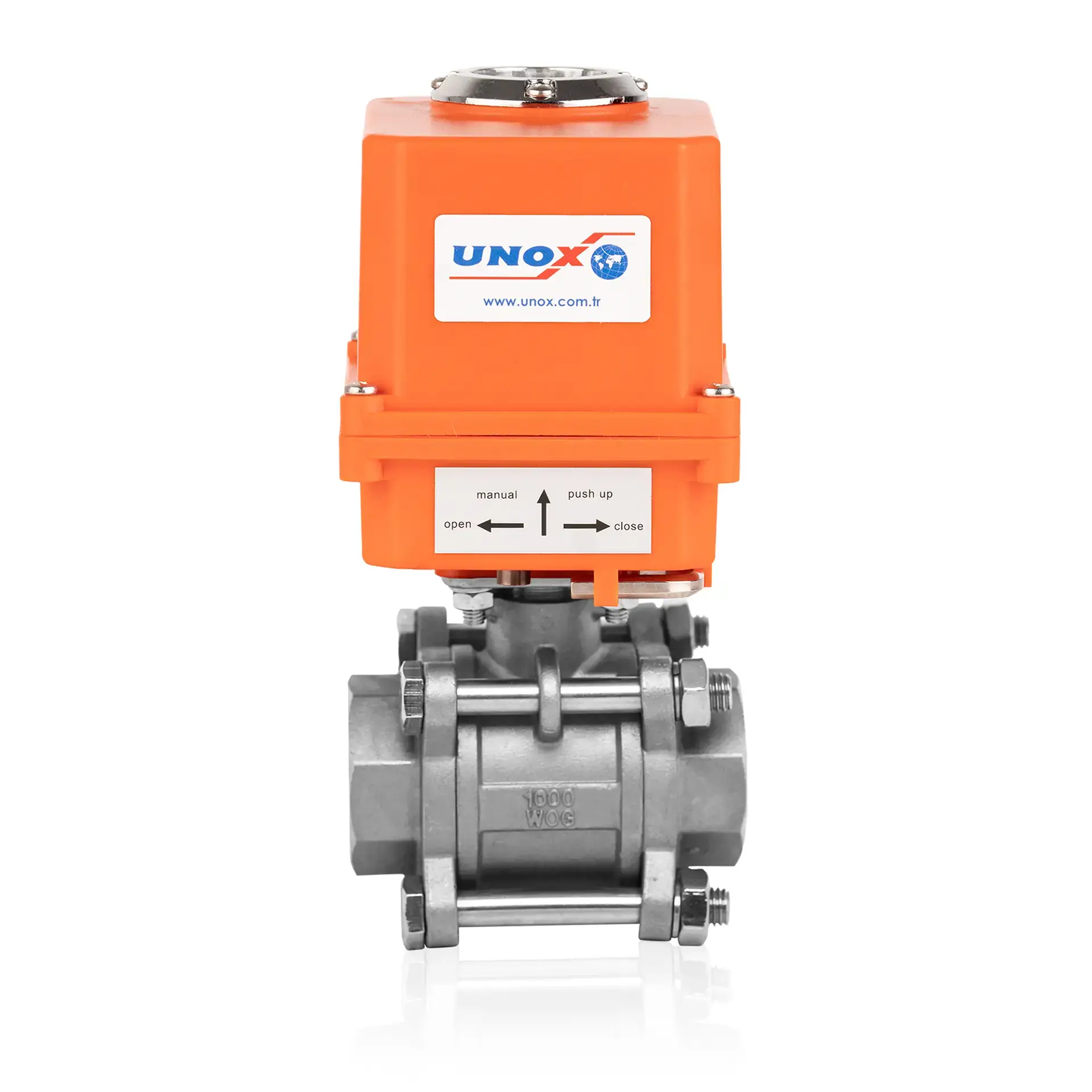

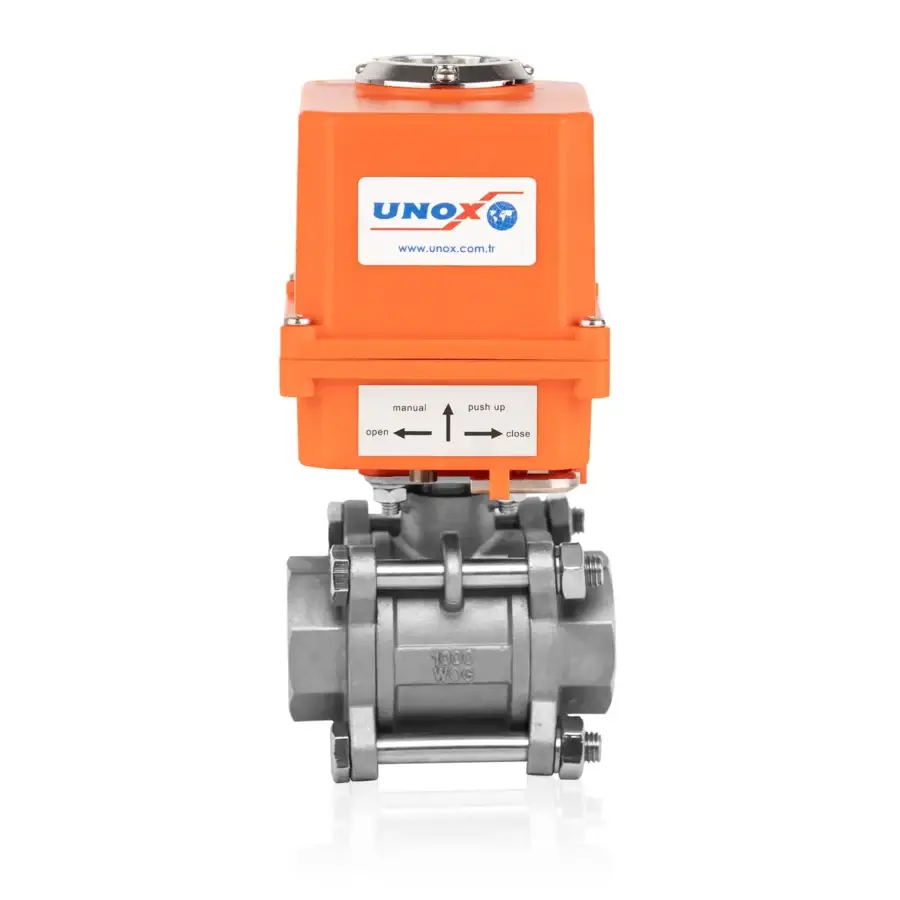

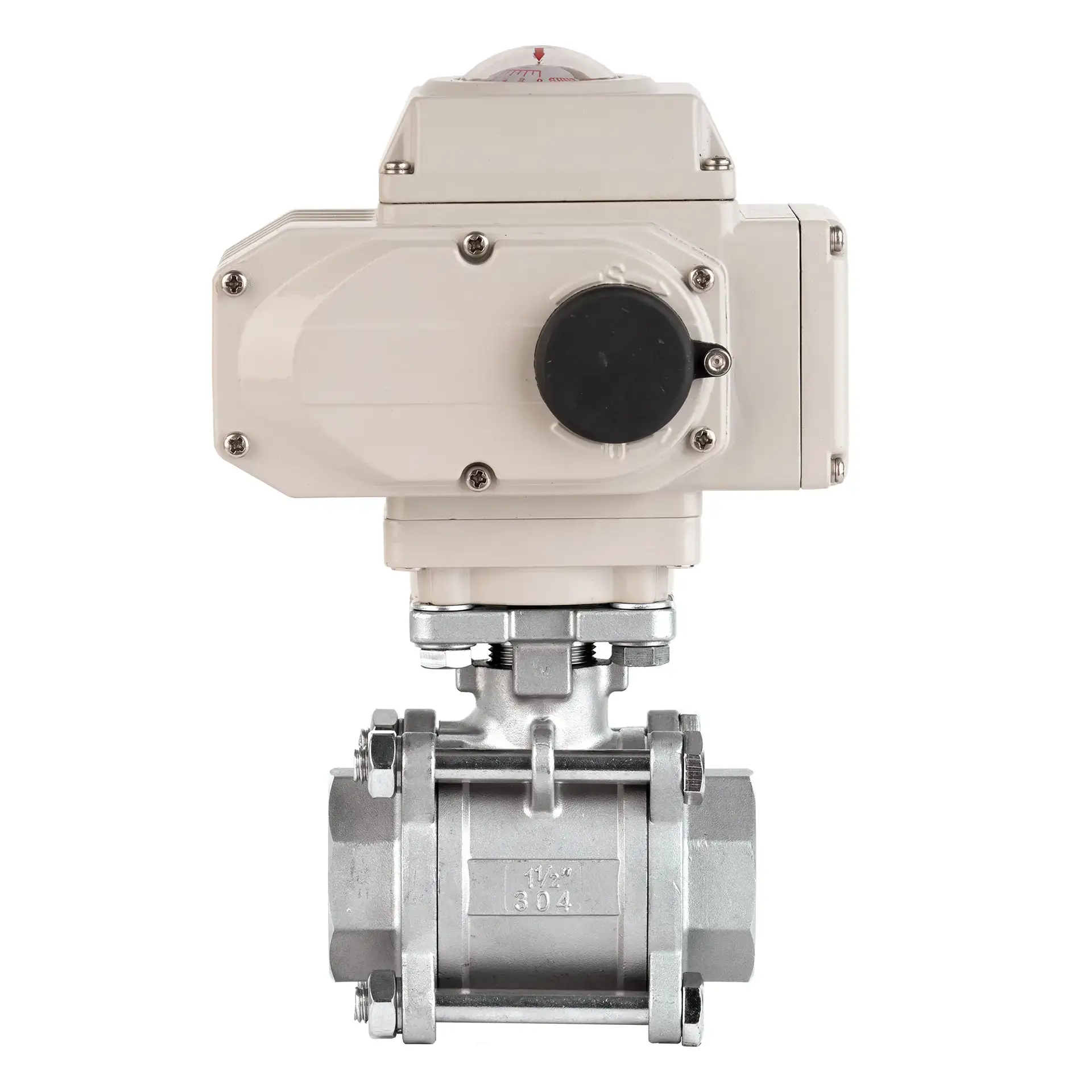

UNOX 3 Pieces Ball Valve With Electric Actuator

The UNOX Stainless Steel Threaded Ball Valve with Electric Actuator – 3 Piece is a high-performance, automation-ready shut-off valve engineered for demanding industrial and sanitary applications. Made entirely from AISI 304 or AISI 316 stainless steel, it provides excellent corrosion resistance and mechanical strength, ensuring long-lasting performance in chemical processing, food & beverage, pharmaceutical, water treatment, marine, and HVAC systems.

The 3-piece body design is ideal for processes that require frequent cleaning or maintenance. The center section can be removed without disturbing the threaded pipeline connections, making seat and seal replacement quick and cost-effective. The full-bore flow path guarantees maximum Cv with minimal pressure drop, while the precision-machined stainless steel ball and reinforced PTFE/Viton seats ensure bubble-tight sealing and smooth operation even in high-cycle service.

The robust electric actuator allows both on/off and modulating control and is available in 24 V DC, 110 V AC, or 220 V AC versions. Built to IP67 protection standards, it resists dust and water ingress and can include optional limit switches, manual override, and feedback outputs (4–20 mA or 0–10 V) for precise position monitoring and integration into modern process control systems.

Key Features & Specifications

• Body & Ball: 100 % AISI 304 / AISI 316 stainless steel

• Design: 3-piece construction for easy in-line maintenance

• Connection: BSP or NPT threaded ends

• Seats & Seals: Reinforced PTFE / Viton for superior chemical compatibility

• Working Pressure: Up to PN63 (≈ 915 psi)

• Operating Temperature: −20 °C to +180 °C (≈ −4 °F to +356 °F)

• Electric Actuator: On/Off or modulating; 24 V DC, 110 V AC, or 220 V AC options; IP67 protection; optional position feedback and manual override

With its maintenance-friendly 3-piece design, rugged stainless steel construction, and precise electric automation, the UNOX 3 Piece Stainless Steel Threaded Ball Valve with Electric Actuator delivers long-lasting, leak-free, and accurate flow control for critical industrial processes.
