UNOX 2 Way Stainless Steel Monoblock Ball Valve

Stainless Steel Monoblock Ball Valve

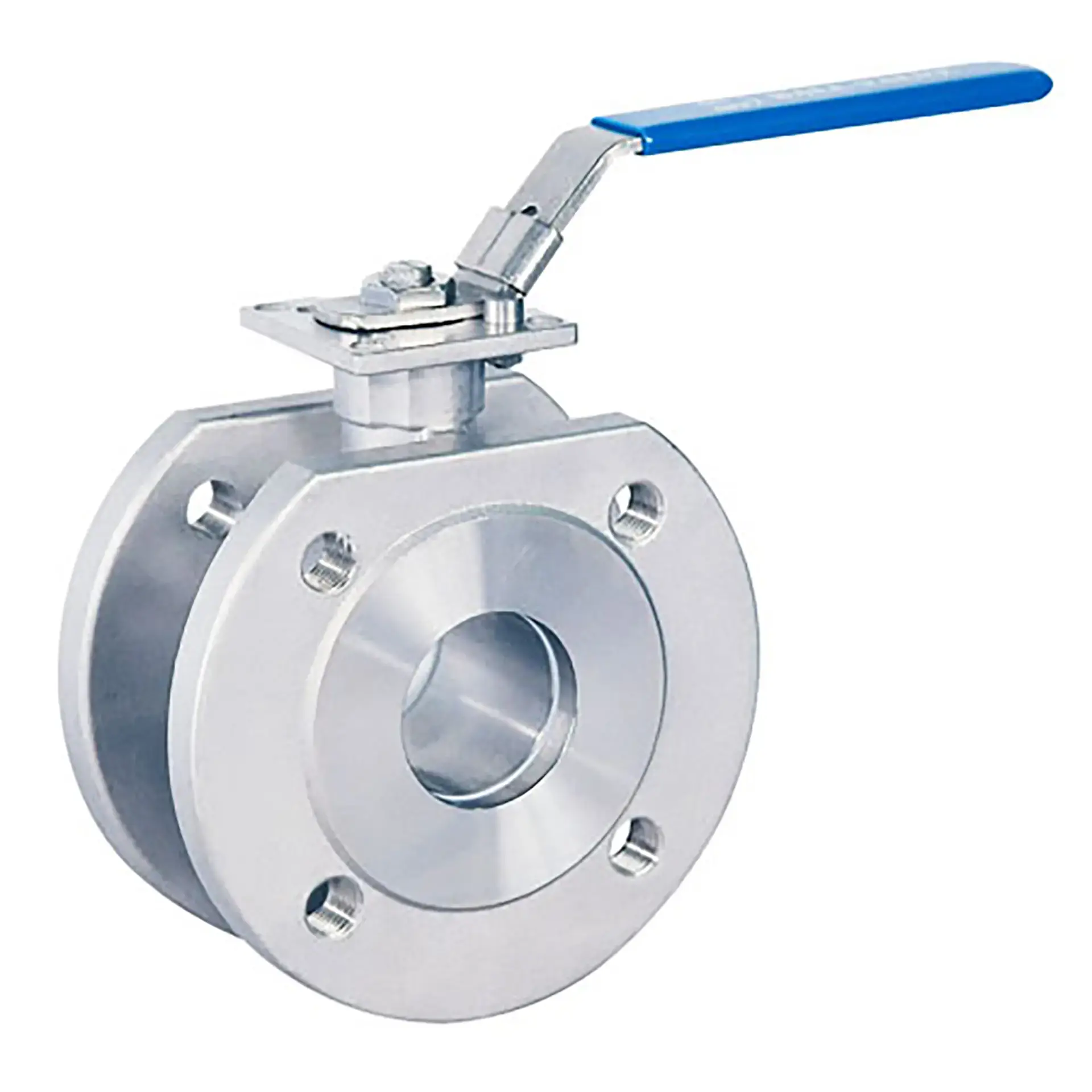

The UNOX 2 Way Stainless Steel Monoblock Ball Valve is a compact, one-piece body ball valve engineered for reliable shut-off and low pressure loss in demanding industrial services. The monoblock (one-piece) construction eliminates body joint leak paths and increases mechanical strength, while the full-bore flow delivers maximum Cv and minimal ΔP—ideal for water, steam, air, oils and many chemical media.

Manufactured entirely from AISI 304 or AISI 316 stainless steel, the valve provides superior corrosion resistance and long service life in aggressive or hygienic environments such as chemical processing, food & beverage, pharmaceuticals, marine, water treatment and HVAC. A precision-machined stainless ball working with reinforced PTFE seats ensures bubble-tight shut-off, smooth torque and high cycle life.

The flanged ends conform to international standards for easy, leak-free installation and maintenance in larger line sizes. Thanks to its rugged build, blow-out-proof stem and optional locking handle/actuator interface, the valve supports both manual and automated isolation duties. Designed for broad service conditions, it maintains sealing performance across elevated temperatures and continuous operation.

Technical Features (Specs)

• Body & Ball: 100% AISI 304 / AISI 316 stainless steel
• Stem: AISI 316 stainless steel, blow-out-proof
• Seats & Seals: Reinforced PTFE (R-PTFE) for chemical compatibility
• Design: Monoblock (one-piece) full-bore construction
• Connection: Flanged ISO 7005-1 / EN 1092-1, PN16 ≈ 232 psi
• Working Pressure: PN16 (232 psi)
• Max Operating Temperature: up to 200 °C / 392 °F
• Applications: Water, steam, air, oils, mild chemicals; F&B, pharma, chemical, marine, HVAC, water treatment

This flanged stainless steel monoblock ball valve combines compact size, robust stainless construction and tight shut-off—delivering durable, leak-free, low-maintenance performance in modern industrial piping.
