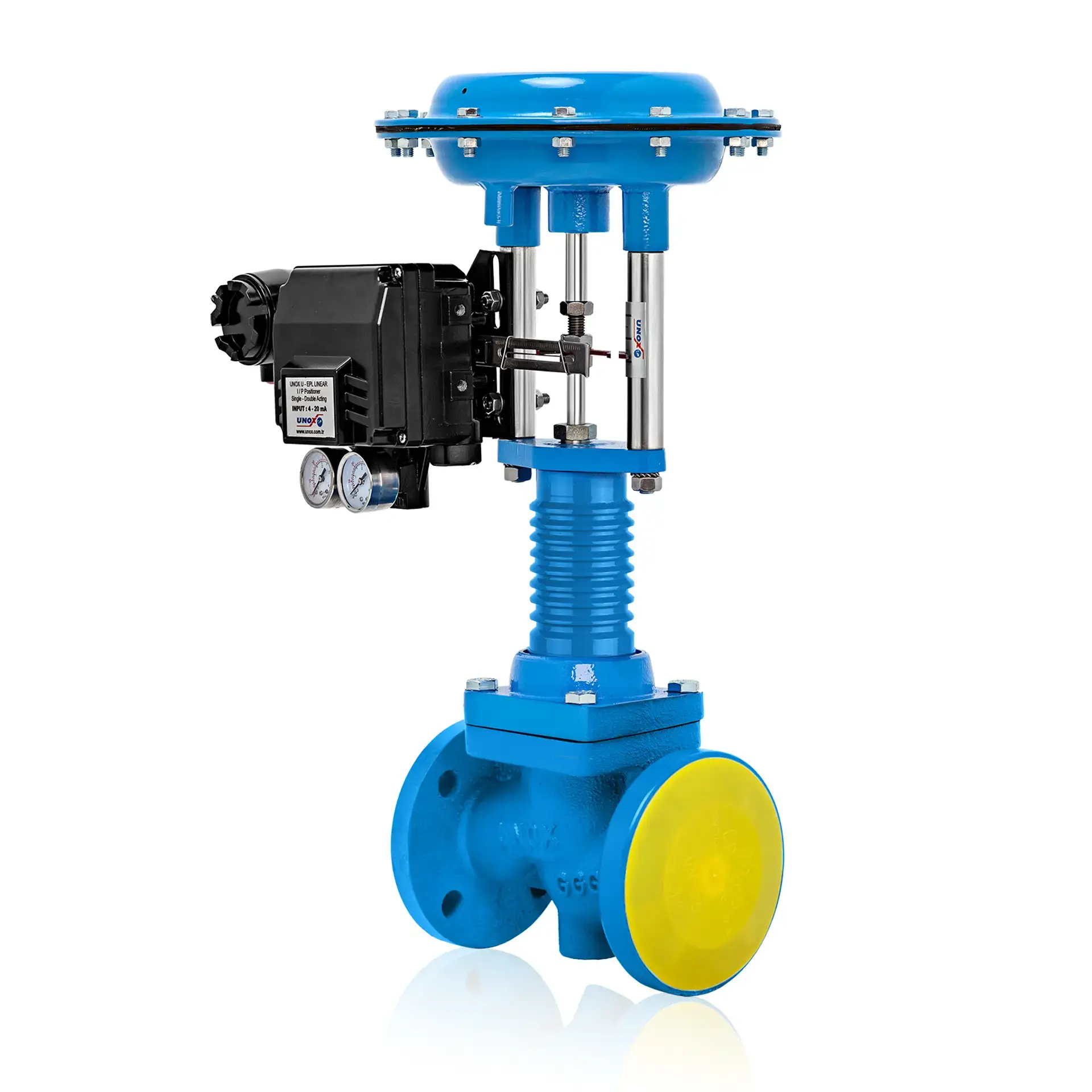

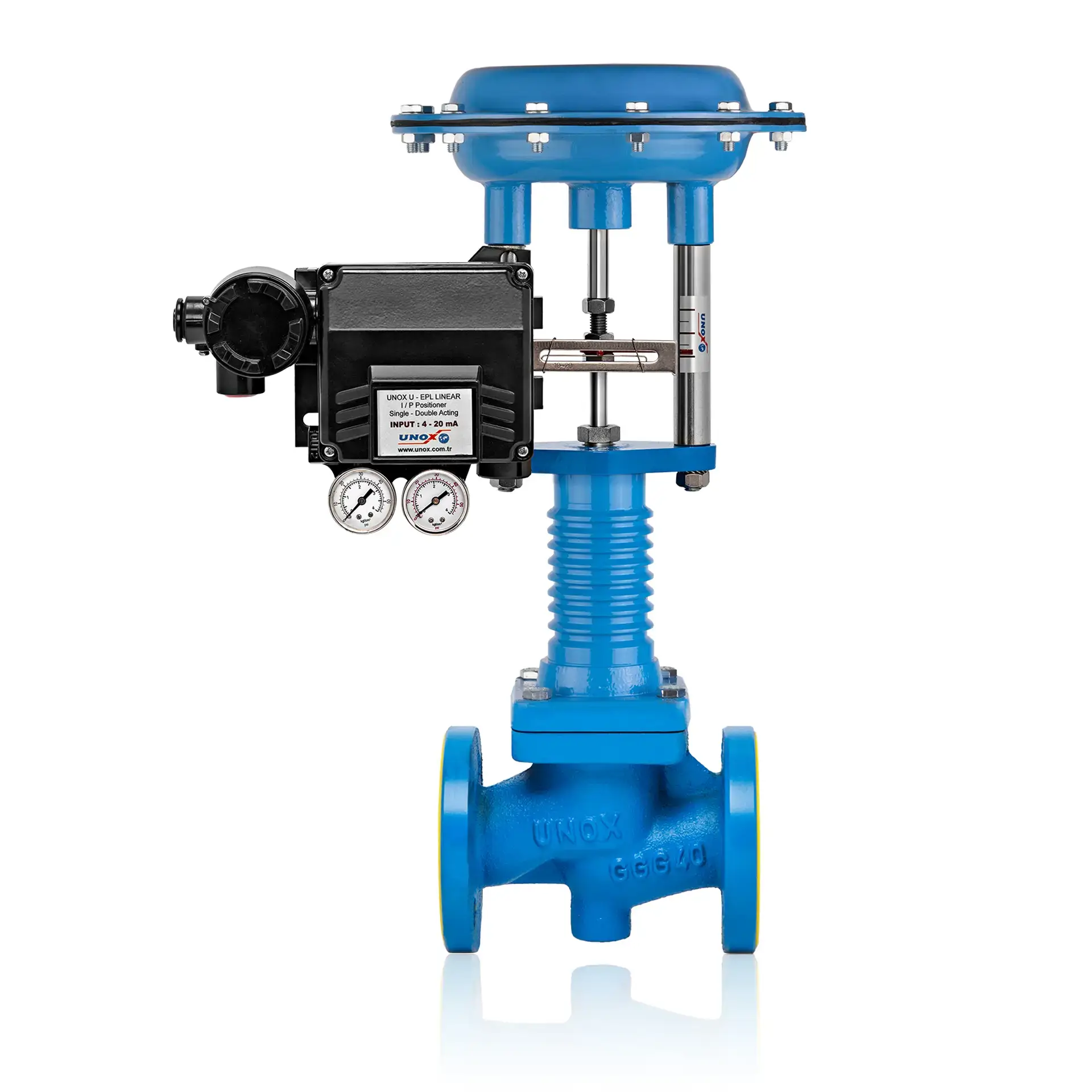

UNOX 2 Way Pneumatic Proportional Control Valve For Hot Oil – 33607

2 Way Pneumatic Proportional Control Valve For Hot Oil – 33607

The UNOX 2 Way Pneumatic Proportional Control Valve for Hot Oil is specifically engineered for accurate and reliable temperature and flow regulation in thermal oil, hot oil, and high-temperature process systems. Built with robust GGG-40.3 ductile iron construction and precision sealing components, this control valve ensures long-term durability and stable operation even under extreme thermal loads.

Its pneumatic proportional actuator allows smooth, modulating control, delivering precise flow adjustments that help maintain optimal process temperatures and energy efficiency. Designed for demanding industrial applications such as chemical plants, food processing, and heat-transfer oil circuits, the valve guarantees safety, reliability, and low maintenance.

The valve conforms to DIN 1092-2 (PN16) flange standards for easy integration into existing pipelines. The metal-to-metal Class IV seat and Class VI V-pack with metal bellows stem sealing minimize leakage and ensure excellent shut-off performance. Suitable for working conditions up to 350 °C (662 °F) and PN25 pressure (362 psi), it meets the highest international standards for thermal oil service.

Key Technical Features

• Body: GGG-40.3 ductile iron
• Pressure Rating: PN25 (362 psi)
• Fail-Safe Position: Normally closed – normally open
• Leakage Class: Class IV (metal to metal)
• Flow Characteristic: Proportional (modulating)
• Stem Sealing: Class VI V-pack with metal bellows
• Max. Operating Temperature: 350 °C (662 °F)
• Flange Connection: DIN 1092-2 (PN16)
