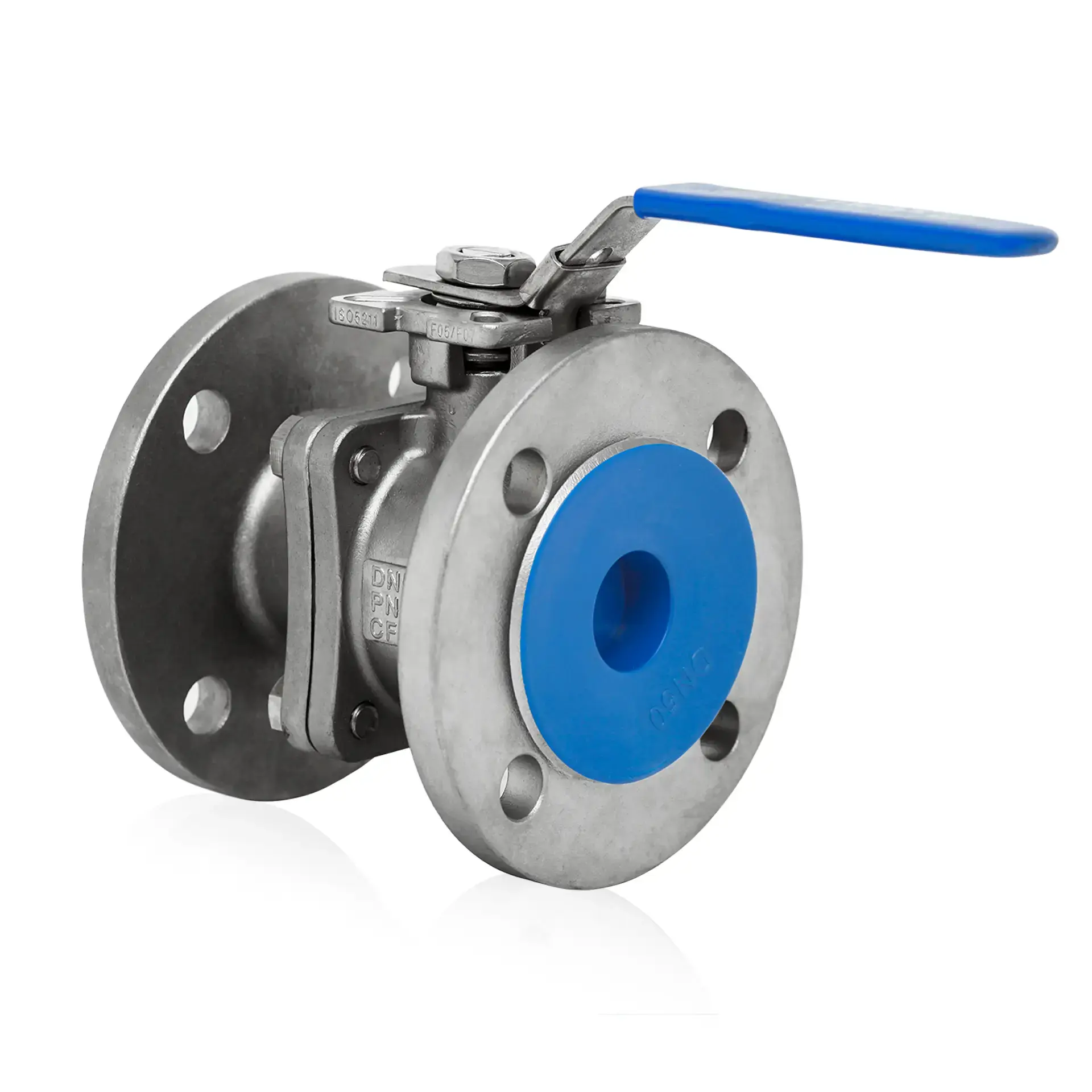

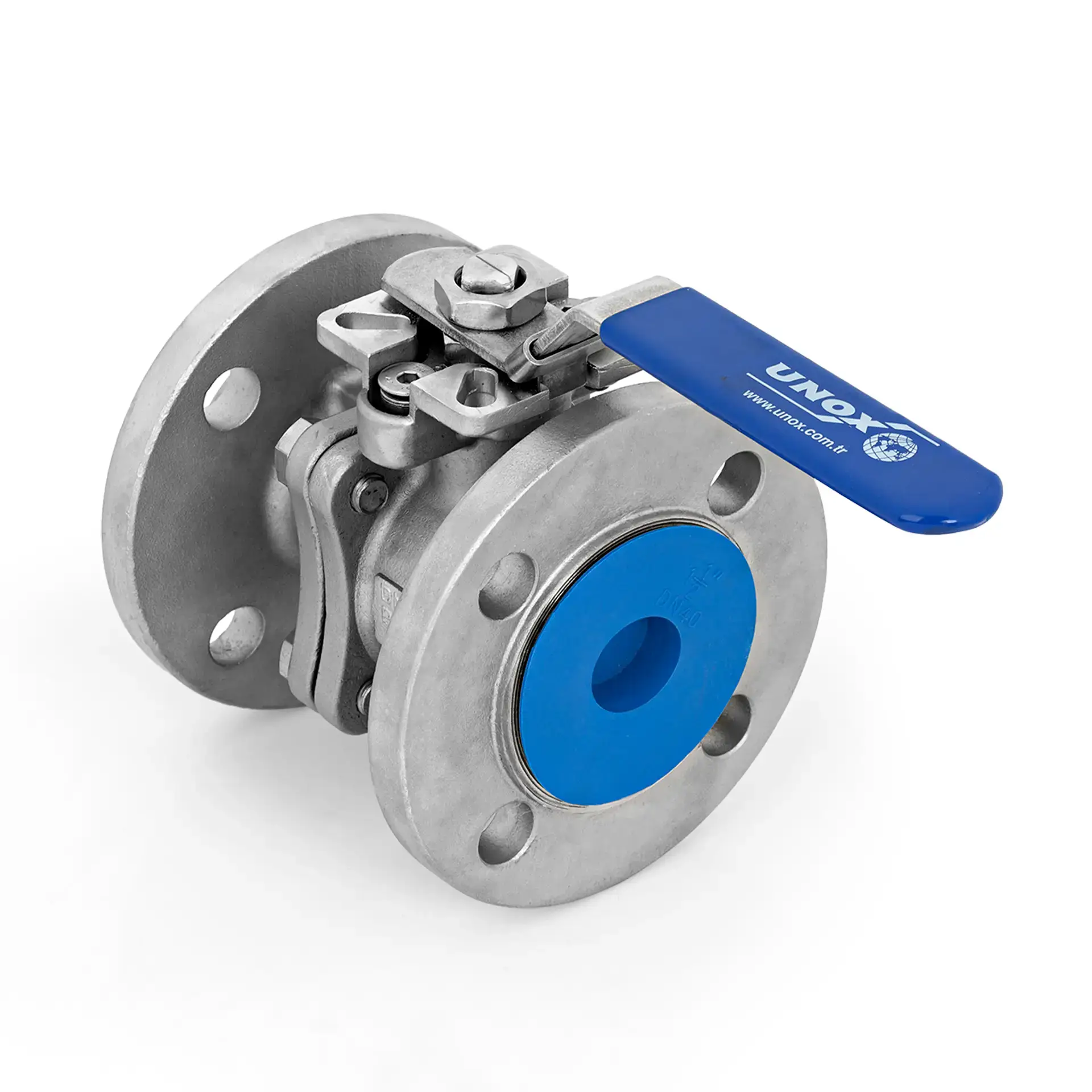

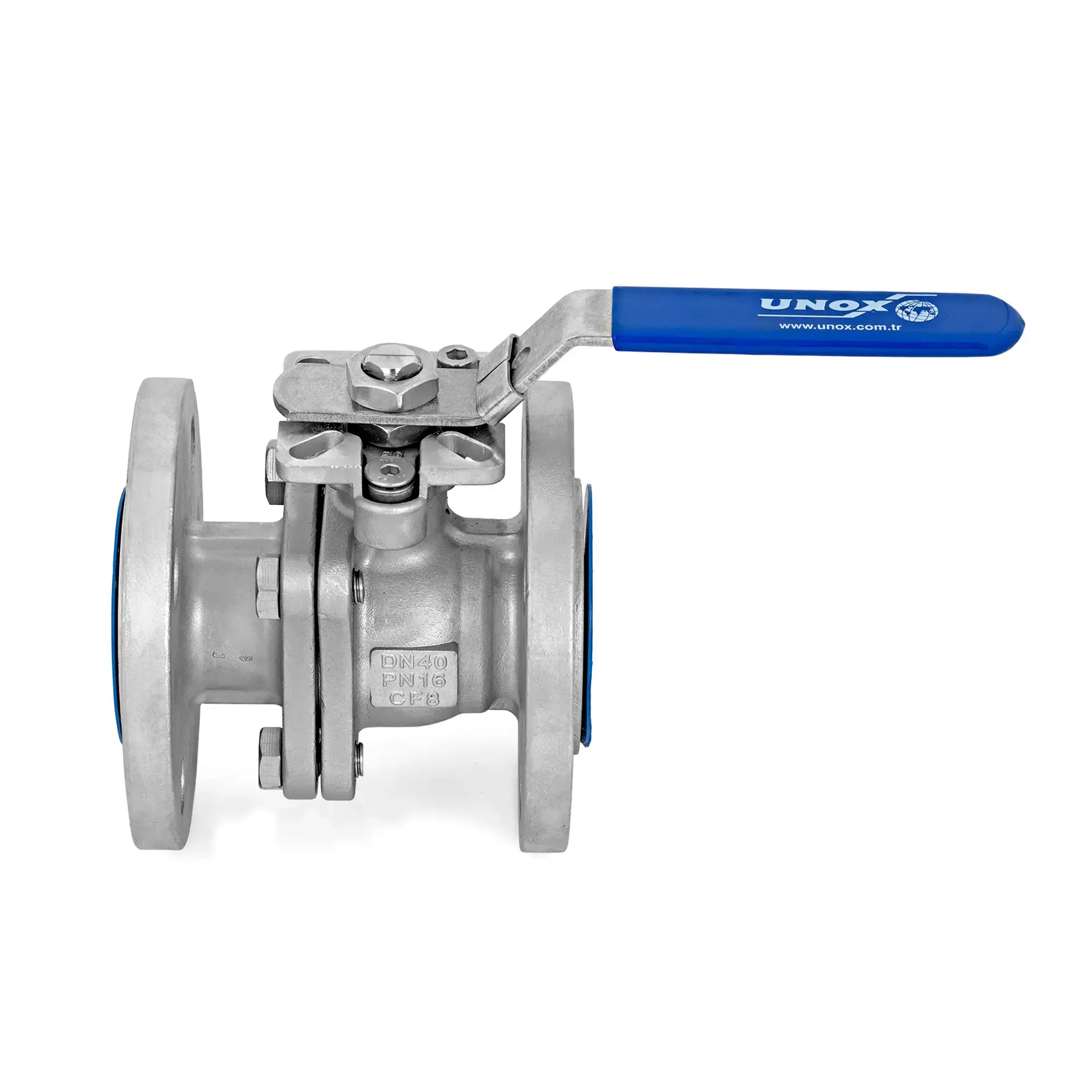

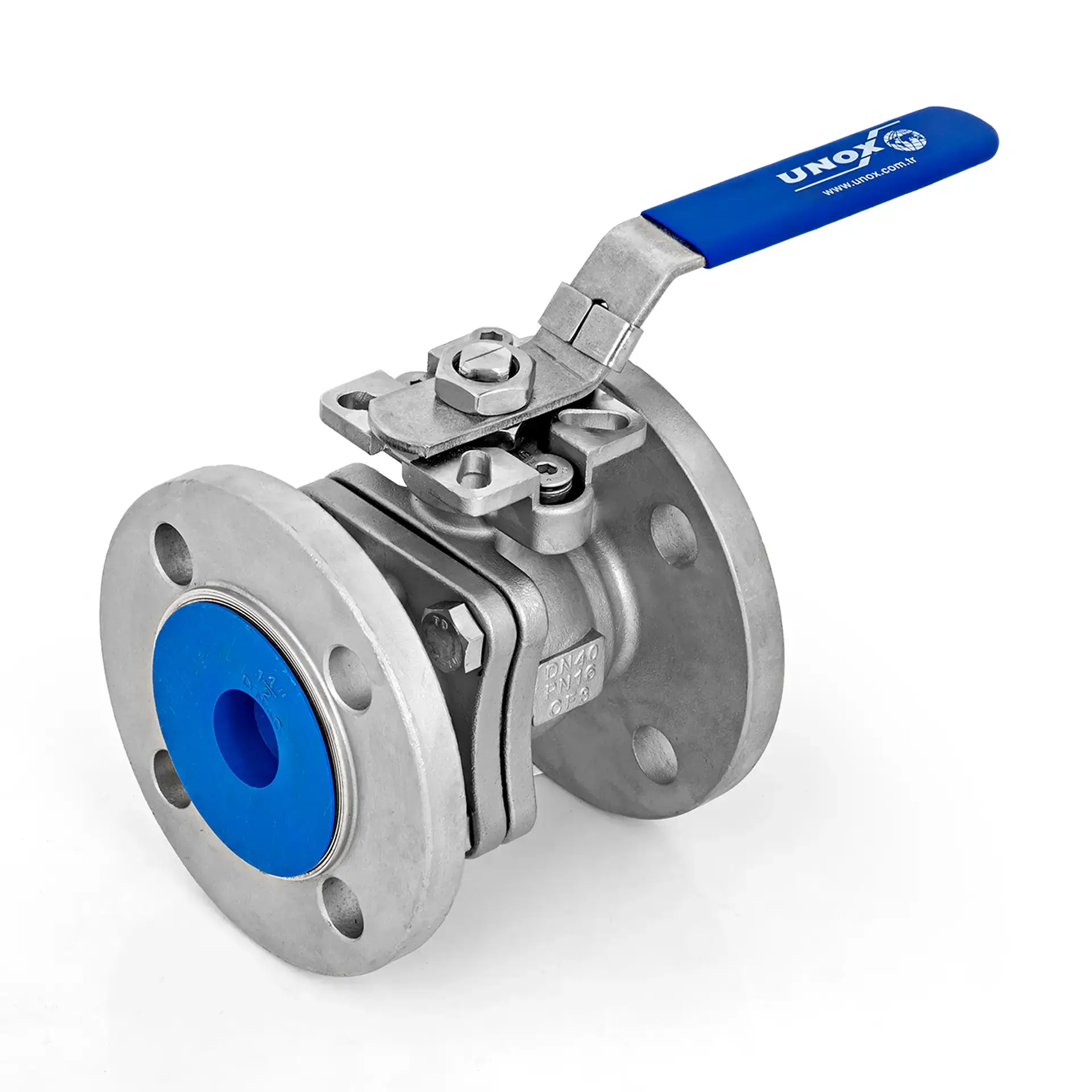

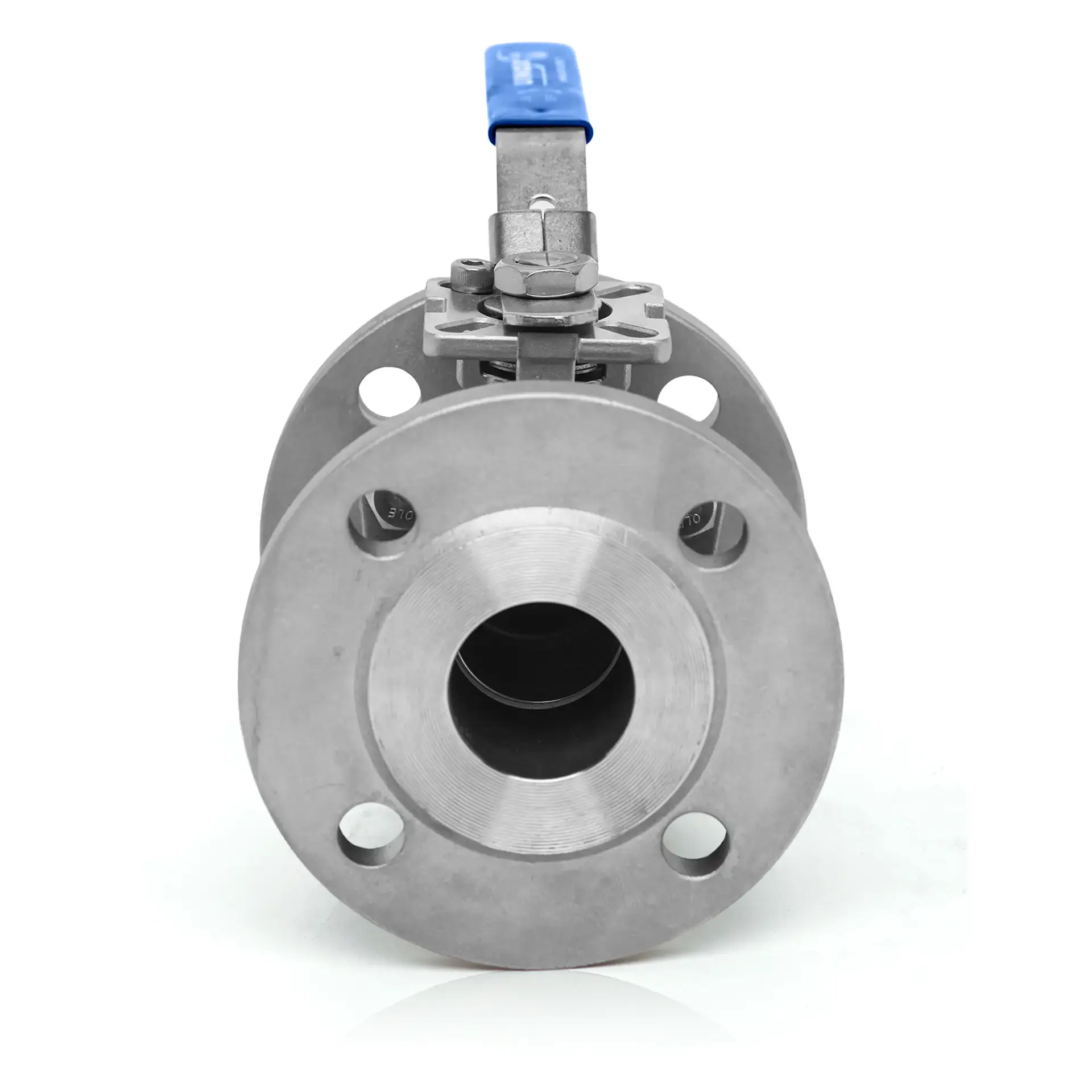

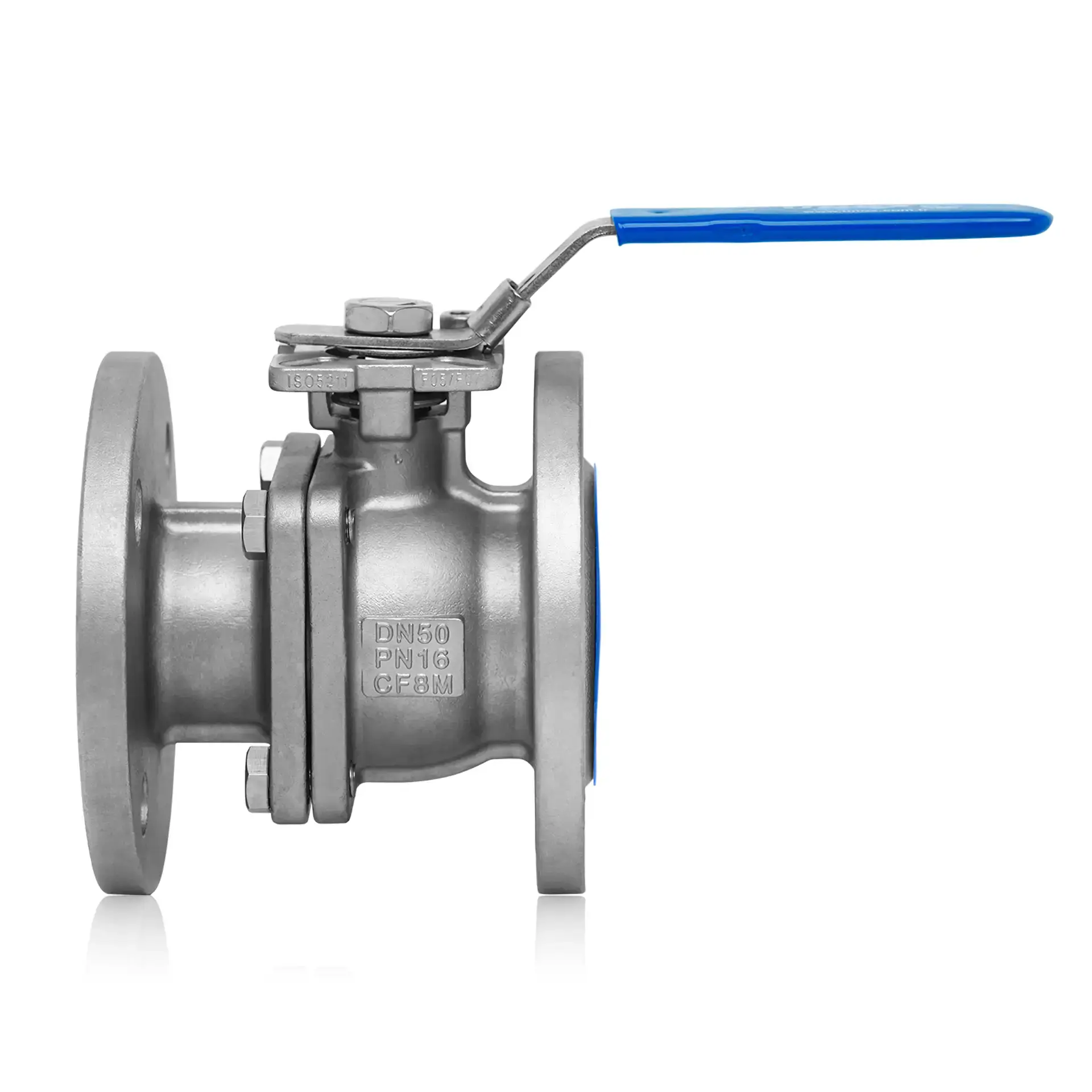

UNOX 2 Pieces Stainless Steel Ball Valve With Mounting Pad Flanged

2 Pieces Stainless Steel Ball Valve With Mounting Pad Flanged

The UNOX 2 Pieces Stainless Steel Ball Valve with Mounting Pad Flanged is a high-performance, automation-ready shut-off valve designed for industrial and hygienic applications where durability and reliable sealing are essential. Built entirely from AISI 304 or AISI 316 stainless steel, this valve provides exceptional corrosion resistance and mechanical strength, making it ideal for chemical processing, food and beverage, pharmaceutical, marine, and water treatment systems.

Its two-piece, full-bore design ensures unrestricted flow and minimal pressure drop, while the precision-machined stainless steel ball and reinforced PTFE seats deliver smooth operation and bubble-tight sealing, even under continuous high-pressure or high-temperature service. The ISO 5211 mounting pad allows direct installation of pneumatic or electric actuators without additional brackets or couplings—perfect for automated flow control in modern industrial networks.

Flanged ends in ISO 7005-1 / EN 1092-1 PN16 (≈232 psi) make installation secure, leak-free, and compatible with international piping standards. The valve withstands maximum operating pressures up to PN16 (≈232 psi) and temperatures up to 200 °C (≈392 °F), ensuring reliable performance in a variety of critical process conditions.

Technical Features

• Body & Ball: 100 % AISI 304 / AISI 316 stainless steel for superior corrosion resistance
• Stem/Shaft: AISI 316 stainless steel, blow-out proof design
• Seats & Seals: Reinforced PTFE for chemical compatibility and tight sealing
• Connection Type: Flanged ISO 7005-1 / EN 1092-1 PN16 (~232 psi)
• Mounting Pad: ISO 5211 standard, actuator-ready
• Working Pressure: Up to PN16 (~232 psi)
• Maximum Operating Temperature: Up to 200 °C (~392 °F)
• Design: Full-bore construction for maximum flow with minimal pressure loss

With rugged stainless construction, maintenance-friendly design, and ready-to-automate mounting pad, the UNOX 2 Pieces Stainless Steel Ball Valve with Mounting Pad – Flanged is the perfect choice for engineers seeking long-lasting, leak-tight, and automated flow control.
