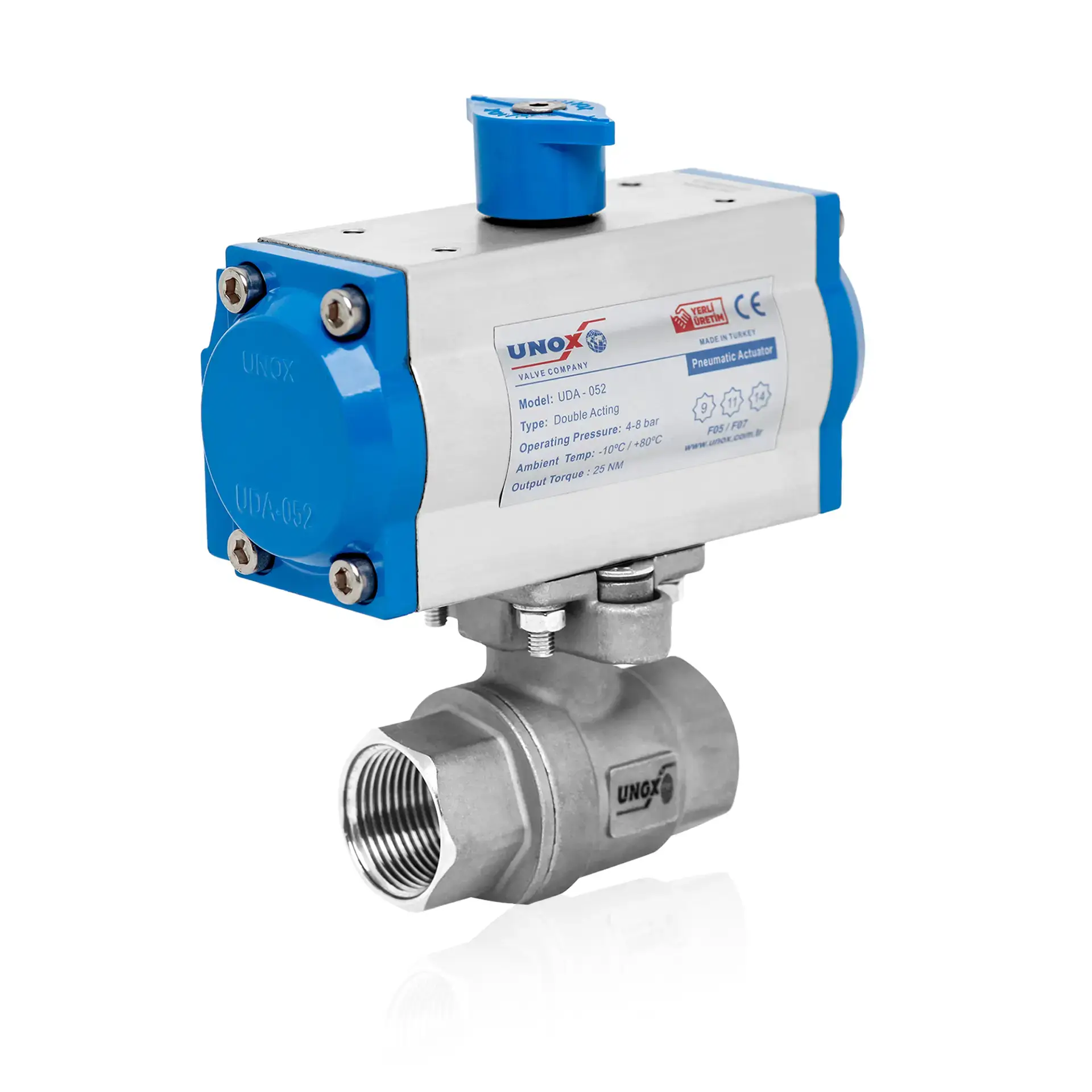

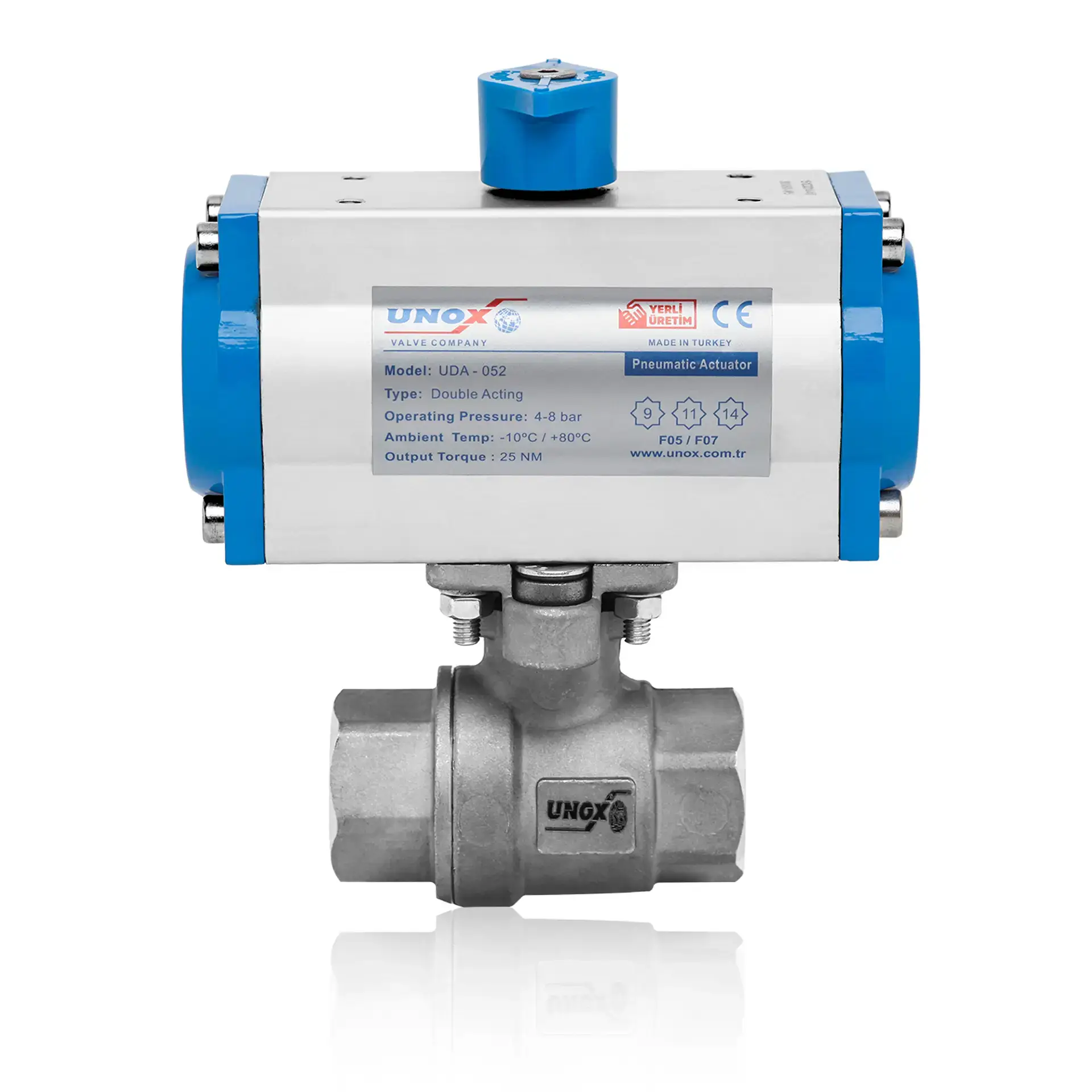

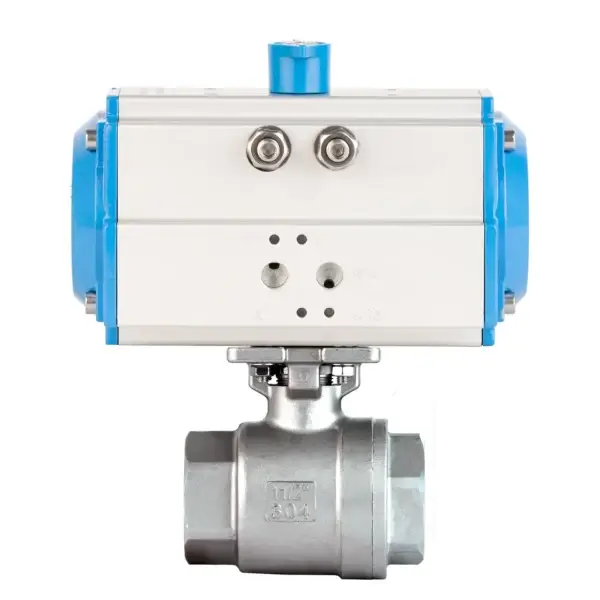

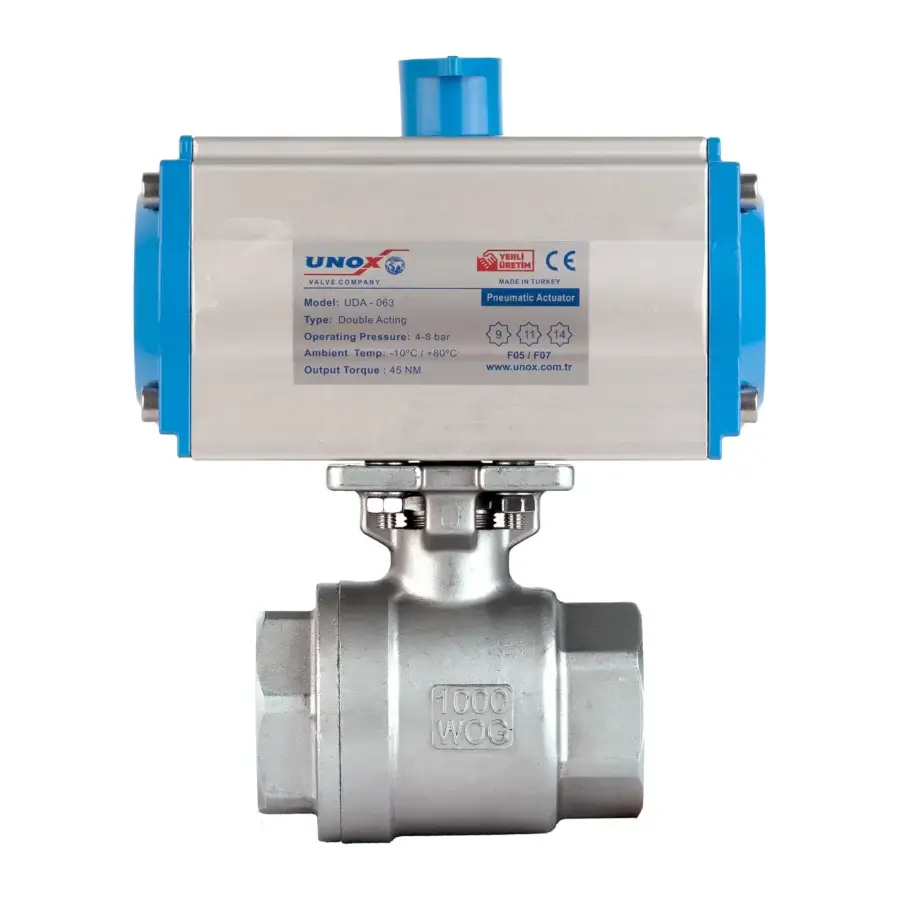

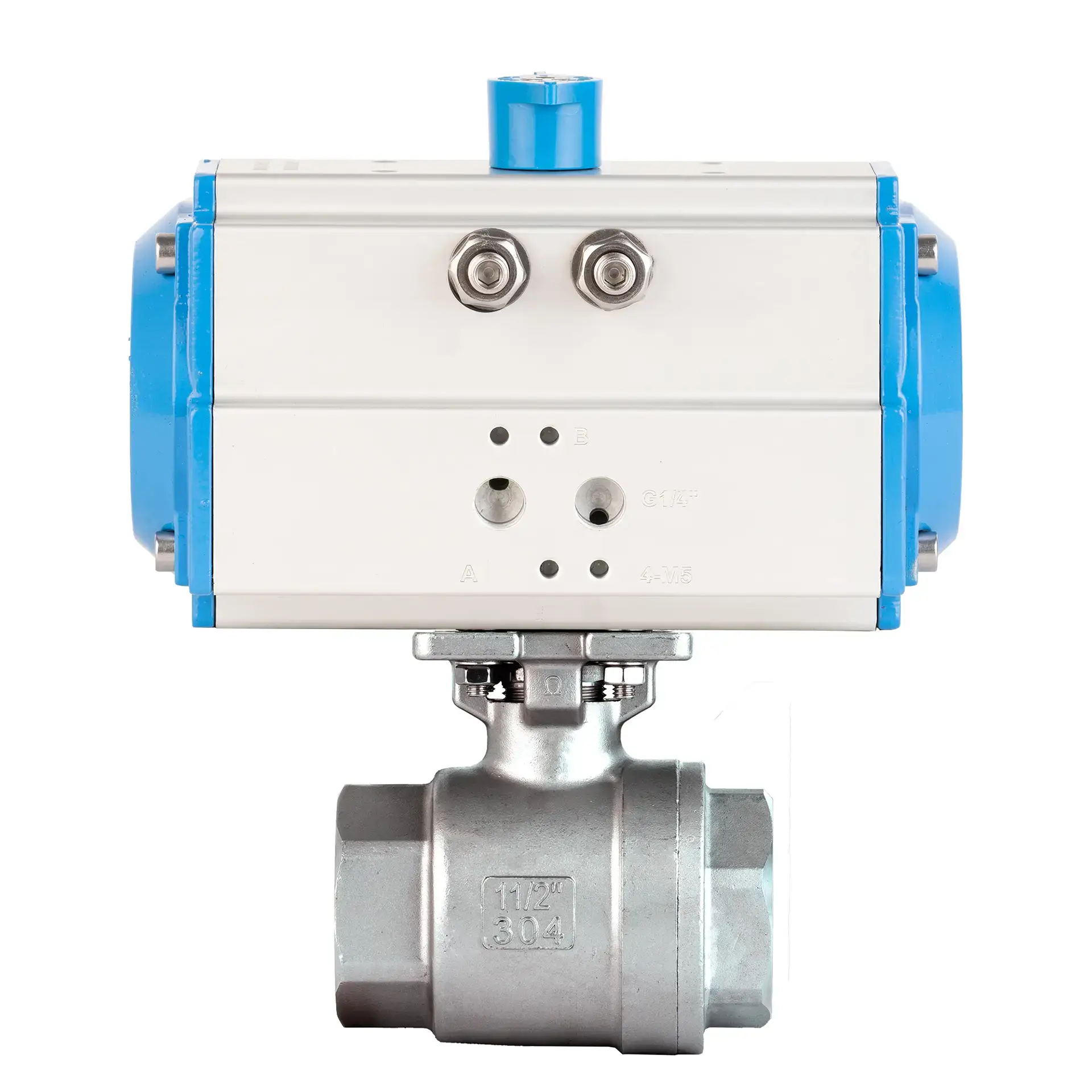

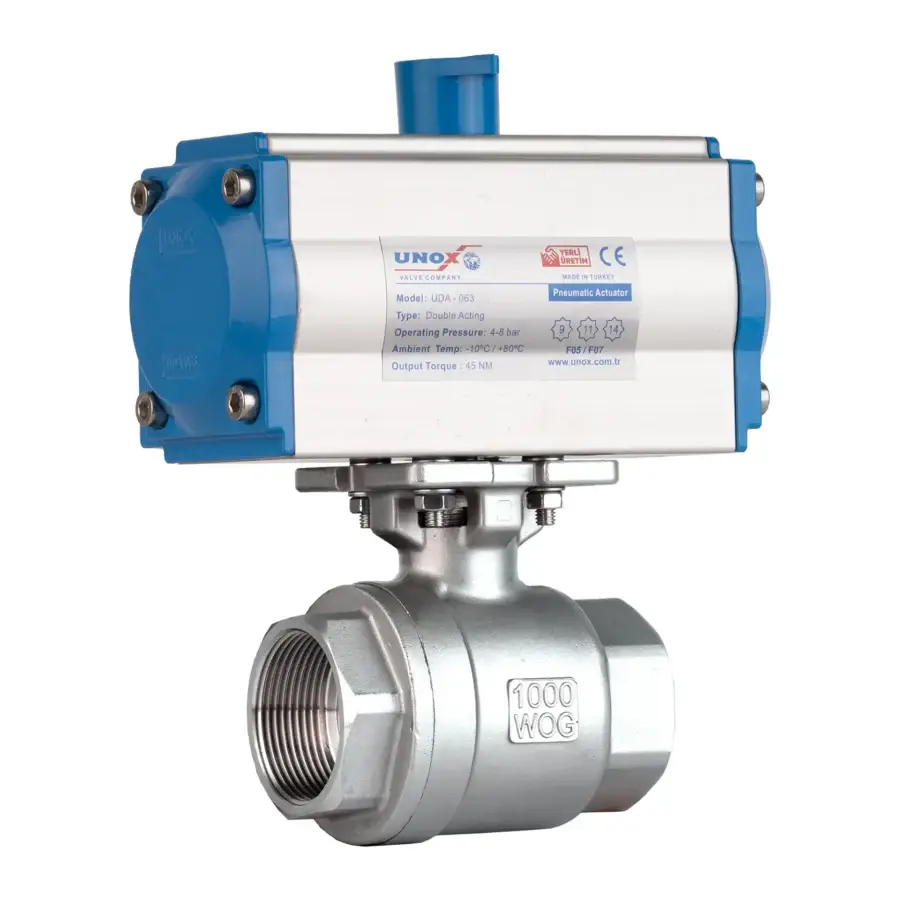

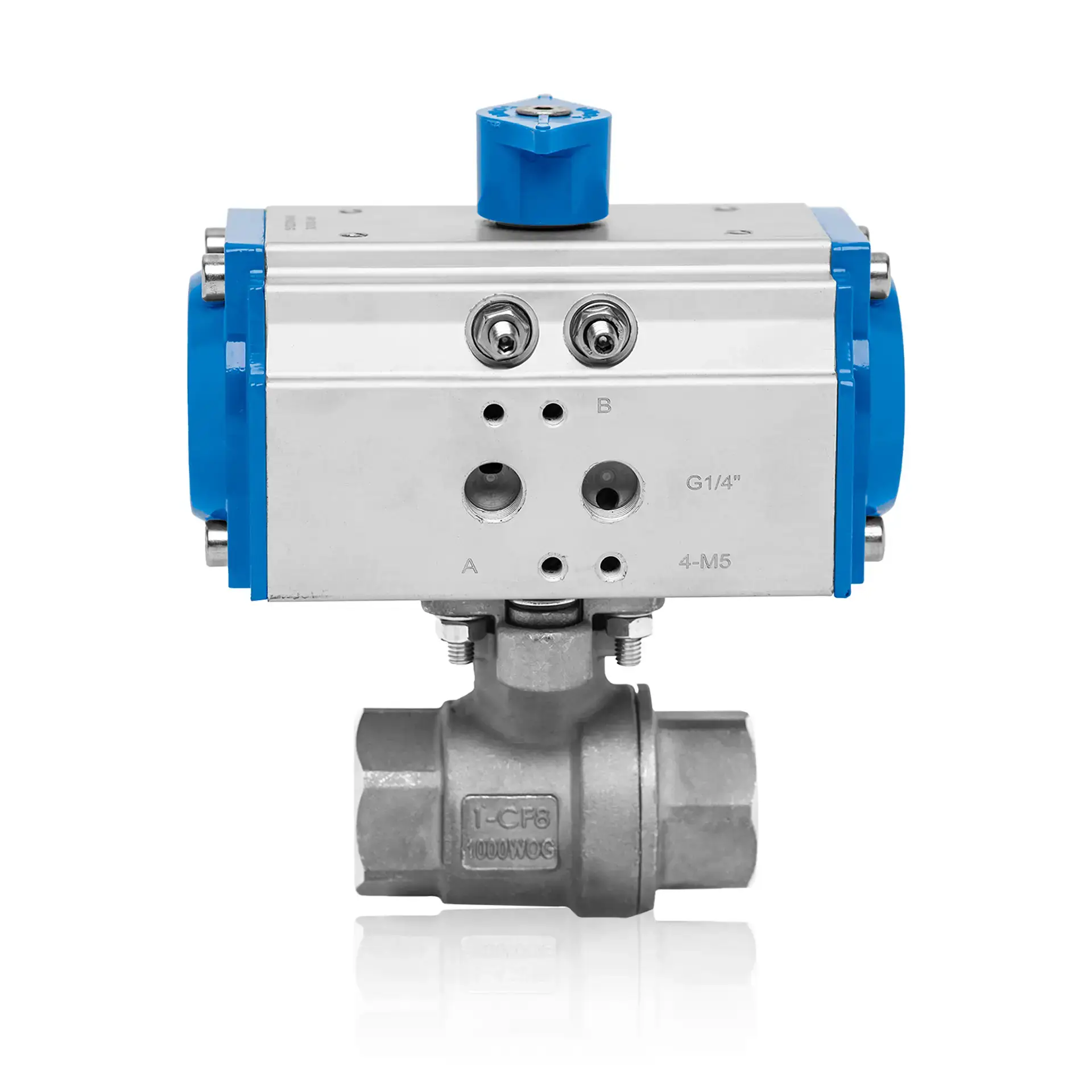

UNOX 2 Pieces Stainless Steel Ball Valve With Double Acting Pneumatic Actuator – Threaded

2 Pieces Stainless Steel Ball Valve With Double Acting Pneumatic Actuator – Threaded

The UNOX 2 Pieces Stainless Steel Ball Valve with Double Acting Pneumatic Actuator – Threaded is a premium flow-control solution engineered for industrial applications requiring precise on/off or modulating operation. Built with a two-piece AISI 304 stainless steel body, this valve offers exceptional corrosion resistance, strength, and long service life, making it ideal for use in chemical processing, water treatment, food & beverage, oil & gas, and pharmaceutical industries.

The double acting pneumatic actuator provides powerful and balanced torque in both opening and closing directions, ensuring quick and reliable operation. Unlike spring-return actuators, double acting actuators use air pressure for both movements, offering consistent performance and longer cycle life while minimizing air consumption. The actuator housing is made of high-quality aluminum extrusion for light weight and durability, and incorporates nitrile rubber seals to ensure airtight performance.

This valve features full port flow for minimal pressure drop and is equipped with female threaded ends (BSP or NPT optional) for easy installation in pipelines. With a working pressure rating up to PN63 (approx. 915 psi) and a temperature range of -20 °C to +180 °C (-4 °F to +356 °F), it delivers outstanding reliability in demanding conditions.

Key Features:

• Valve Body: AISI 304 stainless steel, 2-piece design for easy maintenance and corrosion resistance
• Connection Type: BSP or NPT threaded ends for fast, leak-proof installation
• Working Pressure: Up to PN63 (approx. 915 psi)
• Temperature Range: -20 °C to +180 °C (-4 °F to +356 °F)
• Actuator Type: Double acting pneumatic actuator for powerful bi-directional operation
• Sealing: PTFE seats for tight shut-off and chemical compatibility
• Design: Full bore for minimal pressure loss and high flow capacity

The UNOX 2 Pieces Stainless Steel Ball Valve with Double Acting Pneumatic Actuator – Threaded combines robust stainless steel construction with precise pneumatic automation, making it the perfect solution for industrial fluid control systems where durability, safety, and efficiency are critical.
