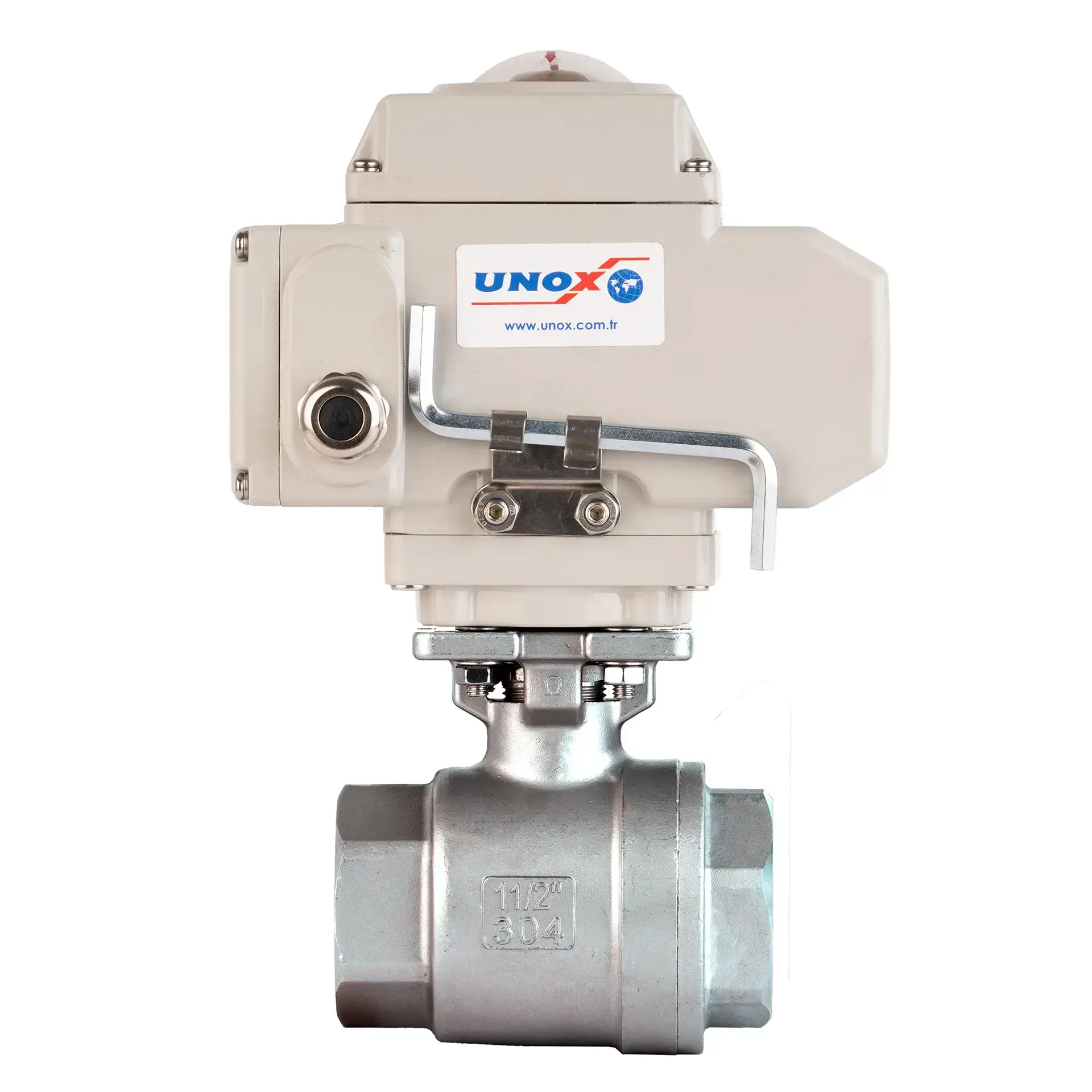

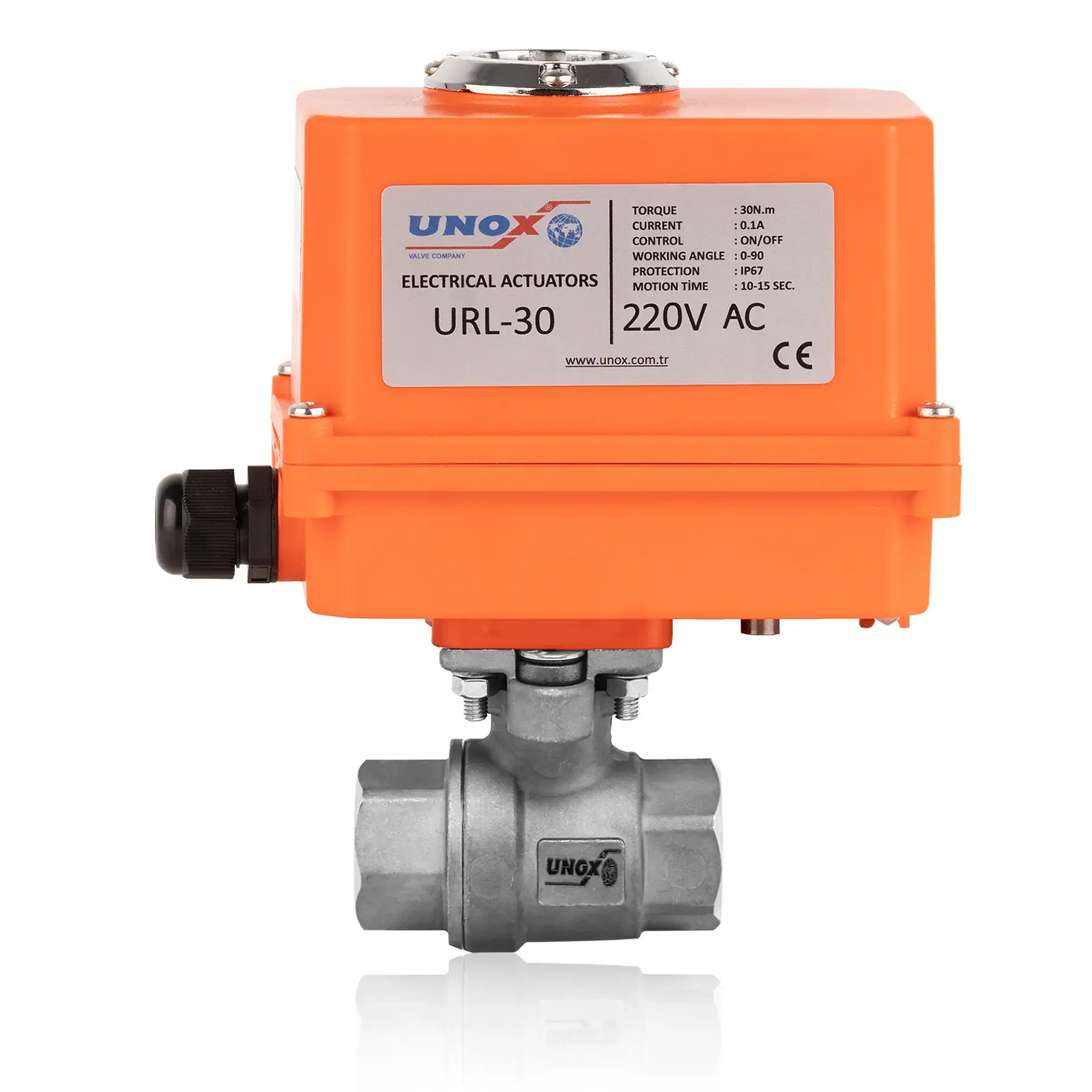

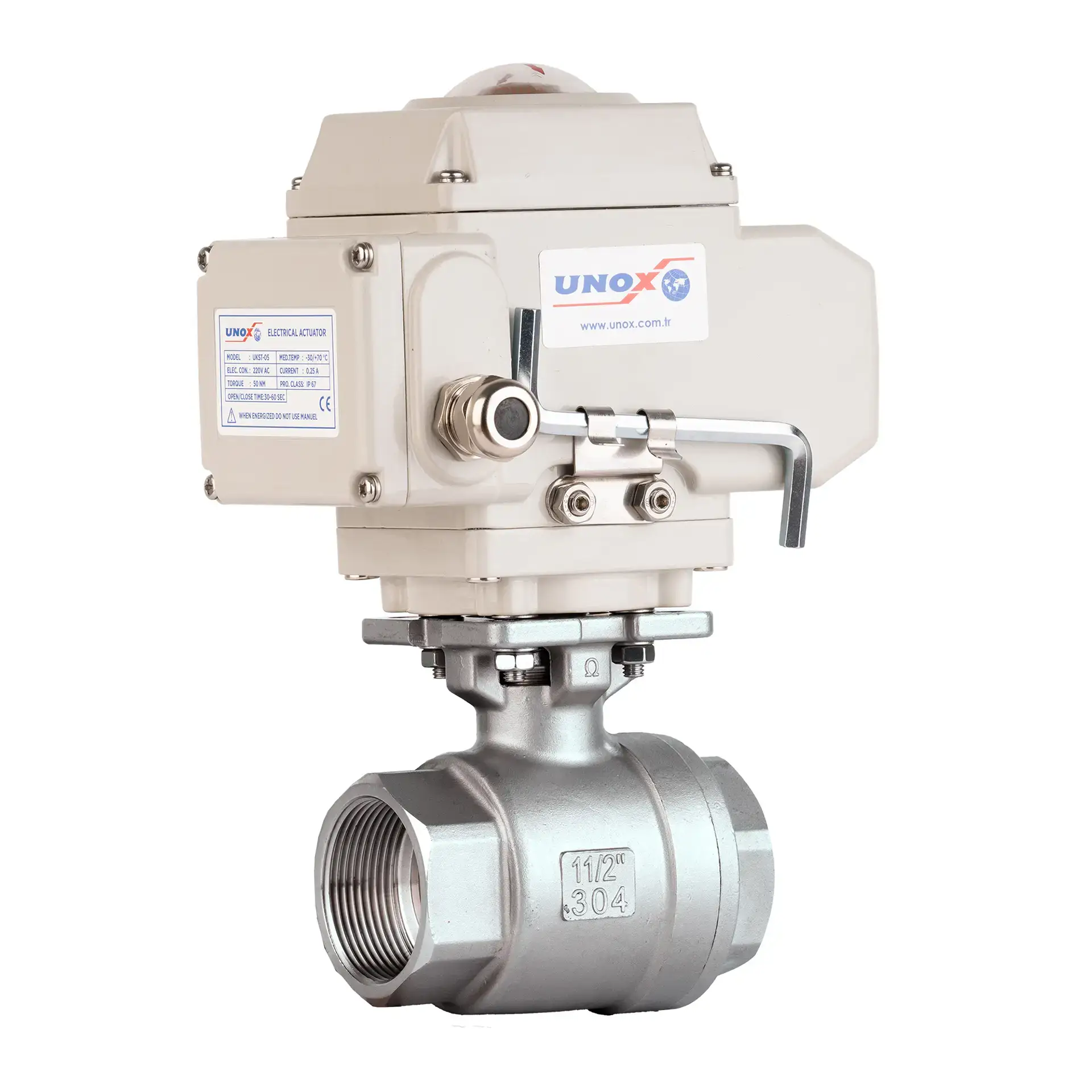

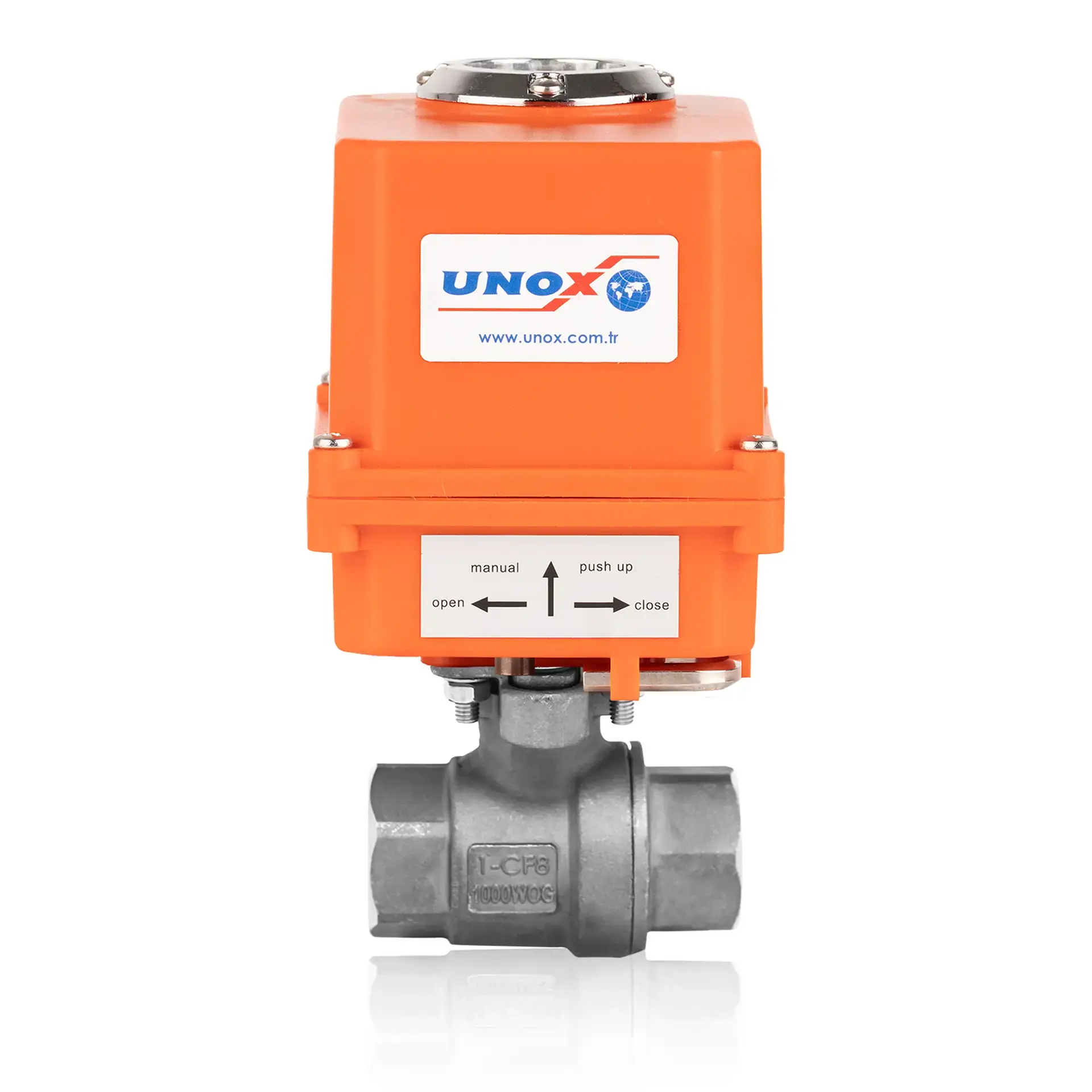

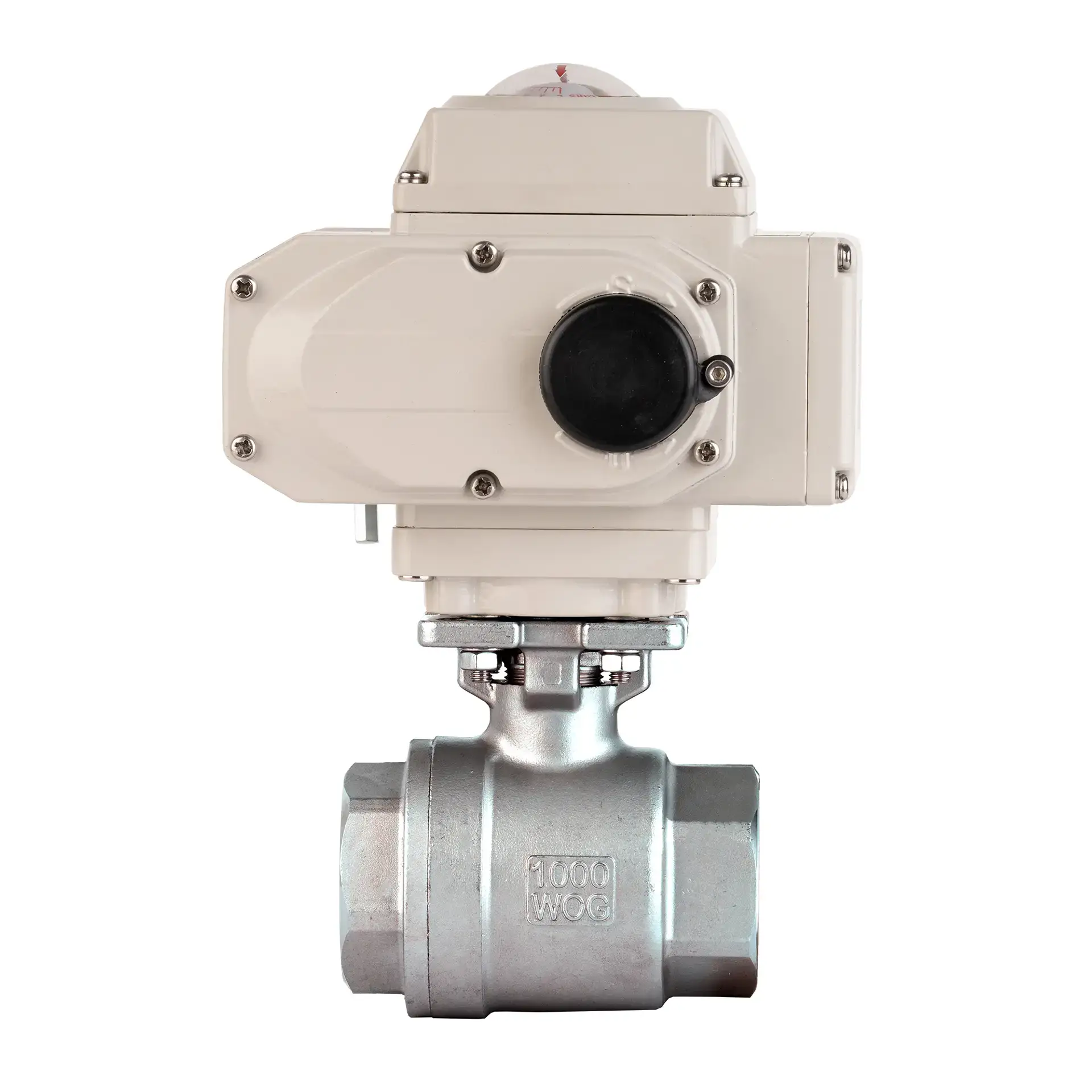

UNOX 2 Pieces Ball Valve With Electric Actuator

The UNOX Stainless Steel Threaded Ball Valve with Electric Actuator – 2 Piece provides reliable, fully automated shut-off and flow control for a wide range of industrial and sanitary applications. Constructed entirely from AISI 304 or AISI 316 stainless steel, this valve offers outstanding corrosion resistance and mechanical durability, making it ideal for chemical processing, food & beverage, water treatment, marine, and HVAC systems.

The two-piece, full-bore design ensures maximum flow with minimal pressure loss, while the precision-machined stainless steel ball and reinforced PTFE/Viton seats guarantee bubble-tight sealing and smooth operation, even in high-cycle service. The BSP or NPT threaded ends enable quick, leak-free installation and simple maintenance, making it a practical choice for new systems or retrofit projects.

Equipped with a robust electric actuator, the valve supports on/off or modulating control. Power options include 24 V DC, 110 V AC, or 220 V AC, allowing easy integration into modern automation systems. The actuator is typically rated IP67 for dust and water protection and includes manual override capability, limit switches, and optional feedback signals (e.g., 4–20 mA or 0–10 V) for precise position monitoring.

Key Features & Specifications

• Valve Body & Ball: 100 % AISI 304 / AISI 316 stainless steel for superior corrosion resistance

• Design: 2-piece, full-bore construction for minimal pressure drop

• Connection: BSP or NPT threaded ends for easy installation and maintenance

• Seats & Seals: PTFE/Viton for chemical compatibility and tight sealing

• Working Pressure: Up to PN63 (~915 psi)

• Operating Temperature: −20 °C to +180 °C (≈ −4 °F to +356 °F)

• Electric Actuator: On/Off or modulating; available in 24 V DC, 110 V AC, or 220 V AC; IP67 protection; optional position feedback

• Applications: Chemical plants, food & beverage, water treatment, HVAC, marine, and industrial automation

With its durable stainless steel construction, easy installation, and automation-ready design, the UNOX 2 Piece Stainless Steel Threaded Ball Valve with Electric Actuator delivers long-lasting, leak-proof, and precise flow control for critical industrial processes.
